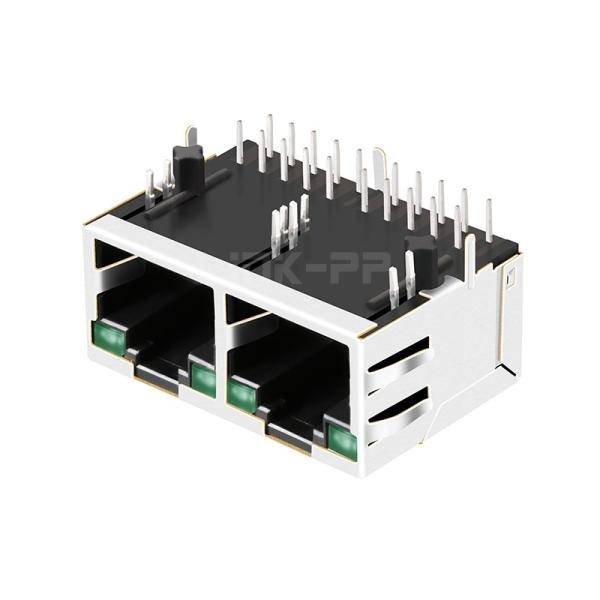

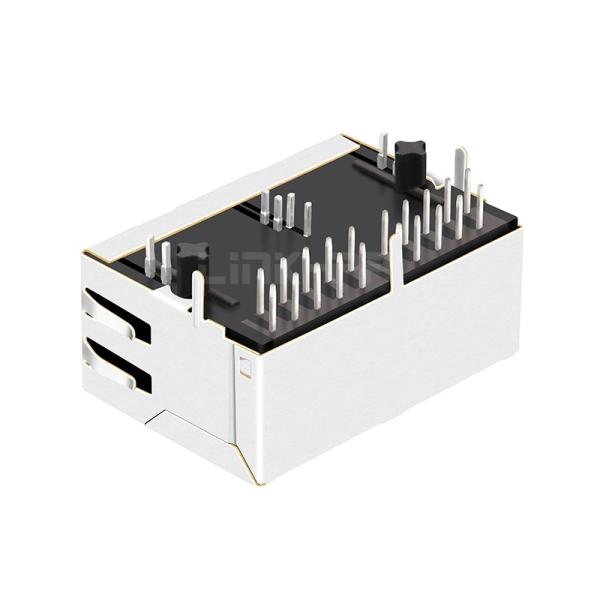

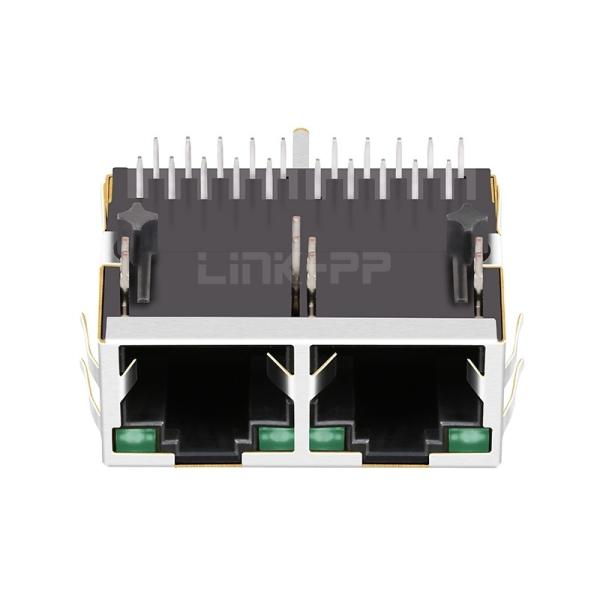

LPJG26843AFNL 100/1000 Base-T Tab Down Green/Green LED 1x2 Port RJ45 Magnetic Connectors
LPJG26843AFNL 100/1000 Base-T Tab Down Green/Green LED 1x2 Port RJ45 Magnetic Connectors
LPJG26843AFNL 100/1000 Base-T Tab Down Green/Green LED 1x2 Port RJ45 Magnetic Connectors
LPJG26843AFNL 100/1000 Base-T Tab Down Green/Green LED 1x2 Port RJ45 Magnetic Connectors
LPJG26843AFNL 100/1000 Base-T Tab Down Green/Green LED 1x2 Port RJ45 Magnetic Connectors
LPJG26843AFNL 100/1000 Base-T Tab Down Green/Green LED 1x2 Port RJ45 Magnetic Connectors
LPJG26843AFNL 100/1000 Base-T Tab Down Green/Green LED 1x2 Port RJ45 Magnetic Connectors
LPJG26843AFNL 100/1000 Base-T Tab Down Green/Green LED 1x2 Port RJ45 Magnetic Connectors
LPJG26843AFNL 100/1000 Base-T Tab Down Green/Green LED 1x2 Port RJ45 Magnetic Connectors
LPJG26843AFNL 100/1000 Base-T Tab Down Green/Green LED 1x2 Port RJ45 Magnetic Connectors
Specifications
Brand Name :
LINK-PP
Model Number :
LPJG26843AFNL
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
Guangdong,China
LINK-PP P/N :
LPJG26843AFNL
Manufacturer :
LINK-PP
Speed :
1000 Base-T
Compatible Brands :
LINK-PP
Application - LAN :
ETHERNET (NON PoE)
Latch :
Down
Pin Type :
THT SOLDER
Shield EMI Tabs :
YES
LED Option :
Green/Green
Temperature :
0℃ to 70℃
Reviews :
55
N.W/pcs :
0.015kg
Package :
Tray
SPQ :
30pcs
Qty/carton :
600pcs
Carton size :
37*30*30cm
G.W/carton :
9kg
Description

LINK-PP LPJG26843AFNL 100/1000 Base-T Integrated Magnetic Connectors for Network Firewall and SMPS (1x2 Port , Tab Down ,Green/Green LED)


The LPJG26843AFNL supports speed 10/100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Network Firewall, SMPS,Server and Switches.


LINK-PP Part Number:
 LPJG26843AFNL Connector Type
 Jack
Part Status
 Active Mounting Type
 Through Hole
Number of Positions/Contacts
 10p8c (RJ45, Ethernet) Application-Lan
 Ethernet(NoN PoE)
Number of Ports
1x2 PortSpeed
10/100/1000 Base-T
Latch
UpCores per Port
8
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green/Green Led

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.531/13.50Package Length (Inches/mm)

0.839/21.30

Package Width (Inches/mm)
1.231/31.28
Temperature
0℃ TO 70℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C
