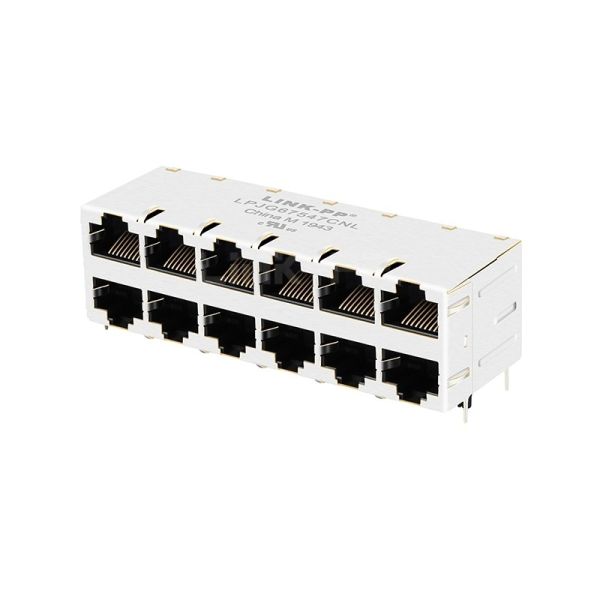

LPJG67537A8NL-2 1000 Base-T 2x6 Port Gigabit Ethernet 8 Core Non-PoE Single Port RJ45 Connector
LPJG67537A8NL-2 1000 Base-T 2x6 Port Gigabit Ethernet 8 Core Non-PoE Single Port RJ45 Connector
LPJG67537A8NL-2 1000 Base-T 2x6 Port Gigabit Ethernet 8 Core Non-PoE Single Port RJ45 Connector
LPJG67537A8NL-2 1000 Base-T 2x6 Port Gigabit Ethernet 8 Core Non-PoE Single Port RJ45 Connector
LPJG67537A8NL-2 1000 Base-T 2x6 Port Gigabit Ethernet 8 Core Non-PoE Single Port RJ45 Connector
LPJG67537A8NL-2 1000 Base-T 2x6 Port Gigabit Ethernet 8 Core Non-PoE Single Port RJ45 Connector
LPJG67537A8NL-2 1000 Base-T 2x6 Port Gigabit Ethernet 8 Core Non-PoE Single Port RJ45 Connector
LPJG67537A8NL-2 1000 Base-T 2x6 Port Gigabit Ethernet 8 Core Non-PoE Single Port RJ45 Connector
LPJG67537A8NL-2 1000 Base-T 2x6 Port Gigabit Ethernet 8 Core Non-PoE Single Port RJ45 Connector
LPJG67537A8NL-2 1000 Base-T 2x6 Port Gigabit Ethernet 8 Core Non-PoE Single Port RJ45 Connector
Specifications
Brand Name :
LINK-PP
Model Number :
LPJG67537A8NL-2
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
Guangdong,China
LINK-PP P/N :
LPJG67537A8NL-2
Manufacturer :
LINK-PP
Speed :
1000 Base-T
Compatible Brands :
LINK-PP
Shield EMI Tabs :
YES
Pin Type :
THT SOLDER
LED Option :
Green/Green&Yellow
Application - LAN :
ETHERNET (NON PoE)
Temperature :
0℃ to 70℃
Reviews :
4
N.W/pcs :
0.102kg
Package :
Tray
SPQ :
6pcs
Qty/carton :
108pcs
Carton size :
37*30*30cm
G.W/carton :
11kg
Description

8P8C 2x6 Port RJ45 Connector with 10/100/1000 Base-T Integrated Magnetics, Green/Green&Yellow LED, RoHS

LINK-PP Part Number:
 LPJG67537A8NL-2 Connector Type
 Jack
Part Status
 Active Mounting Type
 Through Hole
Number of Positions/Contacts
 8p8c (RJ45, Ethernet) Application-Lan
 Ethernet(NoN PoE)
Number of Ports
2x6 PortSpeed
10/100/1000 Base-T
Latch
BothCores per Port
8
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green/Green&Yellow Led

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
1.015/25.79Package Length (Inches/mm)

1.116/28.35

Package Width (Inches/mm)
3.430/87.12
Temperature
0℃ TO +70℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C


































Product tags

cat6a connector rj45

,

rj45 connector cat5e

,

cat6a rj45 connector
