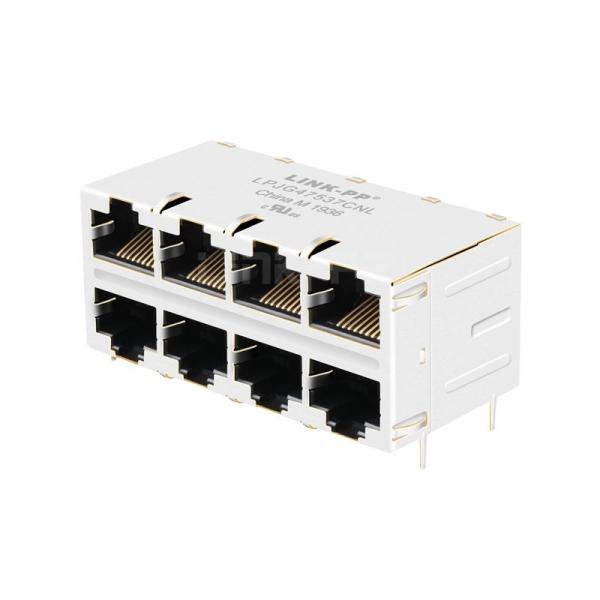

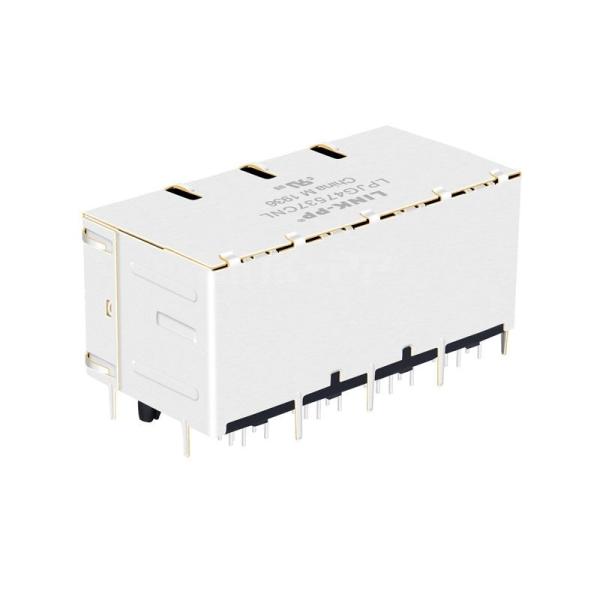

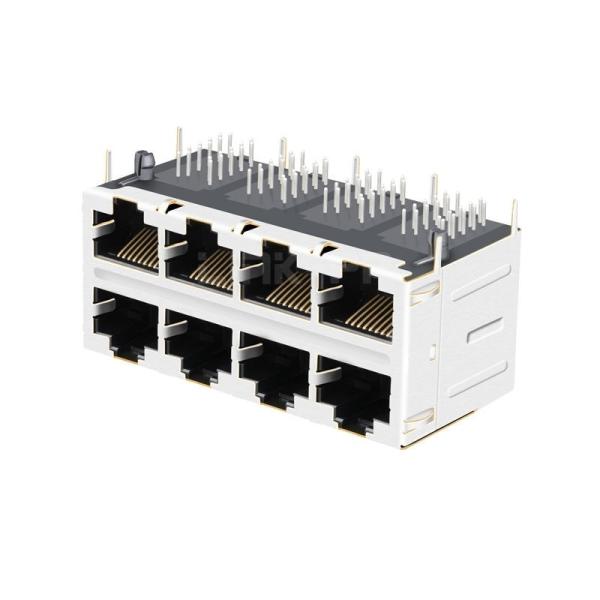

Belfuse 0833-2X4R-54-F Compatible LINK-PP LPJG47537CNL 100/1000 Base-T Without Led 2x4 Port Shielded RJ45 Board Mount Connector
Belfuse 0833-2X4R-54-F Compatible LINK-PP LPJG47537CNL 100/1000 Base-T Without Led 2x4 Port Shielded RJ45 Board Mount Connector
Belfuse 0833-2X4R-54-F Compatible LINK-PP LPJG47537CNL 100/1000 Base-T Without Led 2x4 Port Shielded RJ45 Board Mount Connector
Belfuse 0833-2X4R-54-F Compatible LINK-PP LPJG47537CNL 100/1000 Base-T Without Led 2x4 Port Shielded RJ45 Board Mount Connector
Belfuse 0833-2X4R-54-F Compatible LINK-PP LPJG47537CNL 100/1000 Base-T Without Led 2x4 Port Shielded RJ45 Board Mount Connector
Belfuse 0833-2X4R-54-F Compatible LINK-PP LPJG47537CNL 100/1000 Base-T Without Led 2x4 Port Shielded RJ45 Board Mount Connector
Belfuse 0833-2X4R-54-F Compatible LINK-PP LPJG47537CNL 100/1000 Base-T Without Led 2x4 Port Shielded RJ45 Board Mount Connector
Belfuse 0833-2X4R-54-F Compatible LINK-PP LPJG47537CNL 100/1000 Base-T Without Led 2x4 Port Shielded RJ45 Board Mount Connector
Belfuse 0833-2X4R-54-F Compatible LINK-PP LPJG47537CNL 100/1000 Base-T Without Led 2x4 Port Shielded RJ45 Board Mount Connector
Belfuse 0833-2X4R-54-F Compatible LINK-PP LPJG47537CNL 100/1000 Base-T Without Led 2x4 Port Shielded RJ45 Board Mount Connector
Specifications
Brand Name :
LINK-PP
Model Number :
LPJG47537CNL
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
Guangdong,China
Compatible :
Belfuse
Competitor P/N :
0833-2X4R-54-F
Speed :
1000 Base-T
Compatible Brands :
Belfuse
Shield EMI Tabs :
Both
Pin Type :
THT SOLDER
LED Option :
No LEDs
Application - LAN :
ETHERNET (NON PoE)
Temperature :
0℃ to 70℃
Questions :
1
Reviews :
10
N.W/pcs :
0.059kg
Package :
Tray
SPQ :
12pcs
Qty/carton :
216pcs
Carton size :
37*30*30cm
G.W/carton :
12.7kg
Description

Belfuse 0833-2X4R-54-F Compatible LINK-PP LPJG47537CNL 100/1000 Base-T Shielded RJ45 Board Mount Connector for Ethernet Control and Monitoring System (2x4 Port, Without Led)


The LPJG47537CNL supports speed 100/1000 Base-T, It is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001,ISO14001 standards.It can be used to support application, such as Monitoring System, Network Firewall, Switches and Server.


LINK-PP Part Number:
 LPJG47537CNL Belfuse Part Number 0833-2X4R-54-F
Part Status
 Active Connector Type
 Jack
Number of Positions/Contacts
 10p10c (RJ45, Ethernet) Application-Lan
 Ethernet(NoN PoE)
Number of Ports
2x4 Port
Speed
10/100/1000 Base-T
Latch
BothCores per Port
8
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Without Led

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
1.015/25.79Package Length (Inches/mm)

1.116/28.35

Package Width (Inches/mm)
2.330/59.18
Temperature
0℃ TO 70℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C
