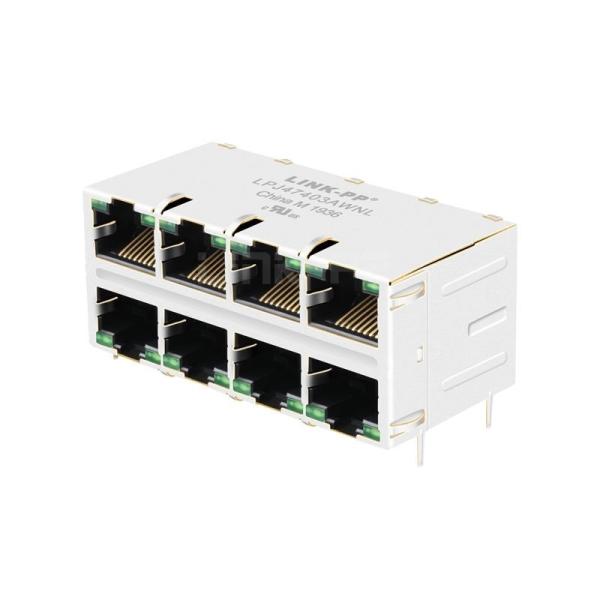

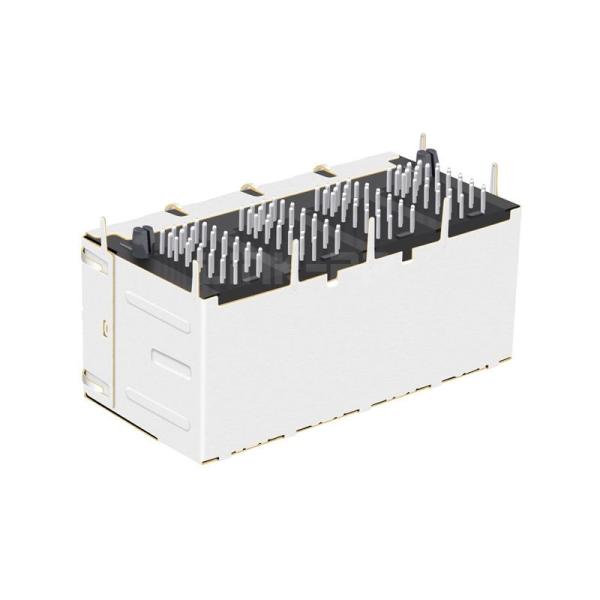

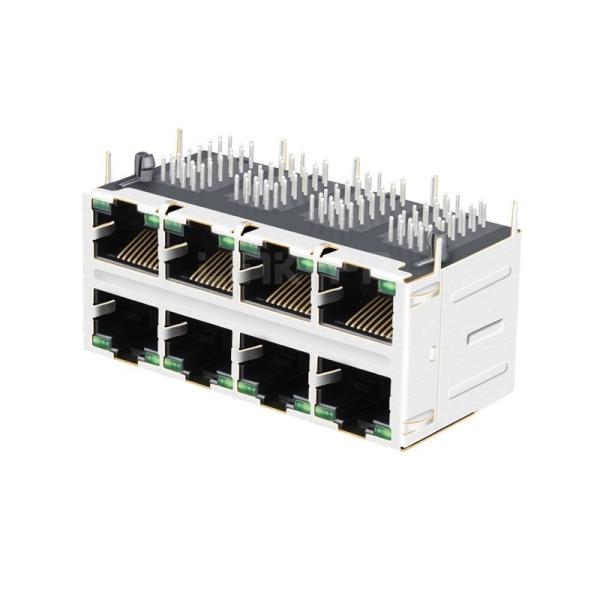

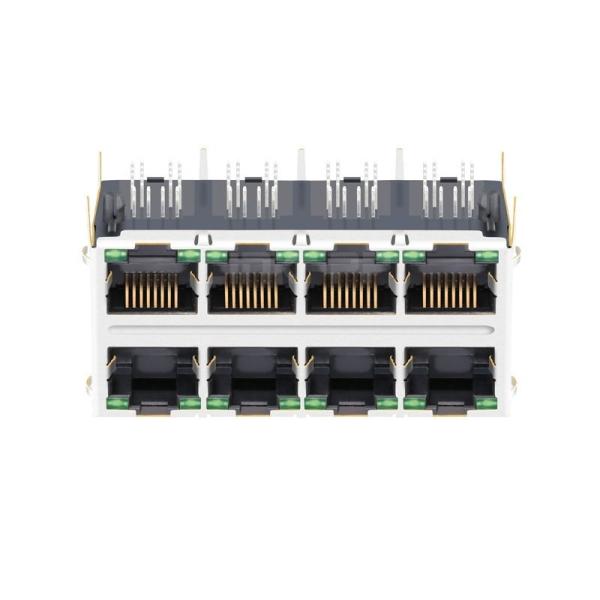

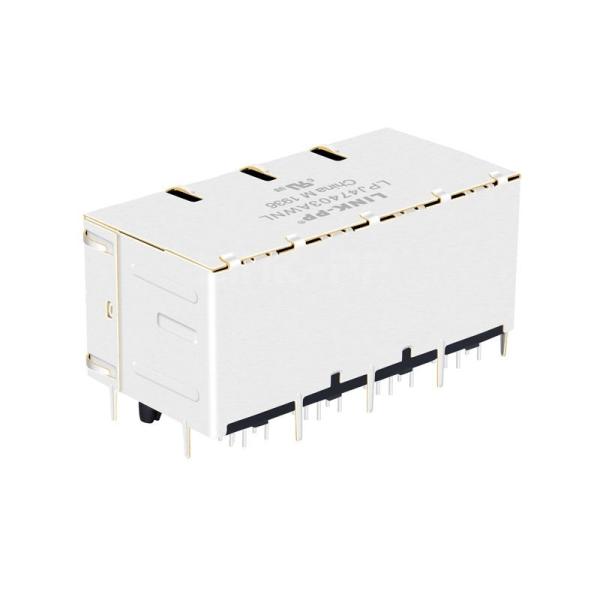

LPJ47403AWNL 10/100 Base-T 2X4 Port Ethernet RJ45 Jacks Tab Up Green/Green LED
LPJ47403AWNL 10/100 Base-T 2X4 Port Ethernet RJ45 Jacks Tab Up Green/Green LED
LPJ47403AWNL 10/100 Base-T 2X4 Port Ethernet RJ45 Jacks Tab Up Green/Green LED
LPJ47403AWNL 10/100 Base-T 2X4 Port Ethernet RJ45 Jacks Tab Up Green/Green LED
LPJ47403AWNL 10/100 Base-T 2X4 Port Ethernet RJ45 Jacks Tab Up Green/Green LED
LPJ47403AWNL 10/100 Base-T 2X4 Port Ethernet RJ45 Jacks Tab Up Green/Green LED
LPJ47403AWNL 10/100 Base-T 2X4 Port Ethernet RJ45 Jacks Tab Up Green/Green LED
LPJ47403AWNL 10/100 Base-T 2X4 Port Ethernet RJ45 Jacks Tab Up Green/Green LED
LPJ47403AWNL 10/100 Base-T 2X4 Port Ethernet RJ45 Jacks Tab Up Green/Green LED
LPJ47403AWNL 10/100 Base-T 2X4 Port Ethernet RJ45 Jacks Tab Up Green/Green LED
Specifications
Brand Name :
LINK-PP
Model Number :
LPJ47403AWNL
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
Guangdong,China
LINK-PP P/N :
LPJ47403AWNL
Manufacturer :
LINK-PP
Speed :
10/100 Base-T
Compatible Brands :
LINK-PP
Shield EMI Tabs :
Both
Pin Type :
THT SOLDER
LED Option :
Green/ Green
Application - LAN :
ETHERNET (NON PoE)
Temperature :
-40℃ to +85℃
Questions :
1
Reviews :
10
N.W/pcs :
0.051kg
Package :
Tray
SPQ :
12pcs
Qty/carton :
216pcs
Carton size :
37*30*30cm
G.W/carton :
11kg
Description

2x4 Port Ethernet RJ45 Jack with 10/100 Base-T Integrated Magnetics, Green/Green LED,Tab Up,RoHS

LINK-PP Part Number:
 LPJ47403AWNL Connector Type
 Jack
Part Status
 Active Mounting Type
 Through Hole
Number of Positions/Contacts
 8p8c (RJ45, Ethernet) Application-Lan
 Ethernet(NoN PoE)
Number of Ports
2x4 Port
Speed
10/100 Base-T
Latch
BothCores per Port
4
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green/Green Led

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
1.015/25.79Package Length (Inches/mm)

1.116/28.35

Package Width (Inches/mm)
2.330/59.18
Temperature
-40℃ TO 85℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C
