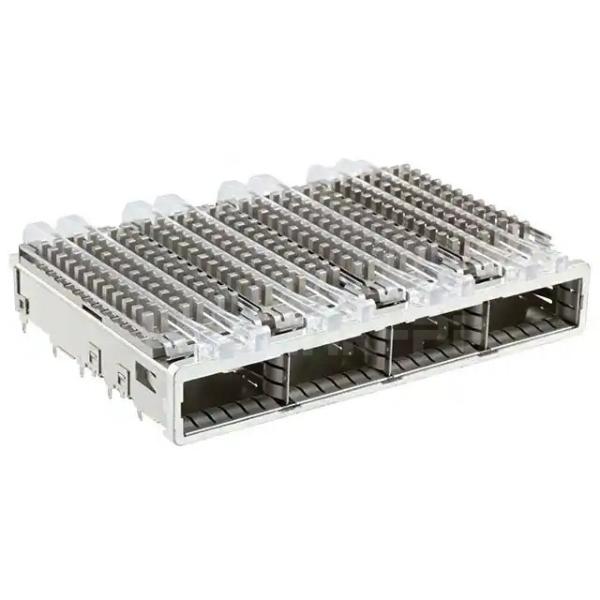

TE 2007626-1 QSFP+ Cage Assembly 1 x 4 Port With Heat Sink Included Lightpipe 14 Gb/s
TE 2007626-1 QSFP+ Cage Assembly 1 x 4 Port With Heat Sink Included Lightpipe 14 Gb/s
TE 2007626-1 QSFP+ Cage Assembly 1 x 4 Port With Heat Sink Included Lightpipe 14 Gb/s
TE 2007626-1 QSFP+ Cage Assembly 1 x 4 Port With Heat Sink Included Lightpipe 14 Gb/s
Specifications
Brand Name :
LINK-PP
Model Number :
2007626-1
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
Guangdong,China
Compatible :
TE
Competitor P/N :
2007626-1
Manufacturer :
LINK-PP
Description

QSFP+ , Cage Assembly, 1 x 4, Customer Applied Gasket, Included Lightpipe, Standard, Data Rate (Max) 14 Gb/s, 4 Port

Part Number:
 2007626-1 Part Status
 Active
Connector Style
 Cage, Ganged (1 x 4) with Heat Sink Connector Type
 QSFP+
Heat Sink Height
6.5mm[.256in]
Mounting Type
Through Hole, Right Angle
Termination
Press-FitFeatures
EMI Shielded

Port Matrix Configuration
1x4 PortsNumber of Ports
4
Number of Rear EONs per Port Column
1Data Rate (Max)(Gb/s)
14
Operating Temperature Range
-55 – 105°C
Pluggable I/O Applications
SFP+ Stacked Belly-to-Belly
Circuit Application
SignalEMI Containment Feature Type
Customer Applied Gasket

Included Lightpipe
YesCage MaterialNickel Silver

PCB Thickness (Recommended)
1.45mm[.057in]Tail Length
2.2mm[.086in]
