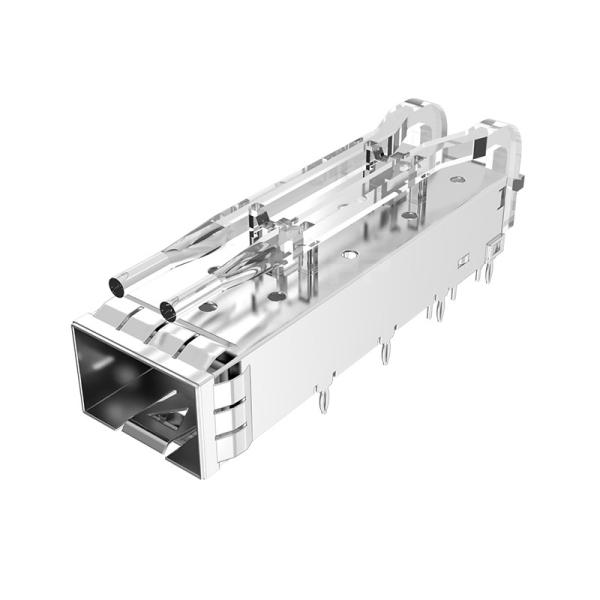

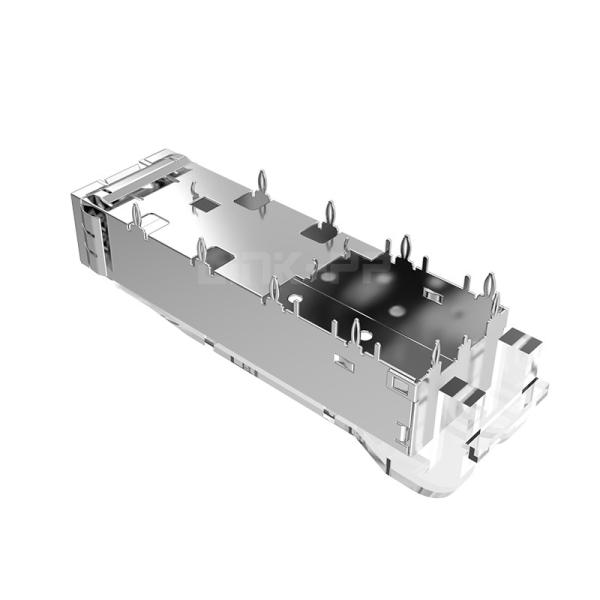

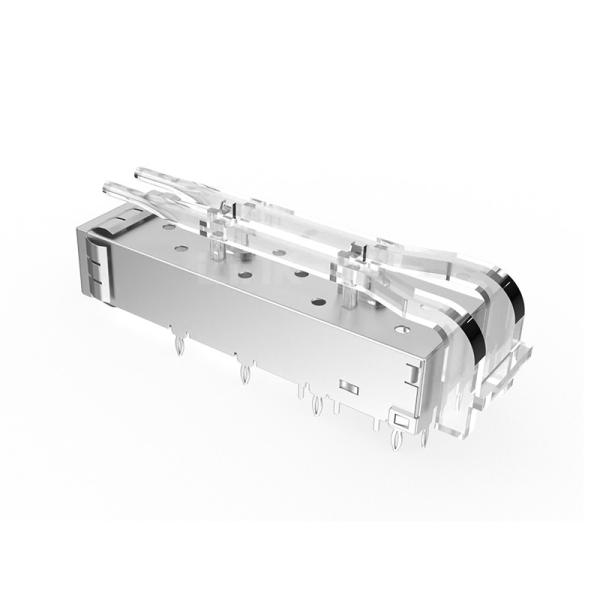

LINK-PP LP11BC02301 1x1 Port SFP+ Cage With Light pipe
LINK-PP LP11BC02301 1x1 Port SFP+ Cage With Light pipe
LINK-PP LP11BC02301 1x1 Port SFP+ Cage With Light pipe
LINK-PP LP11BC02301 1x1 Port SFP+ Cage With Light pipe
LINK-PP LP11BC02301 1x1 Port SFP+ Cage With Light pipe
LINK-PP LP11BC02301 1x1 Port SFP+ Cage With Light pipe
LINK-PP LP11BC02301 1x1 Port SFP+ Cage With Light pipe
LINK-PP LP11BC02301 1x1 Port SFP+ Cage With Light pipe
LINK-PP LP11BC02301 1x1 Port SFP+ Cage With Light pipe
LINK-PP LP11BC02301 1x1 Port SFP+ Cage With Light pipe
Specifications
Brand Name :
LINK-PP
Model Number :
LP11BC02301
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
Guangdong,China
LINK-PP P/N :
LP11BC02301
Manufacturer :
LINK-PP
Pluggable I/O Product Type :
Cage
EMI Containment Feature Type :
Internal/External EMI Springs
Lightpipe Options :
With Lightpipe
Termination Method to Printed Circuit Board :
Through Hole - Press-Fit
Operating Temperature Range (°C) :
-55 – 85
Description

LINK-PP LP11BC02301 1x1 Port SFP+ Cage With Light pipe

LINK-PP Part Number:
 LP11BC02301 Part Status
 Active
Connector Style
 Cage Connector Type
 SFP+
Cage
COPPER ALLOY,Ni PL ATEDTHICKNESS
0.25mm
LIGHT PIPE
CLEAR POLYCARBONATE
Mounting Type
Through Hole, Right Angle
Port Matrix Configuration
1x1 PortsNumber of Ports
1
Operating Temperature Range
-55 – 85°C
PCB Mounting Style
Through Hole - Press-Fit
Circuit Application
SignalEMI Containment Feature Type
EMI Springs

Included Lightpipe
YesHeight (Inches/mm)9.70/0.382
Length (Inches/mm)
53.20/2.094 Width (Inches/mm)
14.1/0.555
