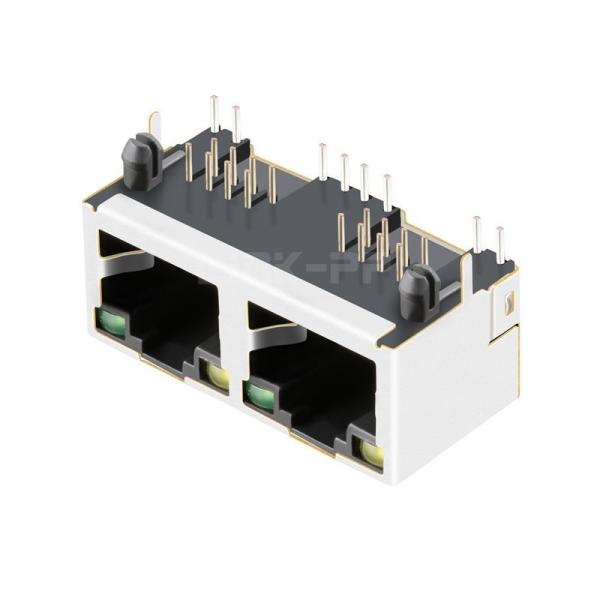

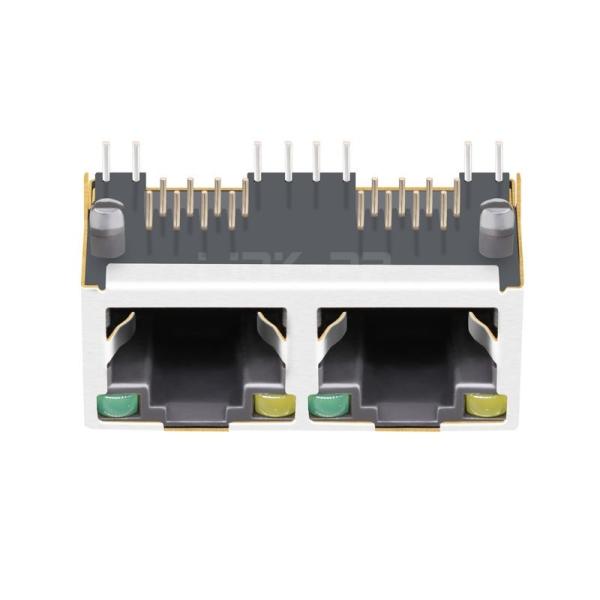

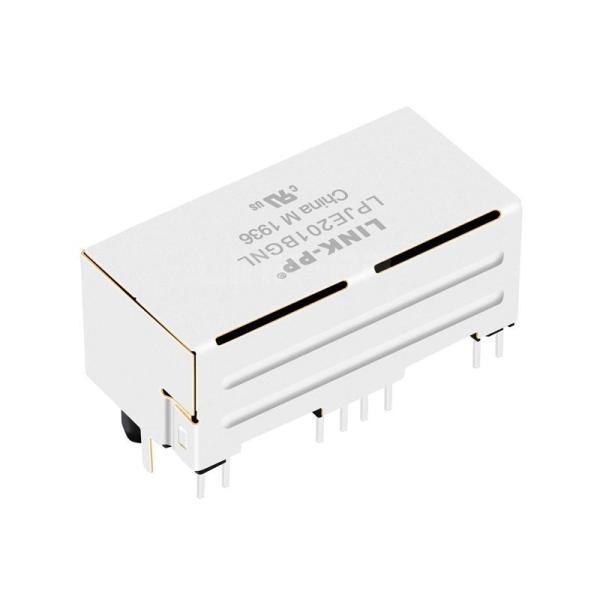

LPJE201BGNL Tab Down Yellow/Green LED 1X2 Port RJ45 Magnetic Jack without Integrated Magnetics
LPJE201BGNL Tab Down Yellow/Green LED 1X2 Port RJ45 Magnetic Jack without Integrated Magnetics
LPJE201BGNL Tab Down Yellow/Green LED 1X2 Port RJ45 Magnetic Jack without Integrated Magnetics
LPJE201BGNL Tab Down Yellow/Green LED 1X2 Port RJ45 Magnetic Jack without Integrated Magnetics
LPJE201BGNL Tab Down Yellow/Green LED 1X2 Port RJ45 Magnetic Jack without Integrated Magnetics
LPJE201BGNL Tab Down Yellow/Green LED 1X2 Port RJ45 Magnetic Jack without Integrated Magnetics
LPJE201BGNL Tab Down Yellow/Green LED 1X2 Port RJ45 Magnetic Jack without Integrated Magnetics
LPJE201BGNL Tab Down Yellow/Green LED 1X2 Port RJ45 Magnetic Jack without Integrated Magnetics
LPJE201BGNL Tab Down Yellow/Green LED 1X2 Port RJ45 Magnetic Jack without Integrated Magnetics
LPJE201BGNL Tab Down Yellow/Green LED 1X2 Port RJ45 Magnetic Jack without Integrated Magnetics
Specifications
Brand Name :
LINK-PP
Model Number :
LPJE201BGNL
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
Guangdong,China
LINK-PP P/N :
LPJE201BGNL
Manufacturer :
LINK-PP
Compatible Brands :
LINK-PP
Latch :
Up
Pin Type :
THT SOLDER
LED Option :
Yellow/Green
Shield EMI Tabs :
NO
Temperature :
-40℃ to +85℃
Reviews :
63
N.W/pcs :
0.009kg
Package :
Tray
SPQ :
40pcs
Qty/carton :
2000pcs
Carton size :
58.5*33*25cm
G.W./carton :
18.5kg
Description

RJ45 Magnetic Jack without Integrated Magnetics for Entrance Guard System and Industrial PC(1X2 Port,Tab Down,Yellow/Green LED)


The LPJE201BGNL supports speed 10/100 Base-T, it is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001, ISO14001 standards. It can be used to support application, such as Entrance Guard System,Industrial PC, router and Switch.


LINK-PP Part Number:
 LPJE201BGNL Connector Type
 Jack
Part Status
 Active Mounting Type
 Through Hole
Number of Positions/Contacts
 8p8c (RJ45, Ethernet) Application-Lan
 -
Number of Ports
1x2 PortSpeed
-
Latch
DownCores per Port
-
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithoutLED Option

Yellow/Green Led

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.516/13.10Package Length (Inches/mm)

0.620/15.75

Package Width (Inches/mm)
1.270/32.25
Temperature
-40℃ TO 85℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C
