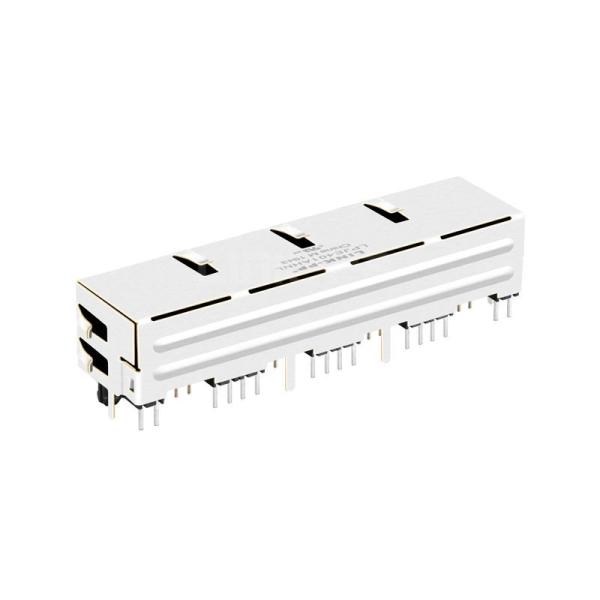

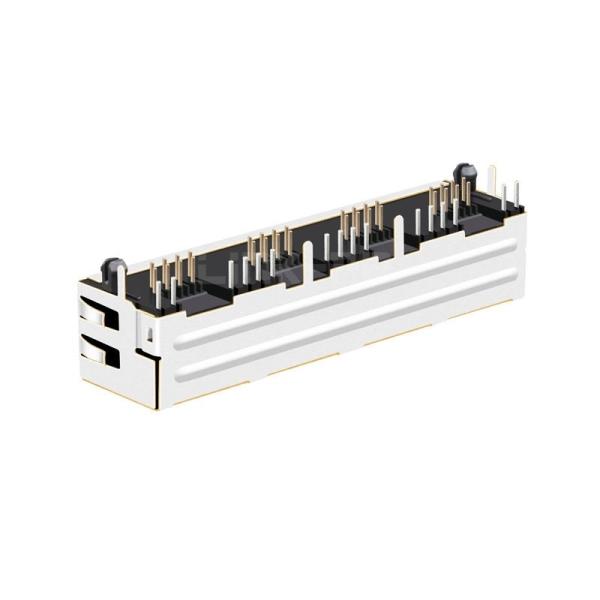

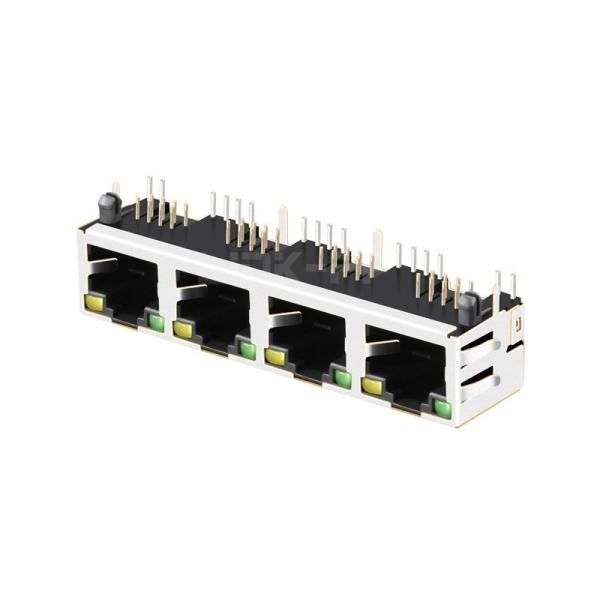

Pulse E5J88-34CJ24-L Compatible LINK-PP LPJE401AHNL Tab Up Green/Yellow LED 1X4 Port Lan Jack RJ45 without Integrated Magnetics
Pulse E5J88-34CJ24-L Compatible LINK-PP LPJE401AHNL Tab Up Green/Yellow LED 1X4 Port Lan Jack RJ45 without Integrated Magnetics
Pulse E5J88-34CJ24-L Compatible LINK-PP LPJE401AHNL Tab Up Green/Yellow LED 1X4 Port Lan Jack RJ45 without Integrated Magnetics
Pulse E5J88-34CJ24-L Compatible LINK-PP LPJE401AHNL Tab Up Green/Yellow LED 1X4 Port Lan Jack RJ45 without Integrated Magnetics
Pulse E5J88-34CJ24-L Compatible LINK-PP LPJE401AHNL Tab Up Green/Yellow LED 1X4 Port Lan Jack RJ45 without Integrated Magnetics
Pulse E5J88-34CJ24-L Compatible LINK-PP LPJE401AHNL Tab Up Green/Yellow LED 1X4 Port Lan Jack RJ45 without Integrated Magnetics
Pulse E5J88-34CJ24-L Compatible LINK-PP LPJE401AHNL Tab Up Green/Yellow LED 1X4 Port Lan Jack RJ45 without Integrated Magnetics
Pulse E5J88-34CJ24-L Compatible LINK-PP LPJE401AHNL Tab Up Green/Yellow LED 1X4 Port Lan Jack RJ45 without Integrated Magnetics
Pulse E5J88-34CJ24-L Compatible LINK-PP LPJE401AHNL Tab Up Green/Yellow LED 1X4 Port Lan Jack RJ45 without Integrated Magnetics
Pulse E5J88-34CJ24-L Compatible LINK-PP LPJE401AHNL Tab Up Green/Yellow LED 1X4 Port Lan Jack RJ45 without Integrated Magnetics
Specifications
Brand Name :
LINK-PP
Model Number :
LPJE401AHNL
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
Guangdong,China
Compatible :
Pulse
Competitor P/N :
E5J88-34CJ24-L
Compatible Brands :
Pulse
Latch :
Up
Pin Type :
THT SOLDER
LED Option :
Green/Yellow
Shield EMI Tabs :
YES
Temperature :
-40℃ to +85℃
Reviews :
8
N.W/pcs :
0.017kg
Package :
Tray
SPQ :
20pcs
Qty/carton :
1000pcs
Carton size :
57*37*25cm
G.W/carton :
17kg
Description

Pulse E5J88-34CJ24-L Compatible LINK-PP LPJE401AHNL Lan Jack RJ45 without Integrated Magnetics for SMPS and Industrial PC(1X4 Port,Tab Up,Green/Yellow LED)


The LPJE401AHNL supports speed 10/100 Base-T, it is compliant to IEEE 802.3, UL, Reach, RoHs, ISO19001, ISO14001 standards. It can be used to support application, such as SMPS,Industrial PC, switch and router.


LINK-PP Part Number:
 LPJE401AHNL Pulse Part Number
 E5J88-34CJ24-L
Part Status
 Active Connector Type
 Jack
Number of Positions/Contacts
 8p8c (RJ45, Ethernet) Application-Lan
 -
Number of Ports
1x4 PortSpeed
-
Latch
UpCores per Port
-
Orientation
90° Angle (Right)PCB Mount Angle

SIDE ENTRY

Shield EMI Tabs
WithLED Option

Green/Yellow Leds

PCB
FR4PCB Retaining Post

T POST

Package Height (Inches/mm)
0.516/13.10Package Length (Inches/mm)

0.620/15.75

Package Width (Inches/mm)
2.510/63.75
Temperature
-40℃ TO 85℃
Bst Circuit
YesAutomDX

YES

Diodes
NoContact Mating Area Plating

GOLD 6u"/15u"/30u"

Turns Ratio RX/TX
1CT:1CTConfiguration RX/TX

T,C
