Electrical Performance
1. Rated current: 16Amp
2. Operating voltage: 250V AC
3. Insulation resisitance:>1000MΩ
4. Therminal temperature rise:<50K
5. Withstand voltage:2000V
6. Working temperature: -30°C ~+50°C
7. IEC 62196-2 EV Charger Cable

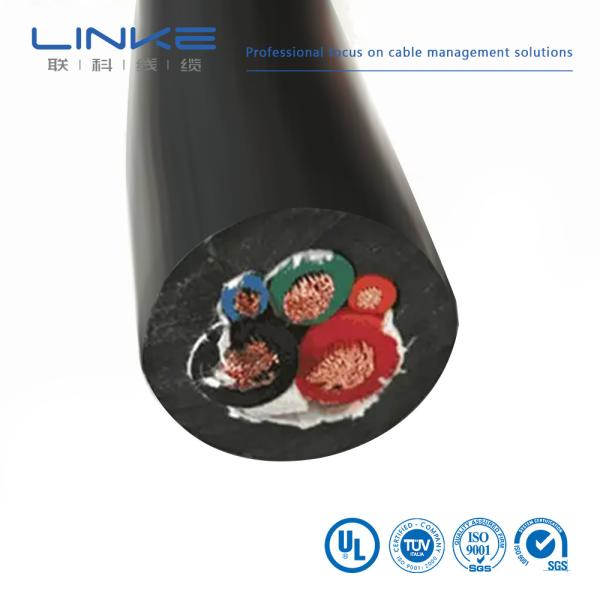

3G2.5mm²+2*0.5mm² EV Wire AC EV Cable Leads
Parameters
● Model: 16A wire for EV charging
● SPEC: 3*2.5mm²+2*0.5mm²
● Reference Standard: TUV 2PfG 1908
● Reted current: 16A
● Working voltage: 450/750V AC
● Bebding Radius: ≥ 8D
● Retarding Test: IEC60332-1
● Smoke Density: IEC61034, EN50268-2
● Stewed acid gas release quantity: IEC670754-1, EN50267-2-1
● Heat, cold, wear-resisting to ozone ultraviolet light
● Working temperature: -45°C ~+ 125°C
● CE, TUV, UL approved

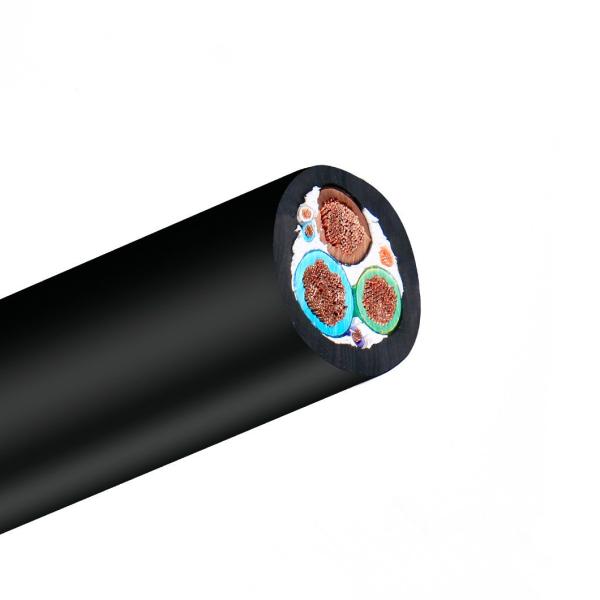

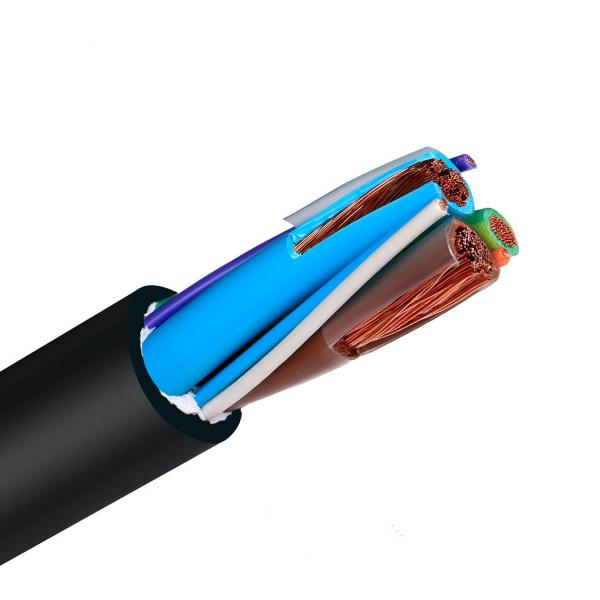

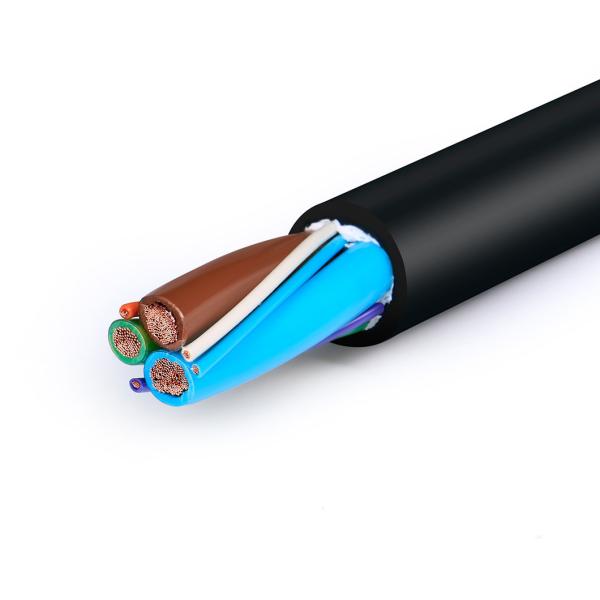

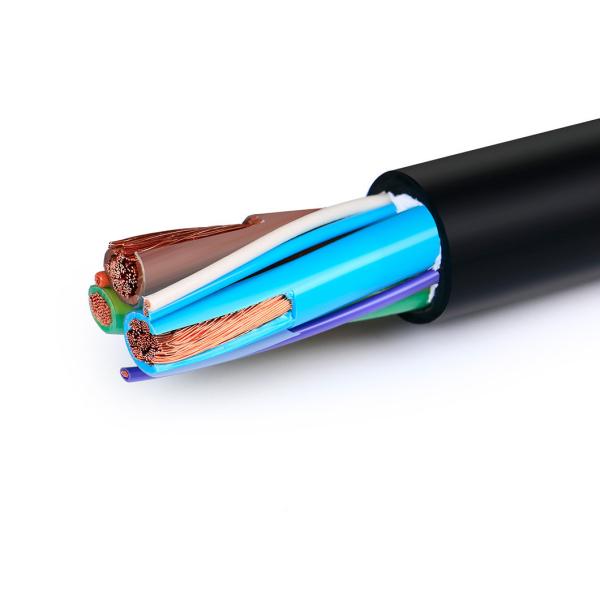

16A Single Phase Charging Wire for EV (Electric Vehicle) ● EV cable is a kind of flexible cable to conect electric vehicle with charging pile or power socket, high quality oxygen-free copper conductor ensures excellent conductive effect; TPE insulation material is soft and high strength; EV Cable.
16A Single Phase Charging Wire for EV (Electric Vehicle)
● EV cable is a kind of flexible cable to conect electric vehicle with charging pile or power socket, high quality oxygen-free copper conductor ensures excellent conductive effect; TPE insulation material is soft and high strength; Cable sheath is made from high-performance TPE, which possess characteristic as weatherability, high&low temperature resistance, rub resistance, etc.
● This cable is soft, elastic, flex index and won’t harden in low temperature. Our company have passed TUV 2PFG 1908 certification.
| Physical Properties 物理性能 |
| Conductor (导 体) | Conductor Size/导体尺寸 | | EV07EE-H 3G2.5+2X0.5mm2 |
| Construction Item | | 2.5mm2 | 0.5mm2 |
| Construction/构造 | mm | 140/0.15±0.008 | 28/0.15±0.008 |
| Material/材质 | — | Bare Copper Wire |
| O.D/绞合外径 | mm | 2.40 | 0.91 |
| Insulation (绝 缘) | Material/材质 | mm | TPE |
| Avg.Thickness/标准厚度 | mm | 0.90 | 0.60 |
| Min.Thickness/最小厚度 | mm | 0.71 | 0.45 |
| Insulation O.D/线径 | — | 4.2±0.15mm | 2.2±0.15mm |
| Color/颜色 | | Brown, Blue, Yellow/Green | Black,Green |
| Coverage | | % | Non-woven fabric,100% Coverage wit!, 25% Overlapping |
| Jacket (护 套) | Material/材质 | — | TPE |
| Avg.Thickness/标准厚度 | mm | 1.70 |
| Min.Thick/最小厚度 | mm | 1.50 |
| Cable O.D/成品线径 | mm | 12.2±0.2mm |
| Color/颜色 | — | Orange or Black |
| Marking (印字) | | |
| Electric Characters 电气性能 |
| Reference Standard | V | TüV 2 PfG 1908/05.12 |
| Rated Voltage/额定电压: | V | AC 450/750V |
| Temperature Rating/温度等级: | ℃ | -40℃ ~ +125℃ |
| Max.Conductor Resistance at 20℃ /导体电阻: | Ω/KM | 2.5mm2 ≤7.98 Ω/KM & 0.5mm2 ≤39.0 Ω/KM Max at 20℃ |
| Reference Current/参考电流 | A | 16A |
| Cold Bend Test/冷弯测试: | — | ‘-40±2′C x 4H No Breakdown |
| Tensile Strength /抗张强度: | N/mm2 | Insulation≥10N/mm2 ,Sheath≥10N/mm2 |
| Flame test/阻燃性 | — | IEC 60332-1 |
| Heat ,Cold,Wear,UV Resistance,Waterproof and Higher the mechanical strength |
