Sustainable Energy Storage Power Cable High Voltage With Copper Conductor
Sustainable Energy Storage Power Cable High Voltage With Copper Conductor
Sustainable Energy Storage Power Cable High Voltage With Copper Conductor
Sustainable Energy Storage Power Cable High Voltage With Copper Conductor
Sustainable Energy Storage Power Cable High Voltage With Copper Conductor
Sustainable Energy Storage Power Cable High Voltage With Copper Conductor
Sustainable Energy Storage Power Cable High Voltage With Copper Conductor
Sustainable Energy Storage Power Cable High Voltage With Copper Conductor
Sustainable Energy Storage Power Cable High Voltage With Copper Conductor
Sustainable Energy Storage Power Cable High Voltage With Copper Conductor
Sustainable Energy Storage Power Cable High Voltage With Copper Conductor
Sustainable Energy Storage Power Cable High Voltage With Copper Conductor
Specifications
Model NO. :
Energy Storage Cable
AMP :
1200A
Color :
Customized
Customized :
Customized
Plug Type :
IEC 62196-2 (Type 2), SAE J1772 Type 1
Application :
Automotive, Appliance Equipment, Medical Equipment
Conductor Material :
Copper
Insulation :
Rubber, Silica, PE
Transport Package :
Roll
Specification :
80*80*69CM
Trademark :
LINKE
Origin :
China
HS Code :
94054090
Supply Ability :
50000m/day
Package Size :
80.00cm * 80.00cm * 69.00cm
Package Gross Weight :
250.000kg
After-sales Service :
1year
Warranty :
1year
Certification :
3C /TPU/ UL758,ROHS, REACH,CE: ISO9001-2015(所有产品);ISO13485(医疗器械行业);IATF16949(汽车行业)
Samples :
US$ 1000/PCS 1 PCS(Min.Order) |
Customization :
Available
Shipping Cost :
about shipping cost and estimated delivery time.
  :
Initial Payment Full Payment
Currency :
US$
Return&refunds :
You can apply for a refund up to 30 days after receipt of the products.
Place of Origin :
Guangdong, China
Brand Name :
Linke
MOQ :
1000m
Price :
Negotiable
Packaging Details :
According to requirement
Delivery Time :
7-15天
Payment Terms :
Advance 30% deposit and ship after receiving 70% final payment
Core :
Multiple
conductor material :
copper/Tinned Copper
Conductor Type :
Twisted wire
Exterior material :
customize：PVC、PE、LSFOH、silicone rubber
insulating materials :
customize:PVC、PE 、XLPE、EPR、SIR
specifications :
0.1-450mm²
rated voltage :
300-600V
rated temperature :
-60± 200℃
colour :
customize
type :
insulated
package :
By roll
Lead Time :
7-15days
Description

Energy Storage High Voltage Wire Harness With Sustainable Design And Copper Conductor

Sustainable High Voltage Wire Harness Large Energy Battery Storage Cable

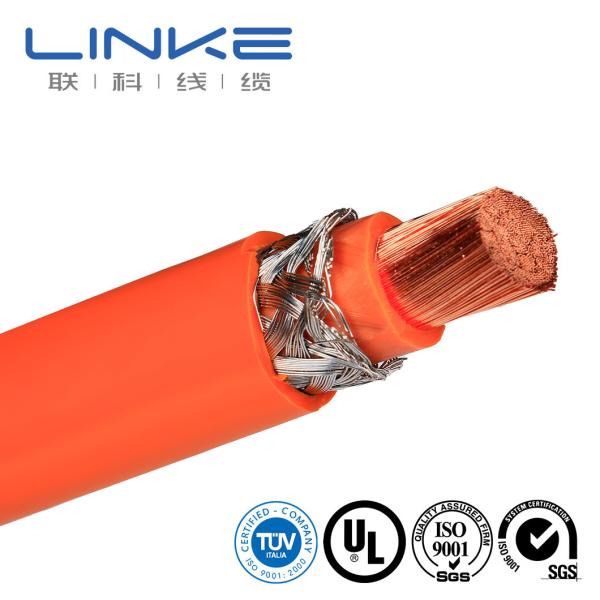

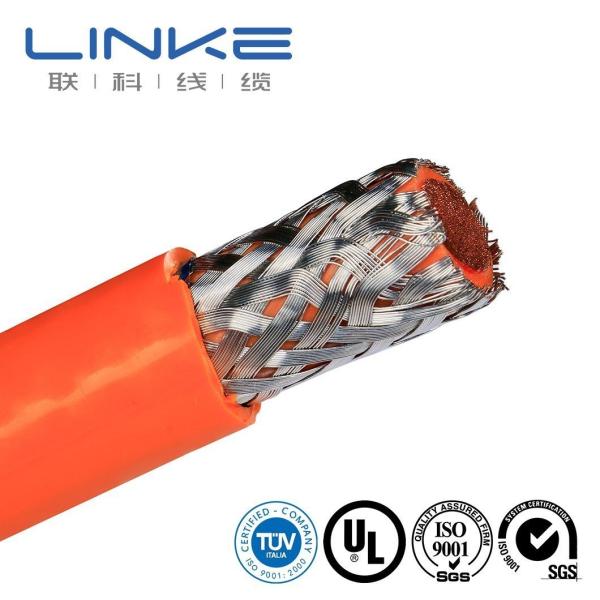

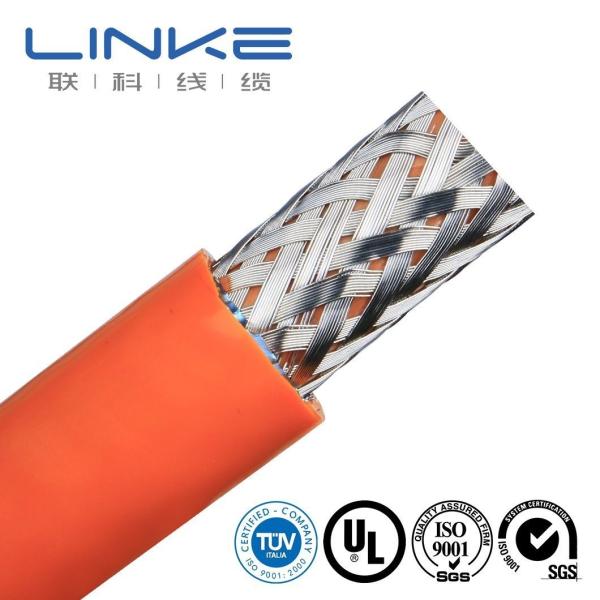

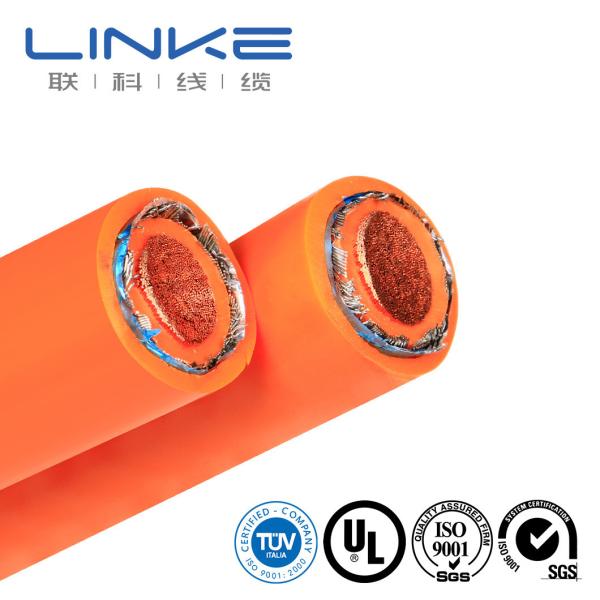

Detailed Photos

Sustainable Energy Storage Power Cable High Voltage With Copper ConductorSustainable Energy Storage Power Cable High Voltage With Copper Conductor

Structure
NO. conductor mm2 insulution 20ºC conductor resistance (Ω/KM)
conductor mm2 Structure(N/mm) Conductor DIA(mm) Conductor Thickness (mm) MATERIAL insulution OD (mm)
EV-YJ 1.5 48/0.20 1.60 copper 0.6 silicone 2.90±0.15 ≤12.7
EV-YJ 2.5 80/0.20 2.06 copper 0.7 silicone 3.50±0.15 ≤7.60
EV-YJ 4 128/0.20 2.62 copper 0.8 silicone 4.30±0.15 ≤4.71
EV-YJ 6 196/0.20 3.50 copper 0.8 silicone 5.10±0.20 ≤3.14
EV-YJ 10 322/0.20 4.50 copper 1.00 silicone 6.70±0.20 ≤1.82
EV-YJ 16 513/0.20 5.70 copper 1.10 silicone 8.00±0.30 ≤1.16
EV-YJ 25 798/0.20 7.10 copper 1.3 silicone 9.80±0.30 ≤0.743
EV-YJ 35 1121/0.20 8.50 copper 1.3 silicone 11.40±0.30 ≤0.527
EV-YJ 50 1596/0.20 10.10 copper 1.50 silicone 13.50±0.30 ≤0.368
EV-YJ 70 2242/0.20 12.10 copper 1.50 silicone 15.50±0.40 ≤0.259
EV-YJ 95 3034/0.20 14.10 copper 1.50 silicone 17.50±0.50 ≤0.196
Sustainable Energy Storage Power Cable High Voltage With Copper Conductor
Company Profile

Wire and cable manufacturer Linke Cable Technology Co., Ltd is a leading cable supplier in China.

In the past over 10 years, Linke Cable has been focusing on R&D, production and marketing of

wire and cable. Linke provide various cables&custom cable solutions for all over the world.

We are specialized in EV charging cable, medical cable, silicone cable, spring cable, braided cable,

towlobe cable, UL wire, automotive cable, etc.

At Linke cable, we believe there's a better way to bring better cables to market. We use an engineer-to-engineer approach to develop better cables for customers and improve the quality of one's life.

Sustainable Energy Storage Power Cable High Voltage With Copper ConductorSustainable Energy Storage Power Cable High Voltage With Copper Conductor
Certifications

We past UL1007,UL1185,UL1672,UL10070,UL10483,UL1015,UL1569,UL10012,UL10269

(Single conductor,thermoplastic insulation)

UL2095,UL2129,UL2468,UL2586,UL2725,UL20233,UL20280,UL20963,UL2103,UL2463,UL2517,

UL2587,UL2835,UL20276,UL20549,UL21198,2104,UL2464,UL2576,UL2661,UL2919,UL20279,UL20886,UL21664

ISO9001 and ISO13485,TS16949

CNR- Appliance Wiring Material,

Extruded PVC Insulated Single,rated 105ºC,1000V,ClassI,GroupA,B,or AB, FT1 and/or FT2.

Extruded PVC Non-integral Jacketed Cable, rated 105"C, 1000V, Class I, Class or Class I/Il, Group A, B, or AB, FT1 and/or FT2.

Extruded TPU Non-integral Jacketed Cable, rated 80"C, 300V, Class I, Class or Class I/Il, Group A, B, or AB, FT1 and/or FT2.
Sustainable Energy Storage Power Cable High Voltage With Copper ConductorSustainable Energy Storage Power Cable High Voltage With Copper Conductor

FAQ


1. Are you a manufacturer or trading company?
We are a professional manufacturer. We can control your order from the first begining to the last.

Welcome to visit us. We'll pick you up in Shenzhen.

2. How can I get a sample to test your quality?
The samples are free for you. New clients are expected to pay for the courier cost.

3. What's your Minimum Order Quantity?
Normally 100m. However, the cable is very heavy.
You'd better order a suitable quantity to avoid the high freight.
Sea transportation is the best option.

4. Can I get a discount?
It depends on your quantity, We can make a discount and afford the freight. Pls kindly contact us.

5. Does your company accept OEM production?
Yes, could print your company name, we even custom the quality card to promote your company.

For More Information, Please do feel free to contact us!
