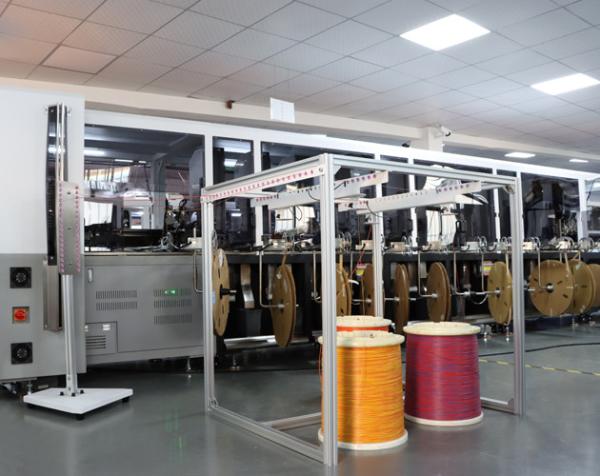

Multi Functional Wire Feeding Machine Drum Type Roll Ytpe

Equipment Function

Multi-sensors for switching variable speeds. clean cord feeding procedure.

Synchronize the data with the automatic crimping machine and cutting machine.

A versatile machine that fits in both packed wire and random wire. Active braking function. Precisely wire feeding amount.

Technical Parameters

About Our Company:

Established in 2013, with a decade development, Linquan acts a leading harness equipment manufacturer in China, now we are 100+ staff & $ 150M+ annual revenues tech company. Our core business focus on design & fabricate high & low voltage cable processing equipment, digital factory MES integration, harness-manufacturing-focused consulting services.

Our advantage:

High speed mass production capability

Excellent compatibility

Reliable machine performance

User friendly HMI

Compatible with third-party data (such as MES, SCADA) interface

Flexible platform design

Short changeover time

Real-time equipment performance and process data

Easy-to-manage part number list

Modular design, such as: standard Housing insertion, crimping, CCD modules

Standardized and modular design

Outstanding quality control ensured by CCD on all processes

Quick changeover time

MES Traceabilitys

Self-Developed:

Self-Developed Crimping Head Pas s CPA+ pres sure s tabi l ity tes t CMK can reach to 4.0 or higher,far higher than the indus tr y s tandard 1.6 (Detai led data report s can be prov ided) Higher s tabi l ity and ac curac y Adjus t height on touchs c reen The c rimping machine head can be added ac cording to cus tomer s need. The equipment i s modular and can be matched ac cording to produc t types . 3 or 12 modules can be selec ted, as required

Self-Developed CCD Visual Inspection CCD Vi sual Inspec tion detec t the Coreles s c rimping, Crimping without s tripping, Deep and shal low c rimping, Core wire splay, Half packing of insulation layer and prov ide alarm.

Core Wire Online Inspection System Detec t the Copper Wire Inspec tion Number and Stripping Length Inspec tion and prov ide alarm.

Self-Developed Online Pressure Inspection Detec t the Terminal Presence, Deep or shal low c rimping and Coreles s c rimping and prov ide alarm

Lin Quan After Services:

Remote services:

Free phone-calling services when customers meet technical problems or machines defectiveness. We will match the corresponding department to help you solve the problem ASAP. 24-hour hotline at your service.

On site maintenance:

If remote aiding cannot fix your problem, our technicians will show up at the scene within 72 hours to solve the problem.

Normal maintenance services:

Our company provides free maintenance services under warranty period. Including device malfunction removing and system debugging. We recommend contract services while the product is over a warranty period.

Training service:

Lin Quan will provide on-site installation, debugging, training sessions in the event.

Contract periodic maintenance:

Chargeable maintenance service provided by signing the contract with us. Under the contract effecting, our professional technician teams will help the customer check and maintain the machines periodically. Every season we also provide on-site services which include software and hardware inspection, device debugging. We will apply paramount maintenance immediately to eliminate defective part and restore the device to the optimum state.
