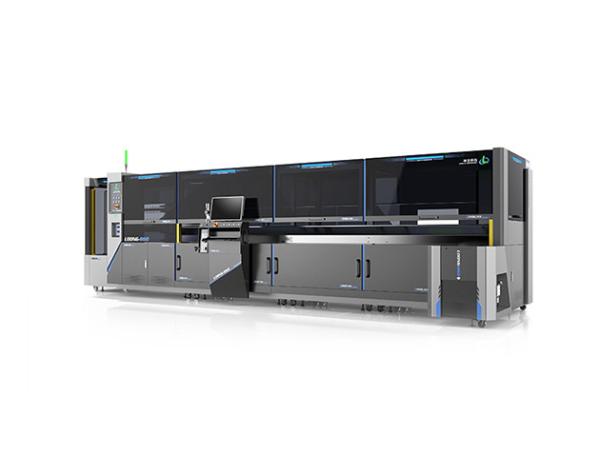

0.1-4.5mm2 Wire Processing Machine Practical Servo Motor Crimping
0.1-4.5mm2 Wire Processing Machine Practical Servo Motor Crimping
0.1-4.5mm2 Wire Processing Machine Practical Servo Motor Crimping
0.1-4.5mm2 Wire Processing Machine Practical Servo Motor Crimping
0.1-4.5mm2 Wire Processing Machine Practical Servo Motor Crimping
0.1-4.5mm2 Wire Processing Machine Practical Servo Motor Crimping
0.1-4.5mm2 Wire Processing Machine Practical Servo Motor Crimping
0.1-4.5mm2 Wire Processing Machine Practical Servo Motor Crimping
Specifications
Brand Name :
LIN QUAN
Model Number :
LOONG-860
Certification :
ISO9001, CE
Place of Origin :
China
MOQ :
1
Price :
USD $ 66,000~500,000
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5 machine per month
Delivery Time :
1-3 Months
Packaging Details :
pearl wool+protective film+wooden box
Wire Changer :
Max. 36 wires(difference color)
Connector Housing :
30 kinds of the Housing
Color :
white and grey(customize acceptable)
Capacity :
1000pcs/hr
Wire Cross-sections :
0.1-4.5mm2
Power :
10KW
Power Source :
3phase 380v/50HZ
Usage :
both end Cutting , Stripping , Crimping and inserting
Description

Cable Electric Cutting And Stripping Machine Terminal Crimping Machine Fully Automatic Wire Processing Machine

Technical Data

Function Cutting, stripping, both end crimping, both end inserting,adjusting height on touch screen, pull force inspection, discharging defective products while selecting
Crimping Capacity 2.5TON Servo motor six sets
(Can be expanded according to customer products)
Wire Cross-sections 0.1-4.5mm2
Feeding Wire Length 0-9999mm
Strip Length Full strip 15mm, half strip 15mm
Wire Changer Max. 36 wires(difference color)
Wire End Storage Rotary storage unit with a maximum of 30 storage spaces
Process Monitoring (integrated) CCD Terminal Detection
Crimping Force Monitoring
Insertion Force Monitoring
Capacity 2.5 sec per single-sided loading
(Piece output is dependent on wire length and housing/terminal combinations)
Block Feed Linear-carrier housing transferring/ Plate-loop conveying housing feeding module
(According to customer requirements)
Connector Housing 30 kinds of the Housing
Electrical Connection 3 phase/220v/50HZ
Power 10KW
Compressed Air 0.5Map

Product advantages

The wire changer holds up to 36 different wires from the entire cross-section range ready for processing.

The different wire types for versatile wire harness production are available on the Loong machines do not need for changeovers. The automatic wire changer provides up to 36 different wires from the entire cross-section range.

This enables the range of wires required in the construction of control cabinets, which to be covered perfectly.

Self-Developed Crimping module
Pass CPA+ pressure stability test CMK can reach to 4.0 or higher,far higher beyond the industry standard 1.67(Detailed data reports can be provided)
High stability and accuracy
Adjusting height on touchscreen


Customized crimping module
Modular equipment fits in particular customized product.
3 to 12 optional modules.
