3.5KW Automatic Wire Processing Machine Single End Multipurpose
3.5KW Automatic Wire Processing Machine Single End Multipurpose
Specifications
Brand Name :
LIN QUAN
Model Number :
SLQ-80B
Certification :
ISO9001,CE
Place of Origin :
China
MOQ :
1
Price :
USD $ 66,000~500,000
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
5 machine/month
Delivery Time :
1-3 months
Packaging Details :
wooden box
warranty :
1 year
power :
3.5KW
Stripping Length :
A 0-15.0mm; B 0-17.0mm
Drive Mode :
Mitsubishi SERVO Drive, IPC
Cutting Precision :
±0.5mm
Power Source :
Single-phase AC 220V/50Hz
Weight :
550KG
Size :
L1480*W950*H1780mm
Description

Automatic Terminal Crimping Machine Single-End Crimping Enamel Wire Stripping Machine

Equipment Configuration

With the German high pixel image detection system

Equipped with high precision(Japan THK),cylinder(SMC),motor(MITSUBISHI) sensor(OMRON)

Equipment Function

1. With wire twisting,soldering flux and tin function

2. Visual inspection at A end

3. Pressure detection at A end

4. Adjust the crimping height on touchscreen

5. The maximum speed can reach to 2800pcs/hr

Technical Parameters

Mechine Function Fixed length cutting,Double ends stripping, half stripping, one-end soldering tin(twisting,with soldering flux),single-ended crimping,pre-feeding function
Capacity One end crimping,one end soldering at about 2800pcs/hr(According to the different processing conditions,the speed will be different)
Drive Mode Mitsubishi SERVO Drive, IPC
Wire Size AWG30-AWG14
Mould Assembly Type AS40,AS42,AE30(Pneumatic mould can be customized)
Wire Cutting Length 35-9999mm (The shortest cutlength can be customized according to requirements)
Cutting Precision Cutting length<100mm,Error range 0.5mm+(Setup cutting length*0.002)
Stripping Length A 0-15.0mm;B0-17.0mm
Penetraction Depth MAX 3mm
Crimping Capacity 2 TON servo motor one set mute specifications
Detection Device Air pressure decline, Wire exists or not, Wire overload, Terminal exists or not, Terminal overload, Stripping images detection, Terminal images detection, Pressure detection
Power Source Single-phase AC 220V/50Hz
Power 3.5KW
Compressed Air 0.5Mpa
Equipment Size L1480*W950*H1780mm
Weight 550KG

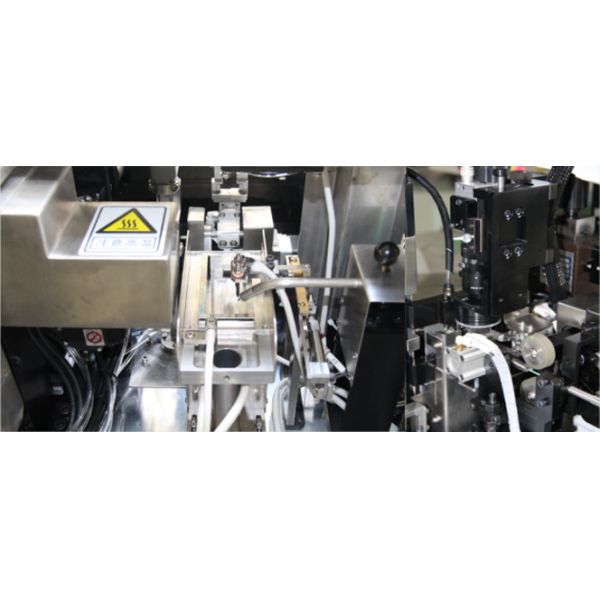

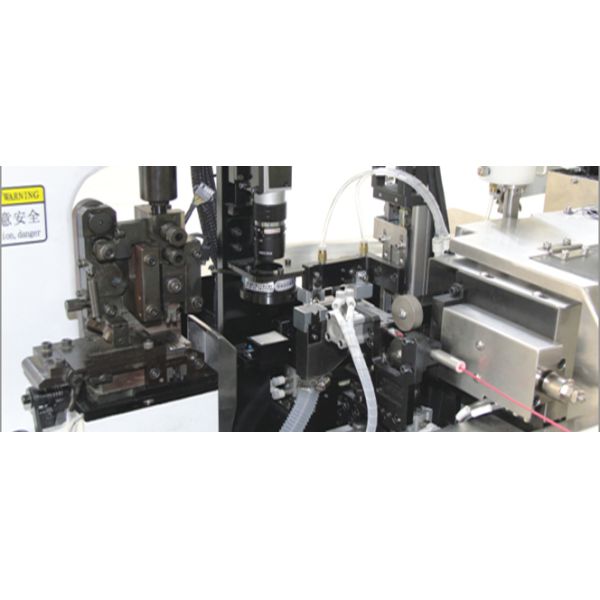

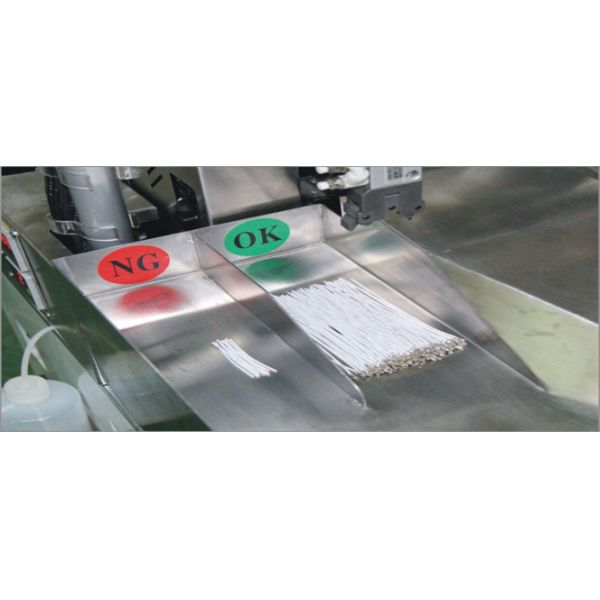

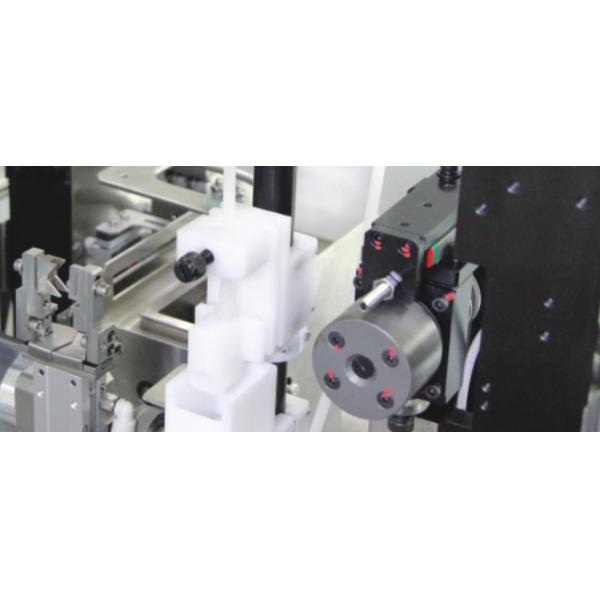

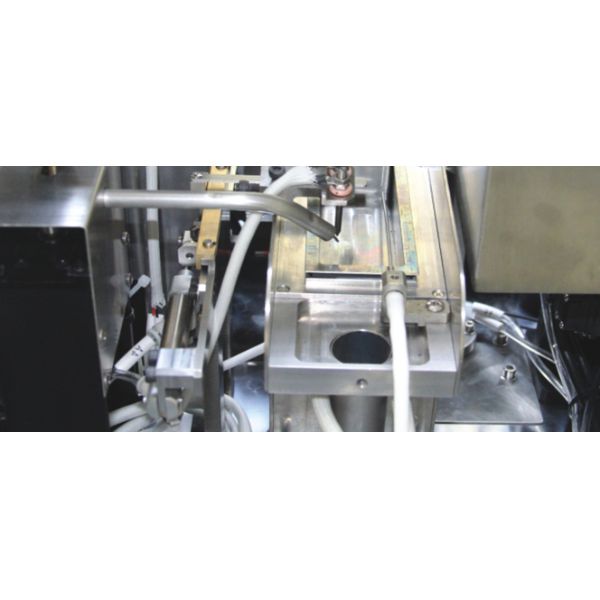

Details:

3.5KW Automatic Wire Processing Machine Single End Multipurpose

3.5KW Automatic Wire Processing Machine Single End Multipurpose

3.5KW Automatic Wire Processing Machine Single End Multipurpose

3.5KW Automatic Wire Processing Machine Single End Multipurpose

3.5KW Automatic Wire Processing Machine Single End Multipurpose

3.5KW Automatic Wire Processing Machine Single End Multipurpose

Shenzhen Linquan Technology Co., LTD. founded in 2013, is a comprehensive intelligent manufacturing solution provider integrating automation equipment and industrial software. Headquartered is in Shenzhen and has a production base in Shanghai.

The company focuses on core technologies such as industrial automation, intelligence, digitalization and networking, and its business covers automation equipment and industrial software, providing high-quality and efficient intelligent manufacturing solutions for customers in new energy, automotive electronics and other industries.

Linquan technology has great insights in industry transformation and upgrading demand, highly integrates high-end intelligent system and traditional processing equipment to redefine the automotive wiring harness production pattern, and has accumulated a large number of first-class customers around the world in new energy, automotive electronics field. Linquan has launched benchmarking products in intelligent production, on-line testing and intelligent factory overall solution fields. With many successful cases, Linquan aims to help customers build core competitiveness.
