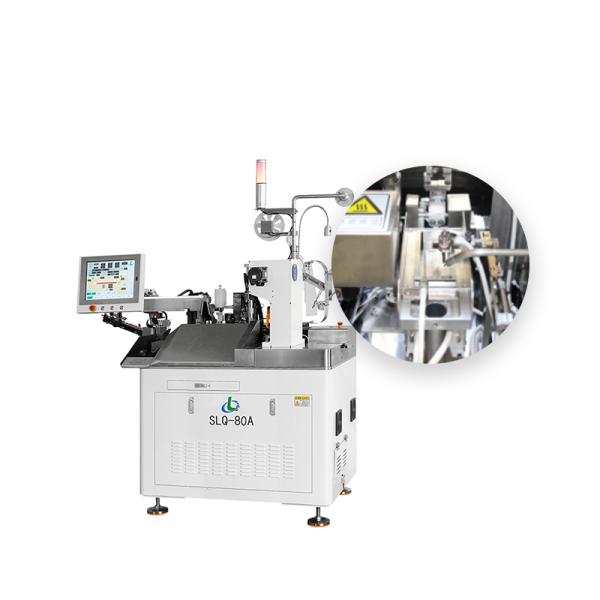

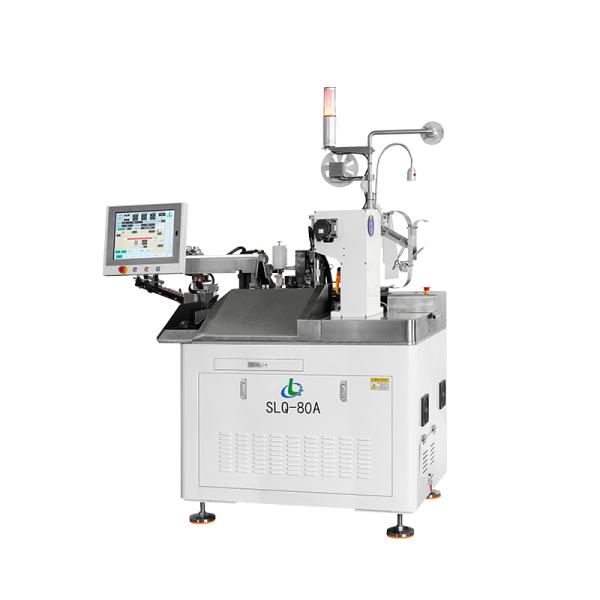

IPC Double End Connector Crimping Machine , 3.5KW Wire Cutting And Stripping Machine
IPC Double End Connector Crimping Machine , 3.5KW Wire Cutting And Stripping Machine
Specifications
Brand Name :
LIN QUAN
Model Number :
SLQ-80A
Certification :
ISO9001,CE
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
30 set/sets per month
Delivery Time :
30-90days
Packaging Details :
pearl wool+protective film+wooden box
warranty :
1 year
Capacity :
One-end crimping, One-end soldering 2800pcs/H
power :
3.5KW
Drive Mode :
Mitsubishi SERVO Drive, IPC
Wire Size :
AWG30-AWG14
Mould Assembly Type :
Assemble AS40, AS42, AE30( Customized Acceptable)
Wire Cutting Length :
30-9999mm
Cutting Precision :
±0.5mm
Description

Both-end stripping one end soldering tin automatic crimping machine for shot and fine wire

Equipment Function

1. With wire twisting, soldering, fluxing and tinning function

2. Visual inspection at A end

3. Pressure detection at A end

4. Adjust the crimping height on a touchscreen

5. High speed, the maximum can reach 2800pcs/hr

Technical Parameters

Machine Function wire measuring, cutting, both ends striping, half Stripping, single-stop soldering tin (twisting, with soldering fluid), single-end crimping, Stripping length/penetration depth (crimping sinking buffer shape), terminal vertical transport tool, pre-feeding the entire line function
Capacity One-end crimping, One-end soldering 2800pcs/H
Drive Mode Mitsubishi SERVO Drive, IPC
Wire Size AWG30-AWG14
Mould Assembly Type Assemble AS40, AS42, AE30( Customized Acceptable)
Wire Cutting Length 30-9999mm
Cutting Precision ±0.5mm
Stripping Length 1.0-15.0mm
Penetration Depth MAX 3mm
Crimping Capacity 2 TON servo motor one set mute specifications
Detection Device Air pressure decline, Wire existence, Wire overload, terminal existence terminal overload, stripping images detection, terminal images detection, crimping force detection
Power Source Single-phase/220V/50Hz
Power 3.5KW
Compressed Air 0.5Mpa about 140NL/Min
Equipment Size L1480*W950*H1780mm
Weight 550KG

IPC Double End Connector Crimping Machine , 3.5KW Wire Cutting And Stripping Machine

Details

IPC Double End Connector Crimping Machine , 3.5KW Wire Cutting And Stripping Machine

IPC Double End Connector Crimping Machine , 3.5KW Wire Cutting And Stripping Machine

IPC Double End Connector Crimping Machine , 3.5KW Wire Cutting And Stripping Machine

IPC Double End Connector Crimping Machine , 3.5KW Wire Cutting And Stripping Machine
