Large Battery Cable Stripping Machine Pneumatic Insulation Peeling Machine

Technical Parameters

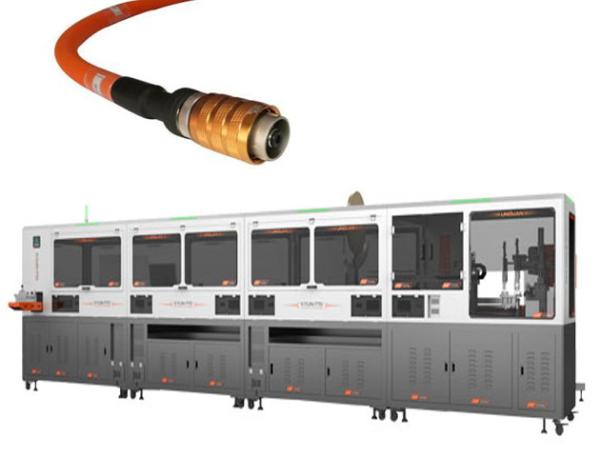

The KYLIN series in particular designed for high voltage Harness manufacturing. Can produce varieties of high voltage harnesses of various
tiers of complexity.
It has the functions of both-end measuring reducing, both-end striping, both-end crimping, internal and outer layer cutting, screening can cutting, screening can reversal, both-end Insertion and so on. lessen production time considerably.
These machines make it workable to manufacture a range of high voltage harnesses. significantly saving labour prices.

Precision transmission and alignment
Professional high-voltage line transmission module, to achieve precise transmission of different specifications of high-voltage wire.
During transmission, the wire is straightened synchronously to make its transmission smoother and more accurate.

Automated inkjet printers mark the wires
The marked wires are picked up by a shuttle system and guided in loops to the processing machines.
Continuous data flow and traceability Production data can be sent directly to the machine via a network. The quality data from the
production process is saved for each wire harness and traceability is guaranteed at all times.

Cutting Precision
It is based on a capacitive measuring principle, is integrated in the blade holder and can be operated using any standard stripping
blade.
The sensitivity of the monitoring can be configured using setting parameters.
Defective wire ends are detected automatically and rejected.
Cutting length shorter than 600mm, error range 0.5mm+

Self-Developed Crimping Head
Pass CPA+ pressure stability test CMK can reach to 4.0 or higher,far higher than the industry standard 1.6(Detailed data reports
can be provided)
Higher stability and accuracy
Adjust height on touchscreen
The crimping machine head,Laser stripping aluminum foil, Screening Can cutting and can be added according to customers need.
The equipment is modular and can be matched according to product types.

Self-Developed CCD Visual Inspection
CCD Visual Inspection detect the Coreless crimping, Crimping without stripping, Deep and shallow crimping, Core wire splay, Half
packing of insulation layer and provide alarm.
Core Wire Online Inspection System
Detect the Copper Wire Inspection Number and Stripping Length Inspection and provide alarm.
Self-Developed Online Pressure Inspection
Detect the Terminal Presence, Deep or shallow crimping and Coreless crimping and provide alarm.

Untwisting of the wires
Unwound wires are always twisted. A specially designed untwisting module untied the wire. The wires are then 100% straight, which is crucial for the subsequent fully automatic insertion.



Special adjustment device for final harness
Automatic wiring harness adjustment device, free hands, one step to complete the finished product

Processing samples
