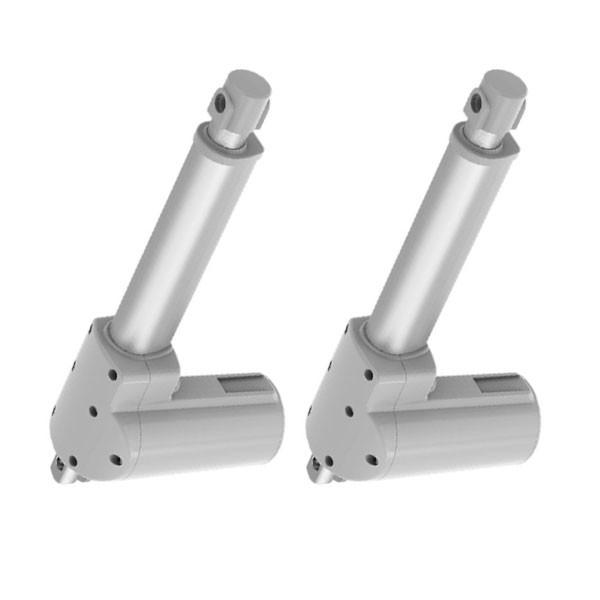

High Force Waterproof IP66 Hall Sensor Linear Actuator For Medical
High Force Waterproof IP66 Hall Sensor Linear Actuator For Medical
Specifications
Brand Name :
Linsheng Auto II MaxM
Model Number :
LS-PAT-23
Certification :
CE
Place of Origin :
CHINA
MOQ :
negotiable
Price :
29-299 USD/PCS
Payment Terms :
L/C, T/T, PayPal
Supply Ability :
10000 PCS per month
Delivery Time :
14 Days
Packaging Details :
Paper gift box, 8 PCS/Carton
Voltage Related :
12/24/36V DC; 24V DC (PTC)
Standard stroke :
25~1000mm
Max load :
10,000N (push); 4,000N (pull)
Max. speed at max. load :
3.2mm/s
Max. speed at no load :
39mm/s
Color :
Black, Grey
Warranty :
1 Year
Customization :
Available
Description
Hhigh-Speed High Force Medical Applications Waterproof IP66W Hall Sensors Linear Actuator

The LS-PAT-23 electric linear actuator is a compact high-speed linear actuator primarily used for medical applications that require high force and high speed. This high-speed linear actuator also has the ability to save installation space by mounting the control box to the actuator. The TA23 linear actuator is available with IP rating up to IP66W. It also has Hall sensors for position feedback. The TA23 high-speed actuators also have a manual release option that can be used for patient hoist applications.

Main Specification Of Electric Linear Actuator
Linear Actuator LS-PAT-23
Voltage of motor 12/24/36V DC; 24V DC (PTC)
Maximum load 10,000N (push); 4,000N (pull)
Maximum speed at full load

3.2mm/s
Standard stroke 25~1000mm
Retracted length ≥ Stroke + 163mm
Options Hall sensors
Color Black, Grey
IP rating IP66W

Operational temperature range

 5℃-45℃

Applications: Primarily used for medical applications, can be used for patient hoist applications.

High Force Waterproof IP66 Hall Sensor Linear Actuator For Medical

Drawing Of Electric Linear Actuator

Standard Dimensions (mm)

High Force Waterproof IP66 Hall Sensor Linear Actuator For Medical
