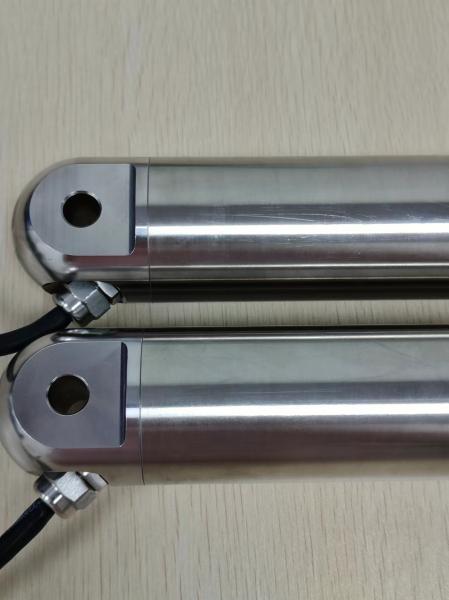

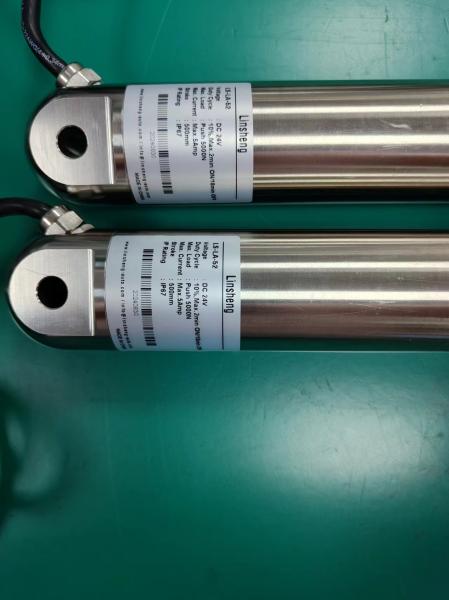

Full Stainless Steel Tubular Actuator Remote Control Kit for Marine Yacht

The Full Stainless Steel Tubular Electric Linear Actuator is a robust and reliable solution for marine yachts, designed to offer precise control in harsh marine environments. With a powerful 6000N force and an adjustable stroke range from 20 to 500mm, this actuator is perfect for various applications on a yacht, such as adjusting seats, hatches, or other equipment. The full stainless steel construction ensures durability and resistance to corrosion. It works with our 2CH, 4CH synchronize controllers as well as the speed adjustable controller.,

Specification:

Out tube: φ52
Working voltage: 12V/24VDC
Max.load: 6000N
Storke: 20mm~500mm
Max.speed: 55mm/s (500N)

Material : 304 stainless steel ( outer tube & piston rod)
No-load current(A): ≤1.6 (12v) ; ≤0.8 (24v)
Load current(A): ≤10 (12v) ; ≤5 (24v)
IP rating: IP67
Working duty(S2): 2 min. on/ 18 min. off
Certification: CE

Optional:
Limit switch / Hall sensor / Overcurrent protection / Aluminum or stainless steel version

Application:
skylight, smoke vent system, yacht automation, agricultural machine.

Questions and Answers:

Q: Is it possible to get a sample?
A: Yes, we can provide samples for quality and performance test

Q: Is the product ready to be dispatched?
A: No, the actuators are tailored products, so we need to produce the items per your request.

Q: How long can I get my order, what's the lead time?
A: It usually takes about 10~15 working days to produce samples. But it may vary from time and real situation sometimes.

Q: Do you have after-sale service?
A: Yes. We offer technical support and fast after-sales service. Feel free to contact us if you encounter any questions.

Q: What is your payment?
A: We accept TT, LC, Paypal

About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is specialized in Auto motion, motion remote control systems, automobile safety and security electronics for more than 10 years. With an experienced R&D department of 19 engineers team, we can provide customized design and molding to support your OEM/ODM projects.

Support and Services:
All our products come with a one-year warranty. We provide technical support and services for Linear Actuator Controllers. Our team of engineers and technicians are available to help you troubleshoot any problems you may be having with your Linear Actuator Control box.

Packing and Shipping:
All our products are packaged carefully before shipping. The box is sealed with tape and labeled with the product name and shipping address. Your item will be shipped via UPS, FedEx , DHL or other shipping courier you may prefer.
