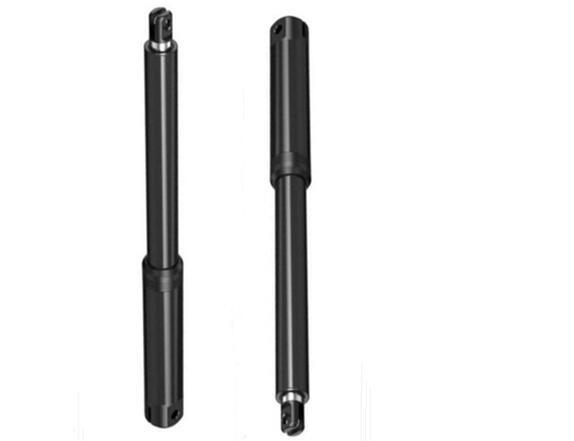

3000N Thrust Electric Linear Industrial Actuators Waterproof DC Motor

Engineered for industrial application & compact installation, this DC motor-driven linear actuator provides a maximum thrust of 3000N and supports stroke lengths between 25mm and 1000mm. With Hall sensors for accurate positioning and an IP66 to IP69K waterproof rating, it's designed for both indoor and outdoor applications where durability and precision are crucial.

Specifications:

• Product: Tubular DC actuators
• Working Voltage: 12/24V DC
• Max. Thrust: 3000N (push/pull)

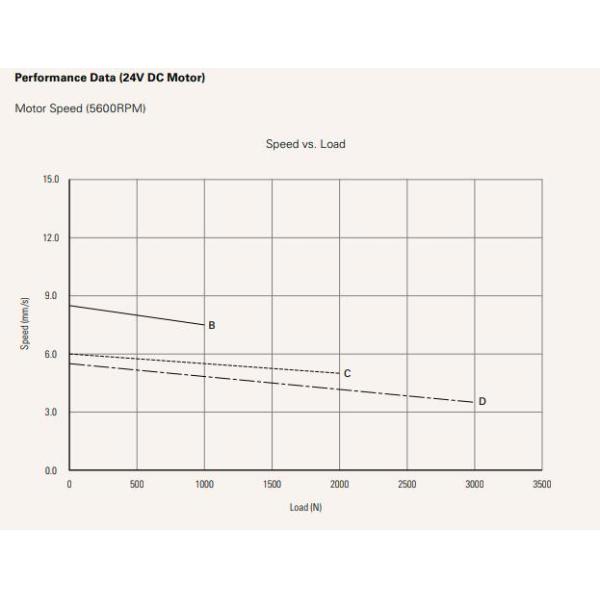

• Max. speed: 3.5mm/s (max. load); 8.5mm/s (no load)
• Stroke: 25mm~1000mm
• Retracted length ≥ Stroke + 227mm
• IP grade: up to IP69K
• Output signals: Hall sensors
• Working temperature range -20°C~+60°C

Features:

• Durable and precise electric linear actuator
• Adjustable stroke from 25mm to 1000mm
• Waterproof IP66M, IP68, IP69K for option
• Max. loading force up to 300Kg for low-load industrial
• Powerful and Versatile actuators meet different scenario
• Customization is available

Applications:

Garage door opener ; Pergola ; Window opener; hidden Cabinet

As the electric actuators are tailored products, the price and specification are for reference only.

For more information, feel free to contact us. We can do the products per your requirements.

Questions and Answers:

Q: Is it possible to get a sample?
A: Yes, we can provide samples for quality and performance test

Q: Is the product ready to be dispatched?
A: No, the actuators are tailored products, so we need to produce the items per your request.

Q: How long can I get my order, what's the lead time?
A: It usually takes about 10~15 working days to produce samples. But it may vary from time and real situation sometimes.

Q: Do you have after-sale service?
A: Yes. We offer technical support and fast after-sales service. Feel free to contact us if you encounter any questions.

Q: What is your payment?
A: We accept TT, LC, Paypal

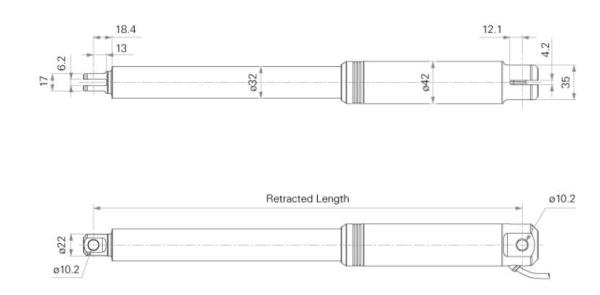

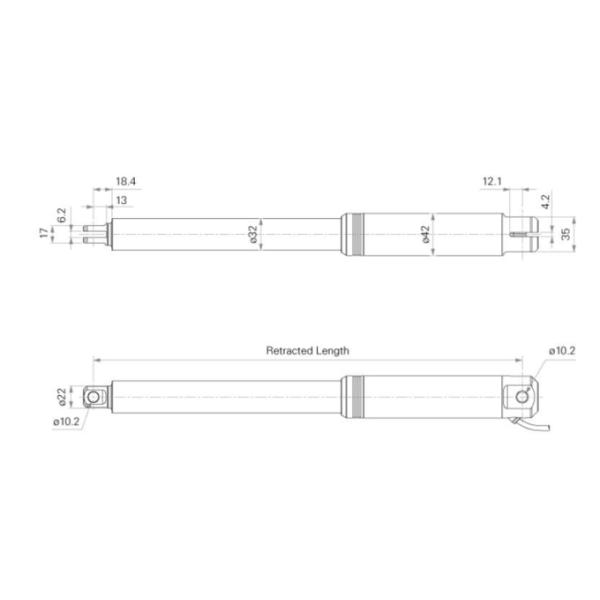

Standard size (mm)
