30KG Max. Thrust 30mm Small Tube Actuator For Hidden Drawer Retractable Projector Screen
30KG Max. Thrust 30mm Small Tube Actuator For Hidden Drawer Retractable Projector Screen
30KG Max. Thrust 30mm Small Tube Actuator For Hidden Drawer Retractable Projector Screen
30KG Max. Thrust 30mm Small Tube Actuator For Hidden Drawer Retractable Projector Screen
30KG Max. Thrust 30mm Small Tube Actuator For Hidden Drawer Retractable Projector Screen
30KG Max. Thrust 30mm Small Tube Actuator For Hidden Drawer Retractable Projector Screen
30KG Max. Thrust 30mm Small Tube Actuator For Hidden Drawer Retractable Projector Screen
30KG Max. Thrust 30mm Small Tube Actuator For Hidden Drawer Retractable Projector Screen
30KG Max. Thrust 30mm Small Tube Actuator For Hidden Drawer Retractable Projector Screen
30KG Max. Thrust 30mm Small Tube Actuator For Hidden Drawer Retractable Projector Screen
30KG Max. Thrust 30mm Small Tube Actuator For Hidden Drawer Retractable Projector Screen
30KG Max. Thrust 30mm Small Tube Actuator For Hidden Drawer Retractable Projector Screen
Specifications
Brand Name :
Linsheng Auto II MaxM
Model Number :
LS-TB-30
Place of Origin :
China
MOQ :
2
Price :
USD 69~99/PC
Payment Terms :
L/C, T/T, PayPal
Supply Ability :
1000pcs/month
Delivery Time :
2 weeks
Packaging Details :
Carton
Voltage :
12V/24VDC
Load force :
70N/120N/200N/300N
Max. current :
≤0.5A
Max. speed :
20mm/s(No load); 3mm/s(Full load)
Limit switches :
Built in
Stroke :
10mm~600mm

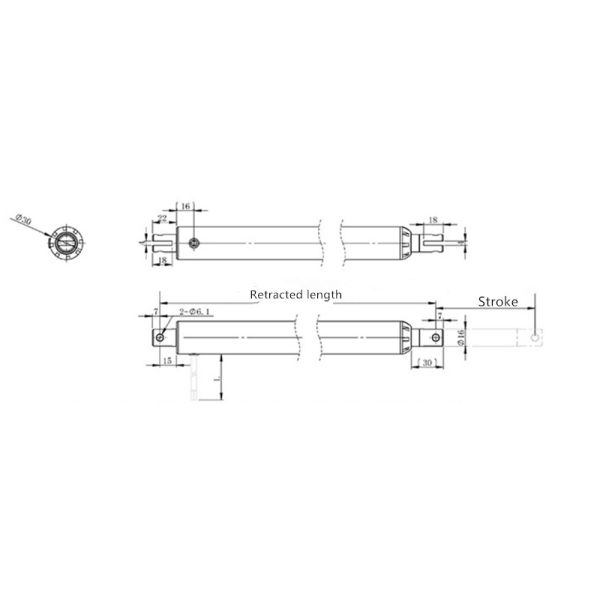

Retracted length :
≥Stroke+210mm
Color :
Silver
IP rating :
IP65
Description

30KG Max. Thrust 30mm Tube Actuator for Smart furniture Adjustable Drawers,Hidden Parts

LS-TB-30 Precision Tubular Linear Actuator – Engineered for low-force, compact motion control, this sleek 30mm-diameter DC motor combines power and precision in a space-saving design. With an expanded load range of 70–300N and an extended stroke of up to 600mm, it delivers robust performance for demanding automation tasks.

Parameters:

Thrust voltage Speed (no load) Speed(with load) Current
30KG 24VDC 4mm/s 3mm/s 0.5A
20KG 24VDC 6mm/s 4mm/s 0.5A
12KG 24VDC 12mm/s 8mm/s 0.5A
7KG 24VDC 20mm/s 15mm/s 0.5A

Specifications:

Voltage: 12V / 24V DC

Load force: 70N / 120N / 200N/ 300N

Stroke: 10mm ~ 600mm

Limit switches: Built in

Retracted length: ≥Stroke+210mm

Color: Silver

Application:

TV lifts (small screen adjustments)
Smart furniture (adjustable drawers, hidden compartments)
Motorized blinds and window openers

30KG Max. Thrust 30mm Small Tube Actuator For Hidden Drawer Retractable Projector Screen

30KG Max. Thrust 30mm Small Tube Actuator For Hidden Drawer Retractable Projector Screen

30KG Max. Thrust 30mm Small Tube Actuator For Hidden Drawer Retractable Projector Screen

About us:
Linsheng Auto (LINSHENG INTERNATIONAL ENTERPRISE CO.,LTD) is specialized in Auto motion, motion remote control systems, automobile safety and security electronics for more than 10 years.With an experienced R&D department of 19 engineers team, we can provide customized design and molding to support your OEM/ODM projects.


Support and Services:
All our products come with a one-year warranty. We provide technical support and services for Linear Actuator Controllers. Our team of engineers and technicians are available to help you troubleshoot any problems you may be having with your Linear Actuator Control box.

Packing and Shipping:
All our products are packaged carefully before shipping. The box is sealed with tape and labeled with the product name and shipping address. Your item will be shipped via UPS, FedEx , DHL or other shipping courier you may prefer.
