Detailed data :

Motor: HA-SH type.

Power: 0.5kw

Speed: 3000r/min.

Speed regulating motors can be divided into stepless constant speed motors, stepless constant speed motors, stepless variable speed motors, and stepless variable speed motors

Bad can be divided into Shenci variable speed motors and DC variable speed motors. PWM variable frequency speed control motor and switch magnetic positive speed control Shenmo convincing Shenji driver

The rotating speed of asynchronous motor is always slightly lower than the synchronous speed of rotating magnetic field.

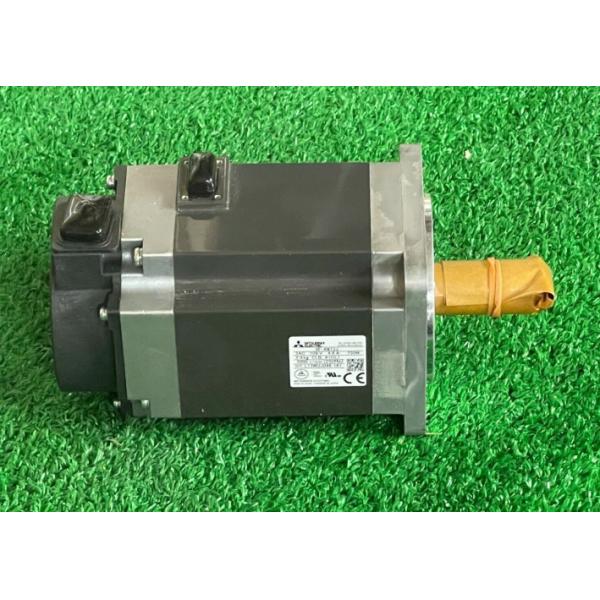

The rotor speed of a synchronous motor is independent of the size of the load and always maintains synchronous speed. HF-KN73J-S100 motor series: low inertia, small capacity

Servo motor driver,

Using a serial absolute/incremental encoder,

Rated output power: 0.6kw.

Rated speed: 3000rpm.

With or without brake: with.

Shaft end: straight shaft.

The functional difference between AC servo motors and brushless DC servo motors is that AC servo motors are better because they are controlled by sine waves and have less torque ripple

DC servo is a trapezoidal wave. But DC servo is relatively simple and cheap. Motor series: medium inertia, medium power servo motor driver.

Rated output power: 3.5kw.

Rated speed: 3000r/min.

With or without brakes: Not equipped.

Shaft end: Standard (straight shaft).

Protection level: IP65 (IP67).

Features: Three modes of medium inertia, from low speed to high speed, are available for selection, suitable for different application ranges.

Application examples: conveyor machinery, robots, X-Y workstations,

High resolution encoder 131072p/rev (17 bit) Mitsubishi HF-KN73J-S100

The built-in high-resolution encoder ensures excellent performance and stability at low speeds.

All motor sizes are the same as previous products and wiring is compatible. Motor series: medium inertia, medium power,

Rated output power: 2.0kw.

Rated speed: 3000r/min.

Equipped with brakes: included.

Shaft end: Standard (straight shaft).

Protection level: IP65 (IP67)

Features: Three modes of inertia from low speed to high speed are available for selection, suitable for different application ranges of Mitsubishi HF-KN73J-S100

Application examples: conveyor machinery, robots, X-Y workbenches.

High resolution encoder 131072p/rev (17 bit).

Equipped with a high-resolution encoder, it ensures excellent performance and stability at low speeds,

All motors have the same size as previous products and all wiring is compatible with the three pack HF-KN73J-S100. Motor series; Recruit low volume, medium power

Rated output power: 1.0kw,

Rated speed: 3000r/min.

Equipped with brakes: included.

Shaft end: Standard (straight shaft).

Protection level: IP65 (IP67).

Feature: Ultra low inertia suitable for high-frequency operation.

Application example: ultra-high frequency transmission machinery

High resolution encoder 131072p/rev (17 bit).

The built-in high-resolution encoder ensures excellent performance and stability at low speeds.

All motors have the same size as previous products and are compatible with wiring. Motor series: low inertia, small to medium capacity,

Using a serial absolute/incremental encoder,

Rated output power: 5.0kw.

Rated speed: 2000rpm

With or without brake: with.

Shaft end: straight shaft.

Comparison between servo motors and single-phase asynchronous motors

The working principle of AC servo motors is similar to that of split phase single-phase asynchronous motors,

But the rotor resistance of the former is much greater than that of the latter,

So compared to single asynchronous motors, servo motors,

There are three significant characteristics:

1. High starting torque HF-KN73J-S100

2. The operating range is wide.

3. Servo motor driver without self rotation phenomenon.

The AC servo motor runs smoothly and has low noise.

But the control characteristics are nonlinear, and due to the high rotor resistance, high losses, and low efficiency,

Therefore, compared to DC servo motors of the same capacity, they are larger in size and heavier in weight
