48V 300Ah Battery Lithium Ion Ups Rackmount 10kwh Solar Energy Storage
48V 300Ah Battery Lithium Ion Ups Rackmount 10kwh Solar Energy Storage
48V 300Ah Battery Lithium Ion Ups Rackmount 10kwh Solar Energy Storage
48V 300Ah Battery Lithium Ion Ups Rackmount 10kwh Solar Energy Storage
48V 300Ah Battery Lithium Ion Ups Rackmount 10kwh Solar Energy Storage
48V 300Ah Battery Lithium Ion Ups Rackmount 10kwh Solar Energy Storage
48V 300Ah Battery Lithium Ion Ups Rackmount 10kwh Solar Energy Storage
48V 300Ah Battery Lithium Ion Ups Rackmount 10kwh Solar Energy Storage
48V 300Ah Battery Lithium Ion Ups Rackmount 10kwh Solar Energy Storage
48V 300Ah Battery Lithium Ion Ups Rackmount 10kwh Solar Energy Storage
Specifications
Brand Name :
OEM & ODM
Model Number :
OEM & ODM
Certification :
CE UN38.3 MSDS
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
10000 per month
Delivery Time :
samples: 8days, bulk order: 30days
Packaging Details :
According to Stardard Export Packing. Carton box, wooden box, wooden pallet
Application :
Power Tools, Home Appliances, Consumer Electronics, Golf Carts, Electric Bicycles/Scooters, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Electric Forklifts
Voltage :
51.2VDc
Protection :
Over temperature, over current, short circuit
Description

51.2V 48V 100ah 200Ah 300Ah LiFePO4 Lithium Ion Iron Phosphate Battery Rack Mounted 10kwh Solar Energy Storage Battery

Weight 55kg

The charging ratio 0.5C

The discharge rate 1C

Application Power Tools, Home Appliances, Consumer Electronics, Golf Carts, Electric Bicycles/Scooters, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems, Electric Forklifts

Standard Voltage 51.2VDc

Product name Lithium Iron Phosphate Lifepo4 Battery

Protection Over temperature, over current, short circuit,

Cell Self-Discharge <5 %/ Month

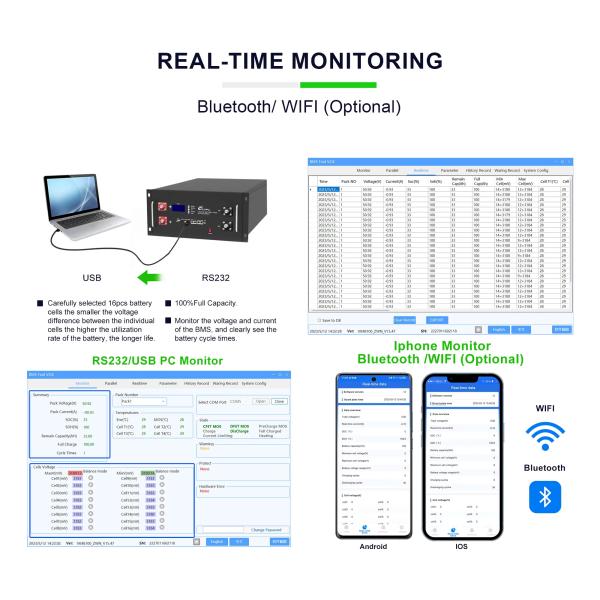

Commumication Protocol CAN/RS485/RS232(WIFI,bluetooth is optional and need extra cost)

Useful Life 8-10 Years

Cycle Life 6000 (@ 80% DoD)

Cell Type Chemistry LiFePO4

Certifications CE,FCC, CCC,IEC

Shipping Classification UN 38.3. UN 3480,MSDS

Product Parameter

Rack-mounted energy storage (Home/Industrial)

Model 4850/5150 48100/51100 48150/51150 F482001200
Standard Voltage 48VDc/51.2VDc5
Voltage 39.75-54.75VDc/42.4-58.4VDc
Norminal Capacity 50Ah 100Ah 150Ah 200Ah
Rated Energy Capacity 2.4/2.56kWh 4.8/5.12kWh 7.2/7.68kWh 9.6/10.24kWh
Commumication Protocol CAN/RS485/RS232/WIFI/4G/Blue Tooth
Efficiency (at 0.5C) 98%
Cell Self-Discharge <5 %/ Month
Maximum Allowed Modules in Parallel 15 (36/38.4kWh) 15 (72/76.8kWh) 15 (108/115.2kWh) 15 (144/153.6kWh)
Depth of Discharge Up to 100%
Useful Life 8-10 Years
Cycle Life 6000 (@ 80% DoD)
Protection Over temperature, over current, short circuit, over-charging, over-discharging, Low voltage
Charge Specifications
Recommended Charge Current 25A 50A 75A 100A
Maximum Charge Current 50A 100A 100A 100A
Recommended Charge Voltage 54/57.6V 54/57.6V 54/57.6V 54/57.6V
Maximum Charge Voltage 54.75/58.4V 54.75/58.4V 54.75/58.4V 54.75/58.4V
Discharge Specifications
Recommended Discharge Current 25A 50A 75A 100A
Maximum Discharge Current 50A 100A 100A 100A
Recommended Low Voltage Disconnect 41.25/44V
Battery Low Voltage Protection 39.75/42.4V
Battery Recovery Voltage 45/48V
Mechanical Specifications
Dimenstions 484*410*120mm 484*410*178mm 484*590*178mm 484*590*178mm
Weight 24.5/26.5kg 38.5/41kg 59/63kg 70.5/75kg
Terminal Type M6
Case Material Industrial Grade Iron
Enclosure Protection IP20
Installation Cabinet
Cell Type Chemistry LiFePO4
Compliance Specifications
Certifications CE,FCC, CCC
Shipping Classification UN 38.3. UN 3480, Class 9
Temperature Specifications
Discharge Temperature -20~65℃ -20~65℃ -20~65℃ -20~65℃
Charge Temperature 0~55℃ 0~55℃ 0~55℃ 0~55℃
Storage Temperature -20~45℃ -20~45℃ -20~45℃ -20~45℃
