Specifications
Brand Name :
OEM & ODM
Model Number :
OEM & ODM
Certification :
CE UN38.3 MSDS
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
10000 per month
Delivery Time :
samples: 8days, bulk order: 30days
Packaging Details :
According to Stardard Export Packing. Carton box, wooden box, wooden pallet
Battery Size :
LiFePO4 24V 300Ah Battery
Weight :
Around 65KG
Application :
Electric Forklifts
Battery Type :
24V Forklift Lithium Battery
Nominal Voltage :
25.6V
Nominal Capacity :
300Ah
Specific Energy :
7680Wh
Communicaton :
RS486/CAN
Terminal :
REMA320/Anderson 175
Battery Cells LFP Prismatic 3.2V 300Ah Cells :
LFP Prismatic 3.2V 300Ah Cells
Description

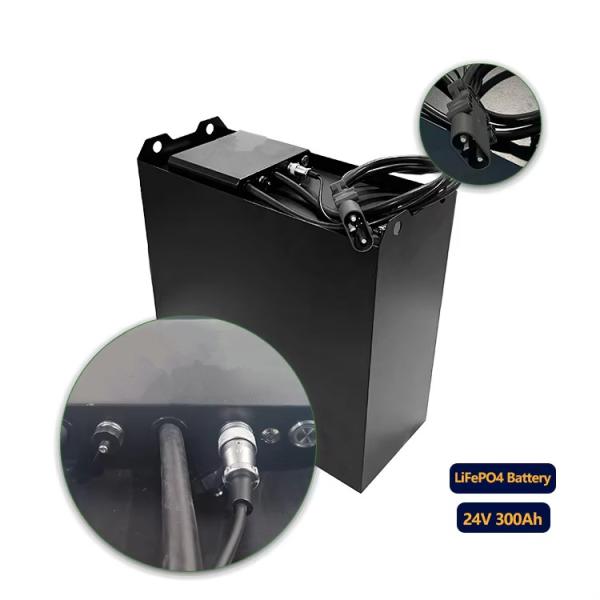

24V 300Ah LiFePO4 Deep Cycle Battery for Forklift

BYPOWER lithium forklift battery are the perfect go-to for power-hungry applications. This lithium forklift battery is specially designed to perform in high-intensity,multi-shift warehouse applictions. lifepo4 lithium forklift battery charge faster,work harder, last longer,and they're virtually maintenance-free.

This 24V 300Ah Forklift Battery are built in lithium battery technology, the Battery weigh as little as 143.3lbs and normally use a standalone 480V, 3 phase charger. Some models are offered with a 110V, 56A output BIC (Built-in Charger) when portability is required. Designed with RS485/CAN communication protocol, which can real-time monitoring the battery status. In addtion, this 24V 300Ah lithium battery are develop to high efficiency energy output compared to lead acid batteries, the series battery can accept to 200A contiouous charge current which can make the battery full-charged within two hours. Built-in high accurate LiFePO4 lithium technology, which can extremely expend the cycle to 4000times@80%DOD.

Lithium 300Ah 24V Forklift Flt Battery Fast Charge LiFePO4 Lift Truck Battery

Datasheet

Electrical Specifications
Nominal Voltage25.6V
Nominal Capacity300Ah
Stored Energy7680Wh
Self Discharge Rate<3% per month
Max. Continuous Charge Current200A
Max. Continuous Discharge Current200A
Charge Cut-off Voltage29.2V
Discharge Cut-off Voltage20V
Cycle Life(25℃)>4000 cycles @80%DoD

Mechanical Specifications
Dimension470(L) X 220(W) X 550(H) mm
Weight65kg (143.3lbs)
Protection LevelIP54
Case MaterialCommercial Grade Steel
Communication ProtocolRS485/CAN

Temperature Specifications
Discharge Temperature-20 to 55℃
Charge Temperature0 to 50℃
Storage Temperature0 to 50℃

Other Specifications
Short Circuit ProtectionAutomatically recover after removal of short circuit
Life Expectancy (year)Around 10 years at one cycle per day


Lithium 300Ah 24V Forklift Flt Battery Fast Charge LiFePO4 Lift Truck Battery

High Energy Density: The lithium-ion battery packs found in our forklifts have DOUBLE the energy density of a lead-acid battery that has the same dimensions. The voltage supply is also stable throughout the energy discharge. Both of these lead to longer run times for the end-user.
Efficiency: BYPOWER lithium-ion forklifts take 2 hours to fully charge compared to charging a lead-acid battery truck for 8-10 hours and allowing it to cool down for another 8-10 hours. The lithium-ion technology also allows for the trucks to run in three-shift environments thanks to opportunity charging. This allows the end-user to continuously run the forklifts for three shifts if they charge the battery during their breaks. The only way a lead-acid truck is able to run three shifts is by having three batteries and switching them out between shifts.

Warranty/Long Life Cycle: BYPOWER lithium-ion battery packs are designed to last a long time. Because of this, we offers up to a 6 year or 20,000 hour warranty on our Lithium Iron Phosphate (LiPO4) battery packs. The battery packs will retain at least 80% residual capacity over 4,000 full charges.

Beneficial to the Environment: Lithium-ion batteries do not release harmful emissions into the environment, use acid, and have twice the service life when compared to lead-acid powered forklifts. They are also substantially more efficient when charging and discharging and are completely recyclable. Because of this, lithium-ion batteries are extremely beneficial to the environment.

What is a LiFePO4 Battery?

A LiFePO4 Battery is short for Lithium Iron Phosphate Battery. Simply put it uses non-toxic material that is abundant in nature to create a more efficient battery.

What are the benefits of a LiFePO4 Battery?

There're some benefits while using an LFP battery instead of other deep cycle lead-acid batteries.
* Less than 1/2 weight of an equal AGM battery
* Lasts 2 times longer. The new technology makes it last more than double times that an equal value AGM would last while using it.
* 3-5 times Serve for longer. Many AGM batteries can only serve properly for 2-5 years, LFP batteries can be used up to 10 years.
* 200% Twice the power of traditional batteries.
* Charges up to 5 times faster.
* 100% safe & Reliable
* Be saving the planet because LiFePO4 batteries are much less toxic.

LiFePO4 batteries cost a lot more upfront but in the long run, they are worth it. Especially when user consider the trouble involved in moving big AGM batteries around.

Lithium 300Ah 24V Forklift Flt Battery Fast Charge LiFePO4 Lift Truck Battery


BYPOWER Forklift Lithium Battery Series

Battery Model

Rated
Voltage

Rated Capacity

Energy
(KWh)

Max. Charge Current

Max.
Continuous Discharge Current

Outline DimensionWeightTerminal
2420025.6V200Ah5.12100A150A417*280*31047kg

Anderson

or

REMA

optional

2430025.6V300Ah7.68150A200A470*220*55065kg
48200

51.2V

200Ah10.24200A150A800*250*32090kg
48300300Ah15.36150A200A930*400*320130kg
48400400Ah20.48200A200A750*400*500190kg
48500500Ah25.6200A200A800*650*440235kg
7220076.8V200Ah15.36100A150A950*400*200140kg
80400

83.2V

400Ah33.28200A200A800*650*400320kg
80500500Ah41.6200A200A800*780*430380kg
Remark 1 : Other voltage, capacity, current, size can be customized according to requirements.
Remark 2: If the weight of the battery pack is not enough, it can be increased.



FAQ
Q1: Can I have samples to test? And what is lead time for sample order?
Yes,we can supply samples in 5-7 days depending on different product items and clients' requirement. For normal in stock
product,2~5 days; For customized product,3~7days depends on requirements.
Q2: What is the warranty for the products?
1~10 years,Since our product range is wide,Minimum12v 40Ah, Max 2MW container energy storage system,Different products has different warranty,welcome to check before placing order.
Q3: What is your company's advantage?
We're direct factory,have very rich exprience in customizing kinds of high voltage,high capacity,high performance battery packs for 12v/24v/48v/80v RV caravans, Electric forklift, Golf cart, Marine, AGV, Lead acid batteries replacement, Solar home energry storage,384V/460V/614V Aircraft tractors,heavy truck, Mine train,110v/220v DC power supply, ESS cabinet,ESS container and so on, can offer you the best & professional technology support.
Q4: Do you accept OEM/ODM?
Yes,welcome!
Q5: What is the lead time for the mass order?
Generally speaking,about 7~20 days depending on different items after getting down payment and confirmation about the samples.
Q6: What is the payment terms?
Sample payment accept Paypal,Western union, Escrow;and Mass order by T/T.
Q7: What kind of certificate can offer?
CE,RoHS,UN38.3,MSDS,etc,If need IEC,PSE and others, please consult with us.
