Specifications
Brand Name :
OEM & ODM
Model Number :
OEM & ODM
Certification :
CE UN38.3 MSDS
Place of Origin :
China
MOQ :
50
Payment Terms :
L/C, T/T
Supply Ability :
10000per
Delivery Time :
samples: 8days, bulk order: 30days
Packaging Details :
According to Stardard Export Packing. Carton box, wooden box, wooden pallet
Battery Size :
36V 100AH
Weight :
35KG
Application :
Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
LiFe cycle :
>8,500cycles
Inverter compatible :
ALL 48 Hybrid Inverter
Description

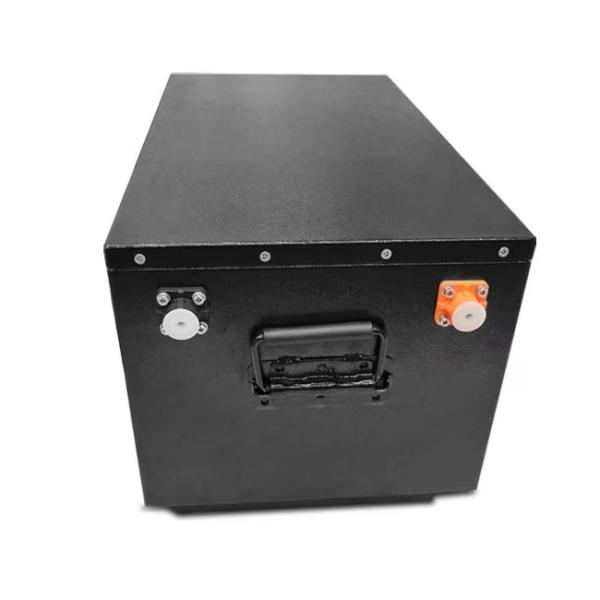

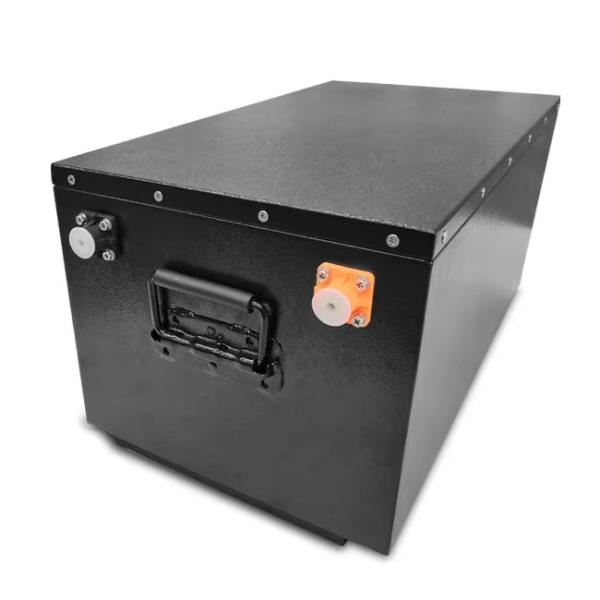

Best selling 36V 100Ah LiFePO4 AGV Smart Battery lithium vehicle battery


Introducing our 36V 100Ah LiFePO4 smart battery, specifically designed for automated guided vehicles (AGVs) and lithium-powered vehicles.

Key Features:
High Capacity: The 100Ah capacity ensures reliable power for extended operation in AGV applications.
LiFePO4 Technology: Provides enhanced safety, thermal stability, and a longer lifespan compared to traditional lithium batteries.
Smart Battery Management: Integrated smart BMS for real-time monitoring, optimizing performance and protecting against overcharging.
Versatile Applications: Ideal for a variety of vehicles, enhancing efficiency and operational reliability.
Low Maintenance: Engineered for maintenance-free operation, allowing for hassle-free use over time.
Lightweight Design: Compact and lightweight, facilitating easy integration into AGVs without adding unnecessary weight.
This 36V 100Ah LiFePO4 smart battery is the perfect choice for powering your automated guided vehicles with efficiency and dependability.

Specification

Norminal Power(KWh)
3840Wh
Norninal Capacity(Ah)
100Ah
Norninal Voltage(V)
36V
Type
LiFePO4 Battery
Dimensions (mm)
Customized
Weight(Kg)
35Kg
Cut off Discharging Voltage(V)
30V
Cut off Cischarging Voltage(V)
43.8V
Charging Current
100A
Discharging Current (A)
100A
Working Temperature(℃)
0~55℃
Shelf Temperature(℃)
-20~70℃
Humidity
0-95% RH(Non-condensing)
IP Grade (IP)
IP65
Altitude
≤3000m
Authentication Level
TuV/CE/UN38.3/MSDS
Design Life(year)
30+ years (@25℃/77℉)
Cycle Life (cycle)
>8000Times

Built-in BMS

No. Item Test Item Criterion
1 Voltage Charging Voltage DC:43.8V CC/CV
Balance voltage for single cell 3.50±0.025V
2 Current Balance voltage for single cell 35±5mA
Current consumption ≤50μA
Charging current 100A
Rated continuous discharging current 100A (Peak 200A)
3 Over charge Protection Over charge detection voltage for single cell 3.65V±0.025V
Over charge detection delay time 0.7S—1.3S
Over charge release voltage for single cell 3.550±0.05V
4 Over discharge Protection Over discharge detection voltage for single cell 2.50V±0.07V
Over discharge detection delay time 1.6±0.5S
Over discharge release voltage for single cell 3.00±0.75V
5 Over current Protection Over current detection current 300A
Over current detection delay time 1.6±0.5S
Release condition Cut load
6 Short Protection Detection condition Exterior short circuit
Detection delay time 230uS—500uS
Release condition Cut load
7 Resistance Protection circuitry (MOSFET) ≤60mΩ
8 Temperature Operating Temperature Range -40~+85℃
Storage Temperature Range -40~+85℃

36V 100Ah Smart Lithium LiFePO4 AGV Car Battery for Vehicle36V 100Ah Smart Lithium LiFePO4 AGV Car Battery for Vehicle36V 100Ah Smart Lithium LiFePO4 AGV Car Battery for Vehicle36V 100Ah Smart Lithium LiFePO4 AGV Car Battery for Vehicle

36V 100Ah Smart Lithium LiFePO4 AGV Car Battery for Vehicle36V 100Ah Smart Lithium LiFePO4 AGV Car Battery for Vehicle

Packing and Shipping:

The AGV batteries come in a sturdy cardboard box with foam inserts to ensure safe transport and storage. The box is labeled with the product name, specifications, and handling instructions for the convenience of the user.

Shipping:

Our AGV batteries are shipped via reliable courier services to ensure timely delivery and safe handling. The batteries are securely packed in a protective box and labeled with all necessary shipping information. We offer free shipping within the United States and international shipping at an additional cost.

FAQ:

Q1: What is the brand name of AGV Batteries?

A1: The brand name of AGV Batteries is OEM & ODM.

Q2: Where is the place of origin of AGV Batteries?

A2: AGV Batteries are manufactured in China.

Q3: What certifications do AGV Batteries have?

A3: AGV Batteries have CE, UN38.3, and MSDS certifications.

Q4: What is the minimum order quantity for AGV Batteries?

A4: The minimum order quantity for AGV Batteries is 50.

Q5: What are the payment terms for AGV Batteries?

A5: The payment terms for AGV Batteries are L/C and T/T.

Q6: What is the supply ability for AGV Batteries?

A6: The supply ability for AGV Batteries is 10000per.

Q7: What is the delivery time for AGV Batteries?

A7: The delivery time for samples is 8 days, and for bulk orders, it is 30 days.

Q8: What are the packaging details for AGV Batteries?

A8: According to standard export packing, AGV Batteries are packaged in carton boxes, wooden boxes, or wooden pallets.
