Electric Bike Batteries: 36V Hailong Batteries (15Ah, 18Ah, 20Ah)
Introducing our high-performance 36V Hailong batteries, designed specifically for electric bikes:
Capacity Options: Available in 15Ah, 18Ah, and 20Ah to meet your energy needs and enhance performance.
Hailong Design: Sleek and compact, perfect for easy mounting on your e-bike for optimal balance.
Lithium Ion Technology: Provides reliable power, long lifespan, and improved safety compared to traditional batteries.
Lightweight Construction: Designed for easy installation without adding unnecessary weight to your bicycle.
Low Maintenance: Engineered for hassle-free operation, requiring minimal upkeep.
These 36V Hailong batteries are the ideal solution for powering your electric bike efficiently and reliably.
High Quality Ebike Battery have excellent performance with diversity models. Long cycle life and safety during your usage.
– Capacity, Power, Voltage and Cell can be customized as your requirement for Min. sample order 1PCS.
– BMS protect battery no fire, no explosion, prevent over-discharge, over-charge, and short circuit. No safety risk.

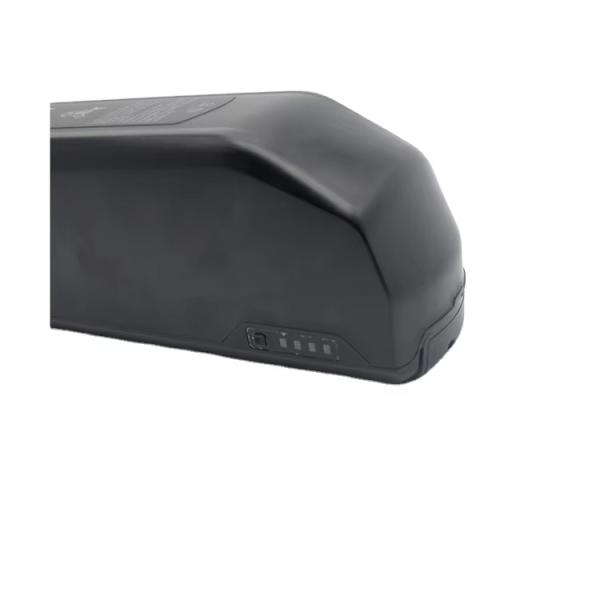

– LED screen to monitor the battery pack energy status.

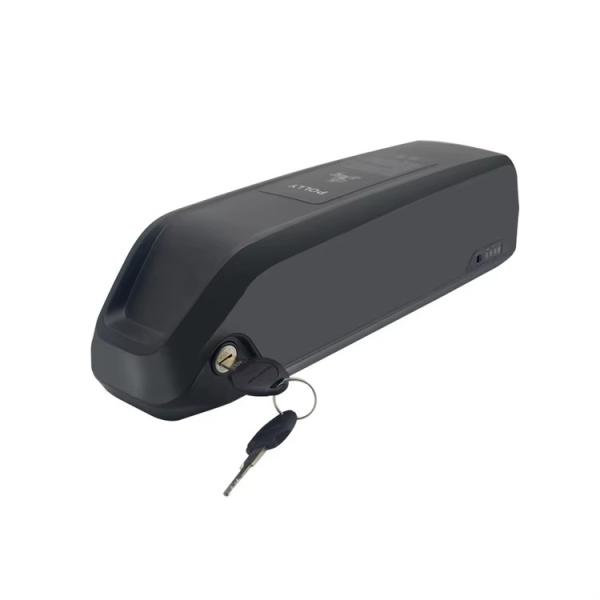

– Easy to remove, portable.
– Portable/Fashionable/Key control/Protection Board/Wonderful/Handle/Metal Case/Durable/Deep Cycle/Long Life Energy/Rechargeable/Safe memory effect/Low self discharge/High efficiency.
Model | YW6-36V15AH | YW6-36V17.4AH | YW6-36V21AH | YW6-36V18AH | HS6-36V20.3AH | HS6-36V24.5AH |
Configuration | 10S6P | 10S6P | 10S6P | 10S7P | 10S7P | 10S7P |
Nominal voltage | 36V | 36V | 36V | 36V | 36V | 36V |
Nominal capacity | 15AH | 17.4AH | 21AH | 18AH | 20.3AH | 24.5AH |
Charge voltage | 42V | 42V | 42V | 42V | 42V | 42V |
Standard charge current | ≤3(A) | ≤3(A) | ≤3(A) | ≤3(A) | ≤3(A) | ≤3(A) |
Continuous discharge current | ≤20A | ≤20A | ≤20A | ≤20A | ≤20A | ≤20A |
Discharge cut off voltage | 28V | 28V | 28V | 28V | 28V | 28V |
Net weight | 4.0kg | 4.0kg | 4.0kg | 4.5kg | 4.5kg | 4.5kg |
Case dimension | L370*W90* H113(mm) | L370*W90* H113(mm) | L370*W90* H113(mm) | L370*W90* H113(mm) | L370*W90* H113(mm) | L370*W90* H113(mm) |
Cycle life | 800 times | |||||
Warranty | 1 year | |||||
BMS function | over-charge,over-discharge,over-current,short circuit | |||||
Fit motors | 250-500W | |||||
Charge temperature | 0 ~ 45°C | |||||
Discharge temperature | -20 ~ 60°C | |||||
Available colors | Black | |||||
Charge method | CC/CV | |||||
Charge port | DC |
FAQ
Q: What type of electric bike battery?
A: It is a Li-ion battery, Chemical is Li(NiCoMn)O2.
Q: What is the difference between a Li-ion battery,Ni-Mn battery and Lead acid battery?
A: E-bike Li-ion battery have longer cycle life,normal cycle life is 800-1000 times, and also with light weight,small size, No memory effect,Nontoxic, environmental friendly.
Q: What's the temperature range of charge and discharge?
A: Charge Temperature: 0 to 45°C and Discharge Temperature: -20 to 65°C
Q: What kind of cells are used on this electric bicycle battery?
A: Different capacities with different cells, we make the battery with original A grade Brand and high-quality domestic cells, all can be customized as your requests.
Q: Does your e-bike battery come with a charger?
A: All of our e-bike batteries come with charger.We have normal charger and fast charger. If you need fast charger please contact with us.
Q: Do your electric bike batteries come with BMS?
A: Yes, Our batteries all with SEIKO IC BMS, with stable performance.Which can protect the battery avoid short circuit,Overcharged,Over discharge and Over current.
Q: Can you provide OEM and ODM service?
A: Yes, We are a professional Electric Bike Battery manufacture with factory, which produce all kind of high quality E-bike lithium batteries as customers' requirements and designs, welcome to place OEM and ODM orders and visit our factory.
