Specifications
Brand Name :
OEM & ODM
Model Number :
36V10Ah
Certification :
CE UN38.3 MSDS
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
10000per
Delivery Time :
samples: 8days, bulk order: 30days
Packaging Details :
According to Stardard Export Packing. Carton box, wooden box, wooden pallet
Battery type :
Lithium battery
Nominal Voltage (V) :
36V
Nominal Capacity (Ah) :
10Ah
Cycle life :
>800 times
Cell type :
18650 cell
Charging port :
3 pins
Discharge port :
2 pins
size: :
240*80*68mm
Description

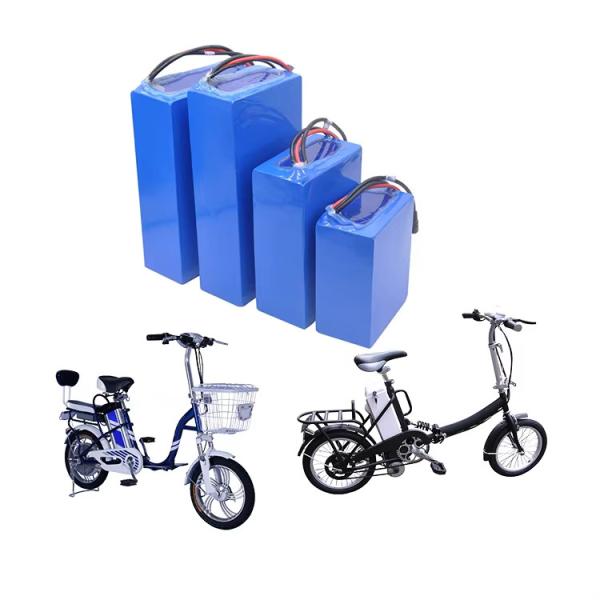

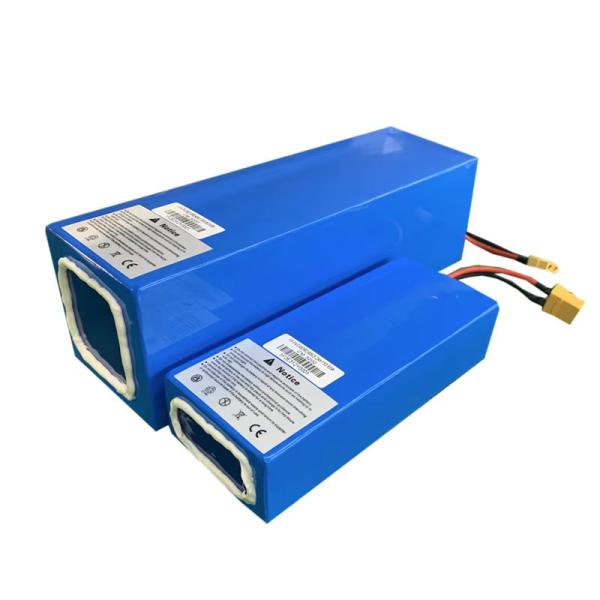

18650 Rechargeable Lithium Ion Silver Fish Battery Packs for Electric Bikes
Introducing our 18650 rechargeable lithium ion silver fish battery packs, designed specifically for electric bikes:

Silver Fish Design: Sleek and compact, ideal for easy integration into electric bike frames.
18650 Cells: Utilizes high-quality 18650 lithium ion cells for reliable performance and long-lasting power.
Rechargeable: Convenient and efficient, allowing for easy recharging to keep you on the go.
Lightweight Construction: Designed to minimize added weight, enhancing your riding experience.
Durable and Safe: Engineered with safety features to ensure reliable operation in various conditions.
These 18650 rechargeable lithium ion silver fish battery packs are the perfect solution for powering your electric bike efficiently and reliably.

Feature:

High Quality Ebike Battery have excellent performance with diversity models. Long cycle life and safety during your usage.

– Capacity, Power, Voltage and Cell can be customized as your requirement for Min. sample order 1PCS.

– BMS protect battery no fire, no explosion, prevent over-discharge, over-charge, and short circuit. No safety risk.

– LED screen to monitor the battery pack energy status.

– Easy to remove, portable.

– Portable/Fashionable/Key control/Protection Board/Wonderful/Handle/Metal Case/Durable/Deep Cycle/Long Life Energy/Rechargeable/Safe memory effect/Low self discharge/High efficiency.

Specification
ELECTRICAL SPECIFICATIONS
Nominal Voltage
36V
Nominal Capacity
10Ah
Energy
360Wh
Series and Parallel Connection
10S4P
Resistance
≤40 mΩ
Efficiency
≥99%
Cycle Life
≥1000 cycles @80%DOD
Self Discharge
<3% per Month
Connector
XT60 or customized
Cable length
15cm
MECHANICAL SPECIFICATIONS
Dimensions (L x W x H)
390*70*40mm
Net Weight
3.5kg
Chemistry
NCM
Cell Type
18650(2500mAh)
Case Material
PVC
CHARGE & DISCHARGE SPECIFICATIONS
Standard Charge Current
≤2A
Max Charge Current
≤5A
Continuous discharge current
≤ 5A
Pulse discharge current
≤20A
Over-discharge protection cut-off voltage
42V
Over-charge protection cut-off voltage
28V
TEMPERATURE SPECIFICATIONS
Discharge Temperature
-4 to 140 ºF (-20 to 60 ºC)
Charge Temperature
32 to 113 ºF (0 to 45 ºC)
Storage Temperature
77±3 ºF (25±3ºC)
More 18650 Battery Pack Can Be Customzied

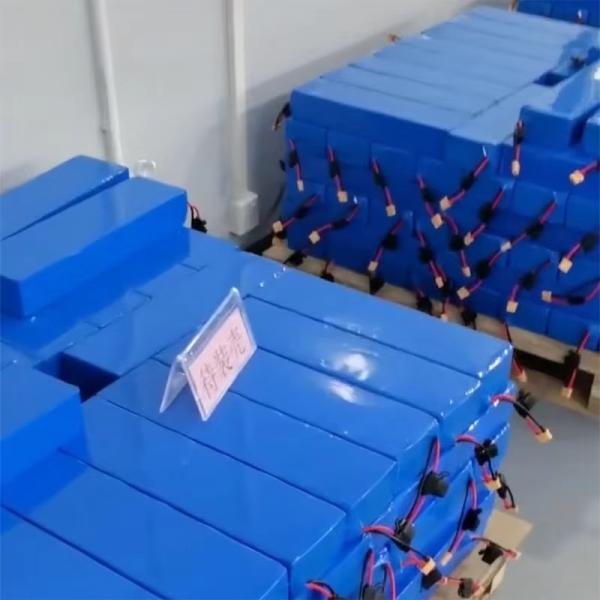

Packing & Delivery
Other Ebike Battery Models

18650 Rechargeable Lithium Ion E Bike Battery Li Ion 36v 10.4 Ah Packs

FAQ

Q: What type of electric bike battery?

A: It is a Li-ion battery, Chemical is Li(NiCoMn)O2.

Q: What is the difference between a Li-ion battery,Ni-Mn battery and Lead acid battery?

A: E-bike Li-ion battery have longer cycle life,normal cycle life is 800-1000 times, and also with light weight,small size, No memory effect,Nontoxic, environmental friendly.

Q: What's the temperature range of charge and discharge?

A: Charge Temperature: 0 to 45°C and Discharge Temperature: -20 to 65°C

Q: What kind of cells are used on this electric bicycle battery?

A: Different capacities with different cells, we make the battery with original A grade Brand and high-quality domestic cells, all can be customized as your requests.

Q: Does your e-bike battery come with a charger?

A: All of our e-bike batteries come with charger.We have normal charger and fast charger. If you need fast charger please contact with us.

Q: Do your electric bike batteries come with BMS?

A: Yes, Our batteries all with SEIKO IC BMS, with stable performance.Which can protect the battery avoid short circuit,Overcharged,Over discharge and Over current.

Q: Can you provide OEM and ODM service?

A: Yes, We are a professional Electric Bike Battery manufacture with factory, which produce all kind of high quality E-bike lithium batteries as customers' requirements and designs, welcome to place OEM and ODM orders and visit our factory.
