Specifications
Brand Name :
OEM & ODM
Model Number :
36V48V52V
Certification :
CE UN38.3 MSDS
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
10000per
Delivery Time :
samples: 8days, bulk order: 30days
Packaging Details :
According to Stardard Export Packing. Carton box, wooden box, wooden pallet
Battery type :
Lithium battery
Nominal Voltage (V) :
36V48V52V
Nominal Capacity (Ah) :
10Ah-30AH
Cycle life :
>800 times
Cell type :
18650 cell/21700
Charging port :
3 pins
Discharge port :
2 pins
Description

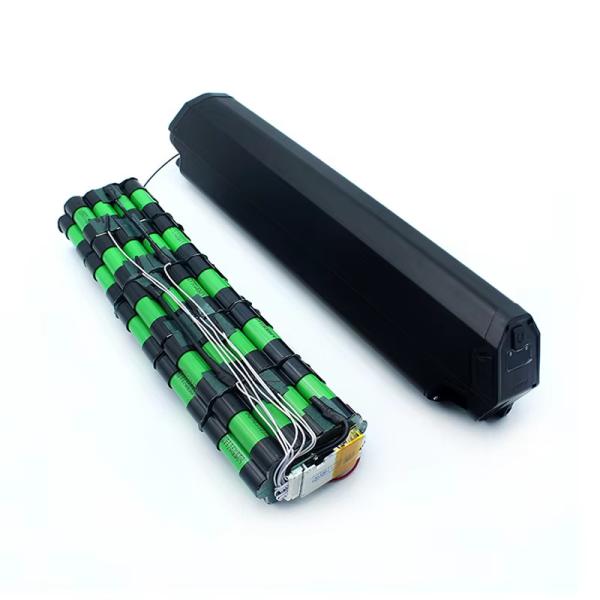

Downtube Electric Bicycle Battery: Reetion Dorado 48V 10Ah Inner Battery for E-Bikes
Introducing the Reetion Dorado downtube electric bicycle battery, designed for optimal performance in e-bikes:

Voltage: 48V, providing reliable power for efficient operation.
Capacity: 10Ah, ensuring a good range for your rides.
Downtube Design: Specifically engineered for sleek integration into the bike frame, maintaining a streamlined appearance.
Durable Construction: Built to withstand the demands of daily use, ensuring long-lasting reliability.
Lightweight and Compact: Designed for easy installation without adding unnecessary weight to your bike.
Low Maintenance: Engineered for hassle-free operation, requiring minimal upkeep.
This Reetion Dorado 48V 10Ah downtube battery is the perfect solution for powering your electric bicycle efficiently and reliably.

Feature:

High Quality Ebike Battery have excellent performance with diversity models. Long cycle life and safety during your usage.

– Capacity, Power, Voltage and Cell can be customized as your requirement for Min. sample order 1PCS.

– BMS protect battery no fire, no explosion, prevent over-discharge, over-charge, and short circuit. No safety risk.

– LED screen to monitor the battery pack energy status.

– Easy to remove, portable.

– Portable/Fashionable/Key control/Protection Board/Wonderful/Handle/Metal Case/Durable/Deep Cycle/Long Life Energy/Rechargeable/Safe memory effect/Low self discharge/High efficiency.

Specification
Item name
Dorado Ebike Battery
Battery style
48v 10Ah
Weight
Around 4kg
Battery material
Lithium ion battery
Typical voltage
48V
Full voltage
54.6V
Rated Capacity
10ah/12ah/16ah/20ah
Maximum charge current
2A
Maximum discharge current
20A
Over-current protection current
25A
Impedance
<240mΩ
AC input
100-240V 50/60HZ
DC output
54.6V 2A
Inner impedance
≤100 mΩ
Charging methods
CC/CV
Cycle life
over 800 times
Charging time
Around 5-7 hours
Expecting driving distance
more than 40KM( 300w Motor)
Charging temperature
0-45 degree
Discharging temperature
-20-60 degree
Certificates
CE,ROHS,UN38.3CC etc.
Usage range
E-Motorbike,Scooters,Tricycles,Quadrocycles,Motorcycles,Ebicycle etc.
Product Description
Certifications
More 18650 Battery Pack Can Be Customzied
Packing & Delivery
Other Ebike Battery Models

48V 30AH Inner Electric Bicycle Battery Pack Downtube Reetion Dorado

FAQ

Q: What type of electric bike battery?

A: It is a Li-ion battery, Chemical is Li(NiCoMn)O2.

Q: What is the difference between a Li-ion battery,Ni-Mn battery and Lead acid battery?

A: E-bike Li-ion battery have longer cycle life,normal cycle life is 800-1000 times, and also with light weight,small size, No memory effect,Nontoxic, environmental friendly.

Q: What's the temperature range of charge and discharge?

A: Charge Temperature: 0 to 45°C and Discharge Temperature: -20 to 65°C

Q: What kind of cells are used on this electric bicycle battery?

A: Different capacities with different cells, we make the battery with original A grade Brand and high-quality domestic cells, all can be customized as your requests.

Q: Does your e-bike battery come with a charger?

A: All of our e-bike batteries come with charger.We have normal charger and fast charger. If you need fast charger please contact with us.

Q: Do your electric bike batteries come with BMS?

A: Yes, Our batteries all with SEIKO IC BMS, with stable performance.Which can protect the battery avoid short circuit,Overcharged,Over discharge and Over current.

Q: Can you provide OEM and ODM service?

A: Yes, We are a professional Electric Bike Battery manufacture with factory, which produce all kind of high quality E-bike lithium batteries as customers' requirements and designs, welcome to place OEM and ODM orders and visit our factory.
