Specifications
Brand Name :
OEM & ODM
Model Number :
48V 16Ah 20Ah 23Ah 28Ah
Certification :
CE UN38.3 MSDS
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
10000per
Delivery Time :
samples: 8days, bulk order: 30days
Packaging Details :
According to Stardard Export Packing. Carton box, wooden box, wooden pallet
Battery type :
Lithium battery
Cycle life :
>800 times
Cell type :
18650-2500mAh
Composed Type :
10S4P 40pcs Cells
Charging port :
3 pins
Discharge port :
2 pins
Size: :
370*150*80(mm)
Weight: :
6.8kg
Description

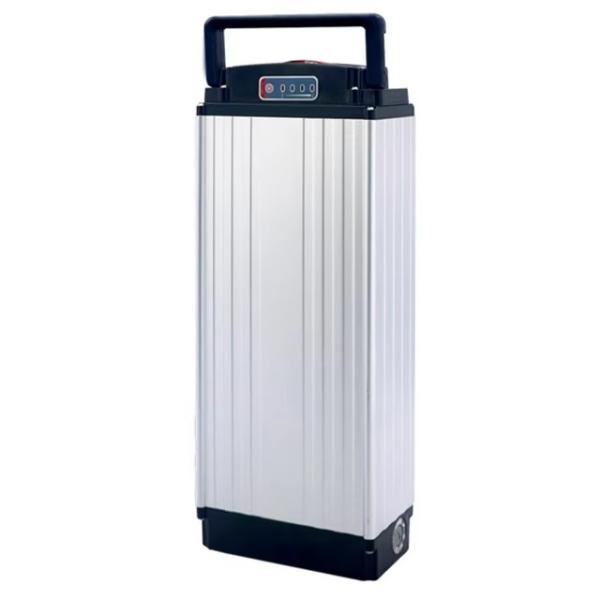

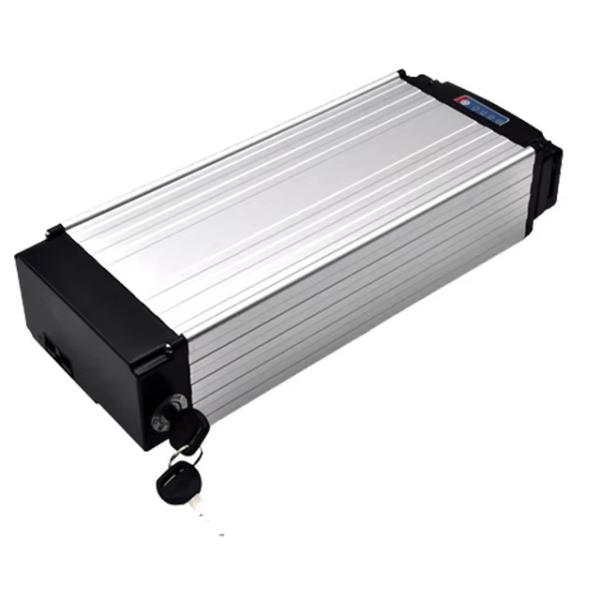

Rear Rack Type Lithium Batteries for Electric Bikes: 48V and 52V (16Ah, 20Ah, 23Ah, 28Ah)
Introducing our rear rack-type lithium batteries designed for electric bikes:

Voltage Options: Available in 48V and 52V to suit your specific e-bike requirements.
Capacity Choices: Select from 16Ah, 20Ah, 23Ah, or 28Ah for optimal power and performance.
Lithium Technology: Provides enhanced safety, thermal stability, and a longer lifespan compared to traditional batteries.
Rear Rack Design: Conveniently mounted on the rear rack for a balanced and stable ride.
Lightweight Construction: Designed for minimal added weight, improving your overall biking experience.
Low Maintenance: Engineered for hassle-free operation, requiring minimal upkeep.
These rear rack-type lithium batteries are the ideal solution for efficiently powering your electric bike.

High Quality Rear Rack Ebike Battery have excellent performance with diversity models. Long cycle life and safety during your usage.

– Capacity, Power, Voltage and Cell can be customized as your requirement for Min. sample order 1PCS.

– BMS protect battery no fire, no explosion, prevent over-discharge, over-charge, and short circuit. No safety risk.

– LED Light to monitor the battery pack energy status.

– Easy to remove, portable.

– Portable/Fashionable/Key control/Protection Board/Wonderful/Handle/Metal Case/Durable/Deep Cycle/Long Life/Strong Energy/Rechargeable/Safe/No memory effect/Low self discharge/High efficiency

Model B106-48V16AH B106-48V20AH B106-48V23.2AH B106-48V28AH
Configuration 13S8P
Nominal voltage 48V
Nominal capacity 16AH 20AH 23.2AH 28AH
Charge voltage 54.6V
Standard charge current ≤3(A)
Continuous discharge current ≤30A
Discharge cut off voltage 36.4V
Net weight 6.4kg
Case dimension 370*150*80(mm)
Cycle life 800 times
Warranty 1 year
BMS function over-charge,over-discharge,over-current,short circuit
Fit motors 750-1000W
Charge temperature 0 ~ 45°C
Discharge temperature -20 ~ 60°C
Available colors Black
Charge method CC/CV
Charge port RCA

FAQ

Q: What type of electric bike battery?

A: It is a Li-ion battery, Chemical is Li(NiCoMn)O2.

Q: What is the difference between a Li-ion battery,Ni-Mn battery and Lead acid battery?

A: E-bike Li-ion battery have longer cycle life,normal cycle life is 800-1000 times, and also with light weight,small size, No memory effect,Nontoxic, environmental friendly.

Q: What's the temperature range of charge and discharge?

A: Charge Temperature: 0 to 45°C and Discharge Temperature: -20 to 65°C

Q: What kind of cells are used on this electric bicycle battery?

A: Different capacities with different cells, we make the battery with original A grade Brand and high-quality domestic cells, all can be customized as your requests.

Q: Does your e-bike battery come with a charger?

A: All of our e-bike batteries come with charger.We have normal charger and fast charger. If you need fast charger please contact with us.

Q: Do your electric bike batteries come with BMS?

A: Yes, Our batteries all with SEIKO IC BMS, with stable performance.Which can protect the battery avoid short circuit,Overcharged,Over discharge and Over current.

Q: Can you provide OEM and ODM service?

A: Yes, We are a professional Electric Bike Battery manufacture with factory, which produce all kind of high quality E-bike lithium batteries as customers' requirements and designs, welcome to place OEM and ODM orders and visit our factory.
