L Feet Frameless Metal Roof Solar Mounting System Aluminum Standing Seam Mount
L Feet Frameless Metal Roof Solar Mounting System Aluminum Standing Seam Mount
L Feet Frameless Metal Roof Solar Mounting System Aluminum Standing Seam Mount
L Feet Frameless Metal Roof Solar Mounting System Aluminum Standing Seam Mount
Specifications
Brand Name :
LP SOLAR
Model Number :
MRA2-AR02
Certification :
ISO 9001, AS1170
Place of Origin :
Jiangsu, China
MOQ :
3KW
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
30 Megawatts per month
Delivery Time :
5~15 days
Packaging Details :
Carton or pallet
Name :
Seam Metal Roof Mounting system
Material :
High grade aluminum and A2-70 hardware
Color :
Silver
Surface treatment :
Anodized
Place of origin :
Jiangsu, China
Warranty :
10 years
Description

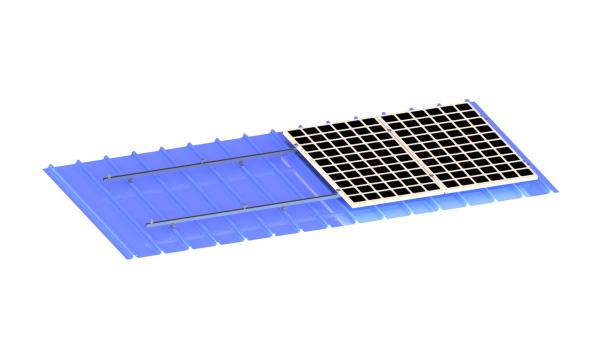

Standing Seam Metal Roof Mount system Tin Roof Commercial solar photovoltaic system

There are three main types of solar roof mounting systems: Railess solar system, L-feet solar system and rail solar system. All three types use the same standing seam roof clamps to secure the panels to the seams of the metal roof. Each of our types uses our non-penetrating roof seam clamps, which will help to protect the roof panels from installation damage by eliminating the rotational forces typically applied to the panels by fixing screws.

Metal roofing panels are very compatible with solar panels, because these roofing panels don't require any holes to be made in the roof when securing the solar panels, so no drilling, no holes, no leakage. Our accessories are assembled at the factory and can be installed at any time, saving the customers’ labor cost on site.

With the customized seam clamp, customer can choose different installation methods, for example railess type, which no need to use rail, fix with the Mid clamp and End clamp directly. It also can fix with L-feet to make the panel height a little higher, which can have better heat dissipation. And normal way is using with H rail together.

There are many shapes of standing seam metal roof on the market, different shapes will need different matched clamps.LP SOLAR engineer team can offer different solutions for your Standing seam roof according to your detail roof situation and detail requirements.


We respect roofs!

Technical Data

Product Name
Standing Seam Metal Roof Mounting system
Application Standing seam metal roofs
Material
 High grade aluminum and A2-70 hardware
Wind Load
Max 88 M/S
Snow Load
Max 1.5 KN/M²
Applicable Module
Framed or Frameless
Module Orientation
Portrait or Landscape
Standard
JISC8955:2017,GB50009-2012,GB50797-2012
Dimensions
Customized
Warranty
10 Years
Work life 25 Years


Installation steps

1. Seamclamp installation 2. Rail installation 3. Panel installation
L Feet Frameless Metal Roof Solar Mounting System Aluminum Standing Seam Mount L Feet Frameless Metal Roof Solar Mounting System Aluminum Standing Seam Mount L Feet Frameless Metal Roof Solar Mounting System Aluminum Standing Seam Mount


Metal Roof Mount System Components

Photo Item No Name Product type Product line

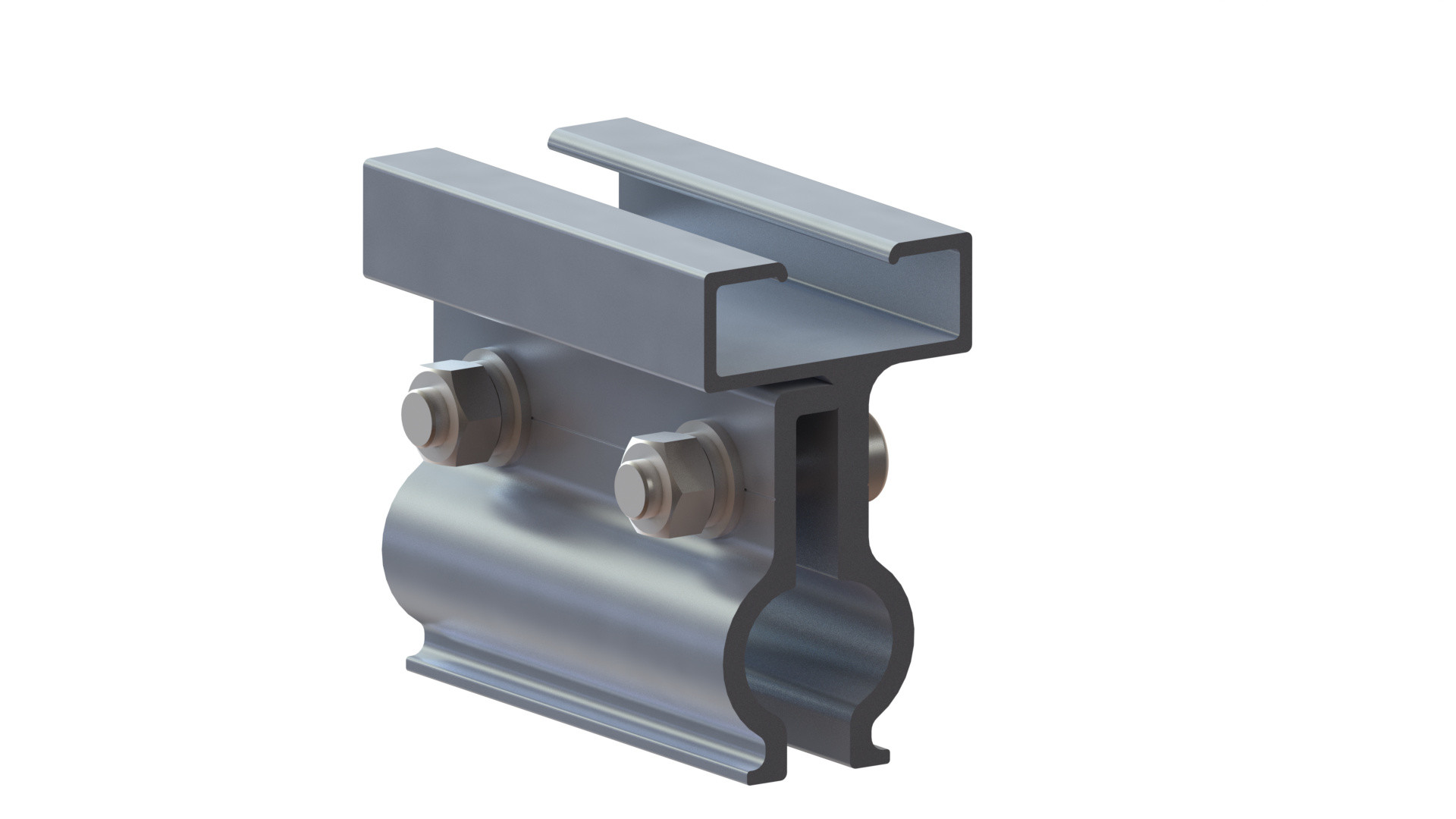

L Feet Frameless Metal Roof Solar Mounting System Aluminum Standing Seam Mount

AR02

Seam clamp

Clamps

MRA2

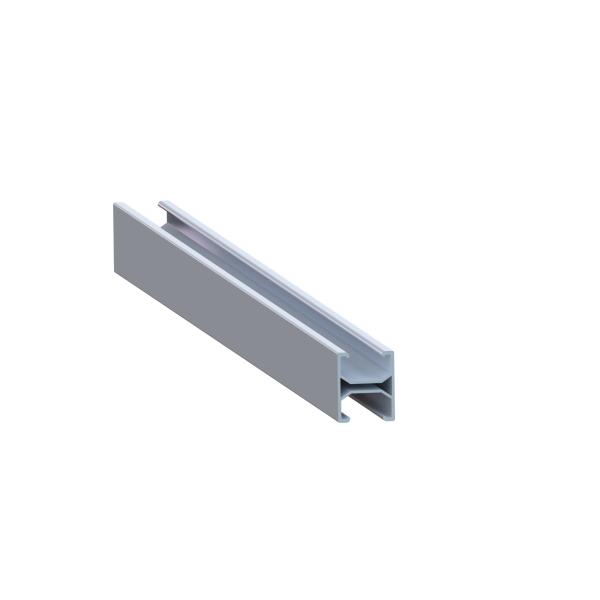

L Feet Frameless Metal Roof Solar Mounting System Aluminum Standing Seam Mount

4HL0000A

Rail 35

Racking

MRA

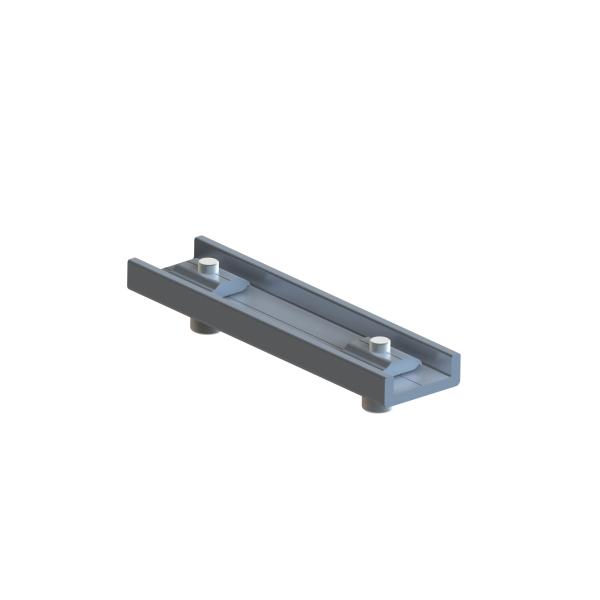

L Feet Frameless Metal Roof Solar Mounting System Aluminum Standing Seam Mount

HAC03

Rail 35 joiner

Racking

MRA
L Feet Frameless Metal Roof Solar Mounting System Aluminum Standing Seam Mount

A735

Mid clamp

Racking

All
L Feet Frameless Metal Roof Solar Mounting System Aluminum Standing Seam Mount

A835

End clamp

Racking

All
L Feet Frameless Metal Roof Solar Mounting System Aluminum Standing Seam Mount

H6WL0000S

Earthing plate

Earthing

MRA
L Feet Frameless Metal Roof Solar Mounting System Aluminum Standing Seam Mount

ED02

Earthing lug

Earthing

MRA
