88M/S Aluminum Metal Roof Solar Mounting System Frameless
88M/S Aluminum Metal Roof Solar Mounting System Frameless
88M/S Aluminum Metal Roof Solar Mounting System Frameless
88M/S Aluminum Metal Roof Solar Mounting System Frameless
88M/S Aluminum Metal Roof Solar Mounting System Frameless
88M/S Aluminum Metal Roof Solar Mounting System Frameless
Specifications
Brand Name :
LP SOLAR
Model Number :
MRA2-HSM 04
Certification :
ISO 9001, AS1170
Place of Origin :
Jiangsu, China
MOQ :
3KW
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
30 Megawatts per month
Delivery Time :
5~15 days
Packaging Details :
Carton or pallet
Name :
Seam Metal Roof Mounting system
Material :
High grade aluminum and A2-70 hardware
Color :
Silver
Surface treatment :
Anodized
Place of origin :
Jiangsu, China
Warranty :
10 years
Description

Standing Seam Metal Roof Mount system Tin Roof Commercial solar photovoltaic system

Metal roofing’s durability and ability to perform in even the most difficult locations and circumstances makes it the best roofing choice in truly every region. It has been tested and proven to perform in winds in excess of 140 km/h and provide protection against impact damage from debris. The large interlocking panels design can resist uplift caused by high winds further reducing the risk of water intrusion. Some post-hurricane inspections have found that metal roofs fared far better than those roofs covered by asphalt shingles.

The solar mounting system for metal roof is mainly made of aluminum instead of steel, the light weight and high strength make aluminum structure be the best choice for solar roof construction

With the customized seam clamp, customer can choose different installation methods, for example railess type, which no need to use rail, fix with the Mid clamp and End clamp directly. It also can fix with L-feet to make the panel height a little higher, which can have better heat dissipation. And normal way is using with H rail together.

There are many shapes of standing seam metal roof on the market, different shapes will need different matched clamps.LP SOLAR engineer team can offer different solutions for your Standing seam roof according to your detail roof situation and detail requirements.


We respect roofs!

Technical Data

Product Name
Standing Seam Metal Roof Mounting system
Application Standing seam metal roofs
Material
 High grade aluminum and A2-70 hardware
Wind Load
Max 88 M/S
Snow Load
Max 1.5 KN/M²
Applicable Module
Framed or Frameless
Module Orientation
Portrait or Landscape
Standard
JISC8955:2017,GB50009-2012,GB50797-2012
Dimensions
Customized
Warranty
10 Years
Work life 25 Years


Installation steps

1. Seamclamp installation 2. Rail installation 3. Panel installation
88M/S Aluminum Metal Roof Solar Mounting System Frameless 88M/S Aluminum Metal Roof Solar Mounting System Frameless 88M/S Aluminum Metal Roof Solar Mounting System Frameless


Metal Roof Mount System Components

Photo Item No Name Product type Product line

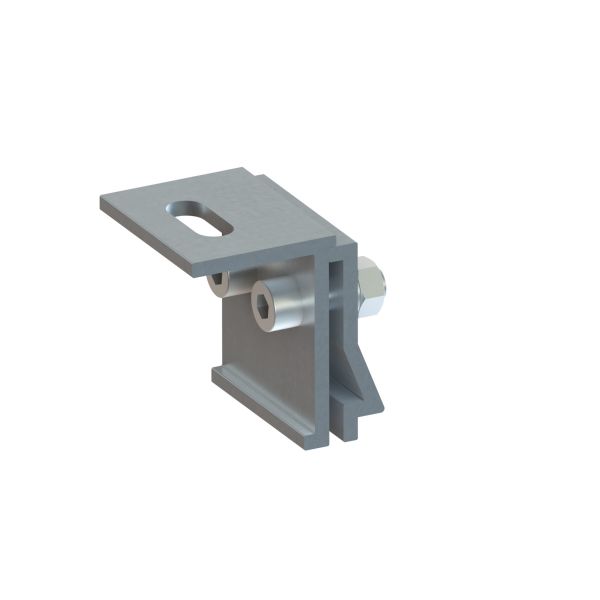

88M/S Aluminum Metal Roof Solar Mounting System Frameless

HSM04

Seam clamp

Clamps

MRA2
88M/S Aluminum Metal Roof Solar Mounting System Frameless

H4L0000A

Rail 35

Racking

MRA
88M/S Aluminum Metal Roof Solar Mounting System Frameless

HAC03

Rail 35 joiner

Racking

MRA
88M/S Aluminum Metal Roof Solar Mounting System Frameless

A735

Mid clamp

Racking

All
88M/S Aluminum Metal Roof Solar Mounting System Frameless

A835

End clamp

Racking

All
88M/S Aluminum Metal Roof Solar Mounting System Frameless

H6WL0000S

Earthing plate

Earthing

MRA
88M/S Aluminum Metal Roof Solar Mounting System Frameless

ED02

Earthing lug

Earthing

MRA
