Architectural Standing Seam Metal Roof Mount system Tin Roof Commercial solar photovoltaic system

Metal roofing is by far one of the greenest and longest lasting types of roofing materials. Professionally installed metal roofs will protect your home from rain, snow, high winds / hurricanes, ice dams, fires, hail, lightening, etc. Metal roof is mostly slope roof, the common slope is 5% and 10%. The roof panel is profiled-steel plate or profiled-sandwich plate, and the lower part is purlin, which is built on the main support structure such as portal steel frame. In China, there are many examples of rooftop photovoltaic power stations of this type. For this type of roof, photovoltaic modules can be laid in parallel along the roof slope, or can be designed to be arranged in a certain Angle. The upper bracket can be connected with the roof bearing structure through different connectors and fasteners.

There are many types and styles of metal roofing, as well as many types of metal alloys used in manufacturing of metal coils from which products are made. Common metal roof type basically divides for Standing Seam model, Architectural Standing Seam model, Corrugated and R-panels model and so on.Different metal roof structure corresponding to different clamps, clamps and roof matching the better the reliability of the solar mounting system installation.

Architectural Standing Seam roof's corrugated height is relatively high. Commonly used models are III 760 and III820.

LP SOLAR engineer team can offer different solutions for your Standing seam roof according to your detail roof situation and detail requirements.

We respect roofs!

Technical Data

Installation steps

1. Seamclamp installation	2. Rail installation	3. Panel installation

Metal Roof Mount System Components

Photo	Item No	Name	Product type	Product line

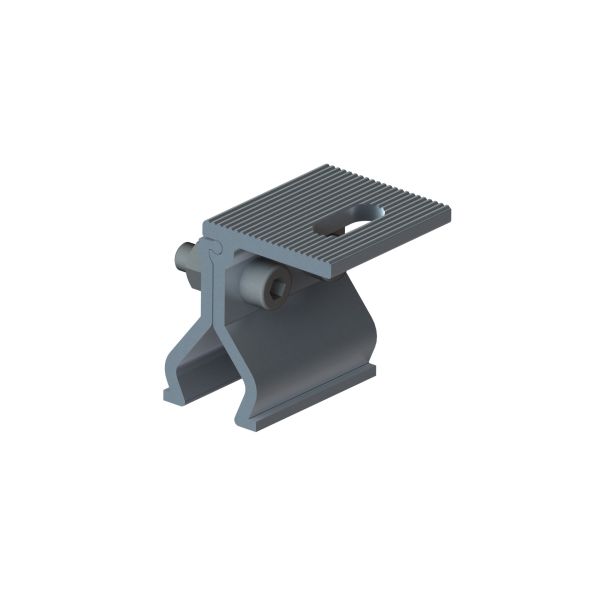

	HCR03	Architectural Seam clamp III	Clamps	MRA2
	H4L0000A	Rail 35	Racking	MRA
	HAC03	Rail 35 joiner	Racking	MRA
	A735	Mid clamp	Racking	All
	A835	End clamp	Racking	All
	H6WL0000S	Earthing plate	Earthing	MRA
	ED02	Earthing lug	Earthing	MRA
