Trapezoid Metal Roof Mount system Commercial solar photovoltaic system

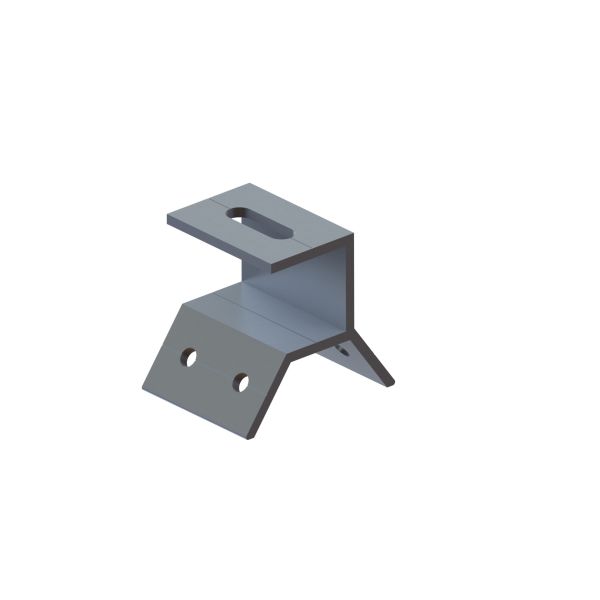

Except for L-feet, T-type clamp is also a choice for trapezoid roof. The bottom of the clamp is same shape and angle with the roof shape and angle, so they can match perfectly. And because the contact area with the roof is relatively large, so the strength will be better. The T-type clamps normally have two ways to connect with the roof, one is tapping the screw on both sides, total using 4pcs, the advantage is no need to consider the beam position under the roof; another fixing way is to use a long screw tapping on the top, same as L-feet, this way is to connect the clamp with beam under the roof instead of the roof tile.

T-type clamp is mainly used in China due to clamp and roof are one - to - one correspondence, not universal. It means we have to know the shape, size and angle of the roof accurately, and the slightest deviation could make it impossible to install.

As a PV enterprise, Lipu Metal has been focusing on the R&D, production and sales of solar mounting system and PV frames. Due to Lipu Metal has a professional design and development team, so it has obtained nearly 17 domestic and foreign product patents so far. Professional production and QC team, which is strictly controlling the quality from raw materials to finished products accordance with the ISO9001 international quality system standards.

Lipu Metal can not only produce conventional PV mounting system products and accessories, but also can offer the design which will meet the customized needs. According to the situation of different projects, Lipu Metal will provide matched mounting system solutions. From the beginning of purchasing from Lipu Metal, customers can enjoy a series of supporting services, including field investigation, measurement & calculation, design, installation support and after-sales service.

We respect roofs!

Technical Data

Installation steps

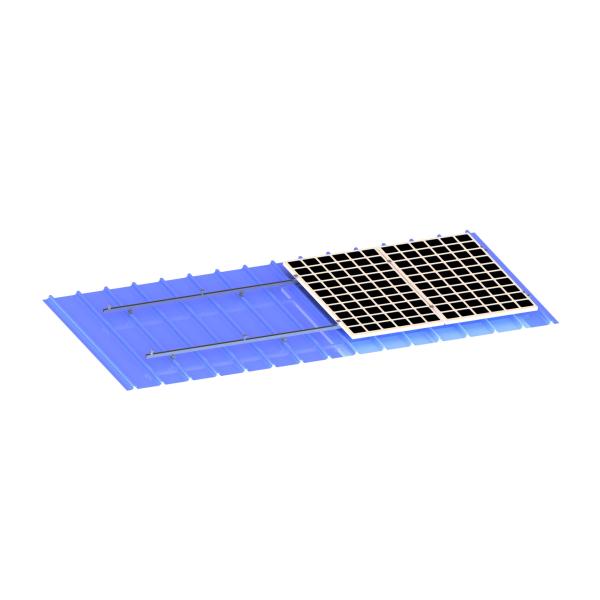

1. T clamp installation	2. Rail installation	3. Panel installation

Metal Roof Mount System Components

Photo	Item No	Name	Product type	Product line
	HTD	T clamp	Clamps	MRA2
	H4L0000A	Rail 35	Racking	MRA
	HAC03	Rail 35 joiner	Racking	MRA
	A735	Mid clamp	Racking	All
	A835	End clamp	Racking	All
	H6WL0000S	Earthing plate	Earthing	MRA
	ED02	Earthing lug	Earthing	MRA
