Railless Silver Metal Roof Solar Mounting System 40m/S Racking
Railless Silver Metal Roof Solar Mounting System 40m/S Racking
Railless Silver Metal Roof Solar Mounting System 40m/S Racking
Railless Silver Metal Roof Solar Mounting System 40m/S Racking
Specifications
Brand Name :
LP SOLAR
Model Number :
MRA2-Railless
Certification :
ISO 9001, AS1170
Place of Origin :
Jiangsu, China
MOQ :
3KW
Price :
Negotiable
Payment Terms :
L/C, T/T
Supply Ability :
30 Megawatts per month
Delivery Time :
5~15 days
Packaging Details :
Carton or pallet
Name :
Railless Metal Roof Mounting system
Material :
High grade aluminum and A2-70 hardware
Color :
Silver
Surface treatment :
Anodized
Place of origin :
Jiangsu, China
Warranty :
10 years
Description

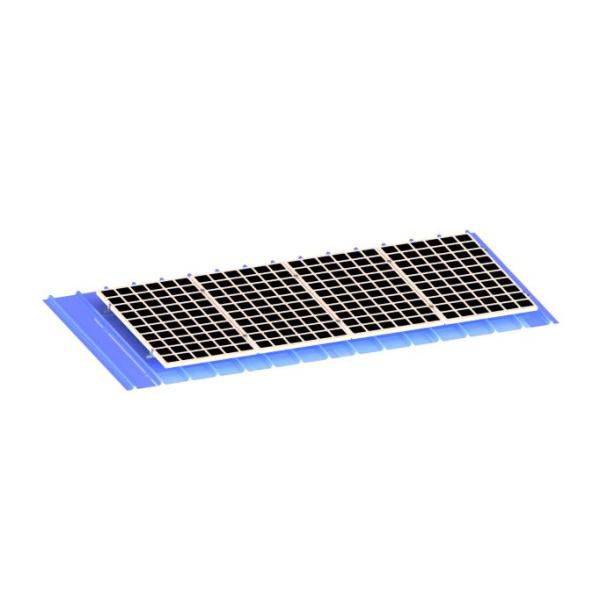

Railless Metal Roof Mount system Tin Roof Commercial solar photovoltaic system

Railless structure also called Mini rail structure, it refers to the design of photovoltaic bracket structure that only uses clamps and mid clamp and end clamp to fix panel without using Rail. This design is mostly used for metal roof mounting. Normally, this type design will use clamps or mini rails around 200~250mm or other customized length to fix on the metal roof.

But this type design does not fit all roofs, it can only used on small wind load and snow load, and the crest spacing of the metal roof is also suitable.

The Railless structure system is light weight and easy to install, and the structure is flexible too, which is not only convenient for transportation, but also greatly reduces the site construction time and labor cost.

LP SOLAR engineer team can offer different solutions for your Standing seam roof according to your detail roof situation and detail requirements.


We respect roofs!

Technical Data

Product Name
Railless Metal Roof Mounting system
Application T-type metal roofs
Material
 High grade aluminum and A2-70 hardware
Wind Load
Max 40 M/S
Snow Load
Max 1.0 KN/M²
Applicable Module
Framed or Frameless
Module Orientation
Portrait or Landscape
Standard
JISC8955:2017,GB50009-2012,GB50797-2012
Dimensions
Customized
Warranty
10 Years
Work life 25 Years


Installation steps

1.Railless clamp or mini rail installation 2. Panel installation
Railless Silver Metal Roof Solar Mounting System 40m/S Racking Railless Silver Metal Roof Solar Mounting System 40m/S Racking


Metal Roof Mount System Components

Photo Item No Name Product type Product line
Railless Silver Metal Roof Solar Mounting System 40m/S Racking

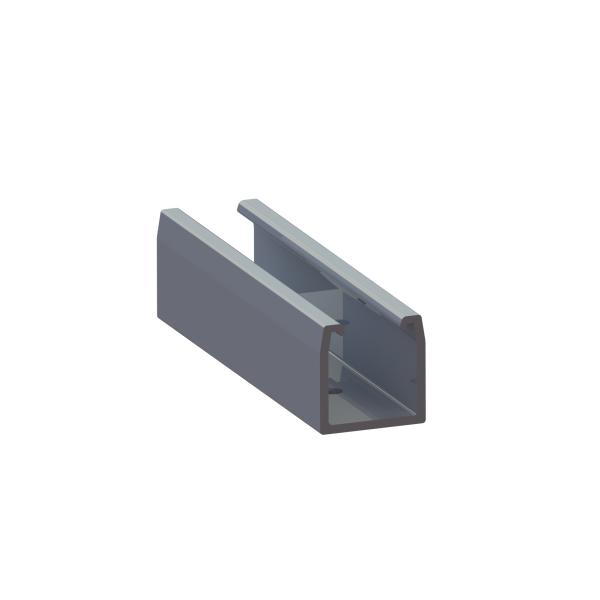

U-rail

Clamps

MRA2
Railless Silver Metal Roof Solar Mounting System 40m/S Racking

A735

Mid clamp

Racking

All
Railless Silver Metal Roof Solar Mounting System 40m/S Racking

A835

End clamp

Racking

All
Railless Silver Metal Roof Solar Mounting System 40m/S Racking

H6WL0000S

Earthing plate

Earthing

MRA
Railless Silver Metal Roof Solar Mounting System 40m/S Racking

ED02

Earthing lug

Earthing

MRA
