Slope Field Ground Mounting System Solar Power Station Solar Photovoltaic System

In view of the problems of large quantities of PV support foundation works, difficult structure adjustment, high cost of foundation works and long construction period under complex terrain and geological conditions in mountainous areas, LP Solar's technical team carried out innovative design on the basis of traditional support structure and developed a new support structure suitable for slope field area.

Row holes on the structure makes the field adjustment simple. The construction personnel can find the corresponding fixing points according to the actual situation and install and fix them with fasteners. Compared with traditional support structure, the mountain photovoltaic support system saves the cost and expense of land leveling, as well as the construction time and labor cost on site.

When making the structure design, LP Solar's technical team complies with <Code for design of photovoltaic support structures> (NB / T10115-2018), <Code for design of steel structures> (GB50017-2003) and < Load design guide on structures for photovoltaic array > (JIS C 8955:2017), reasonable design and sufficient strength ensure the safety and stability of the whole structure. We will also send the material sample to third-party lab to verify the accuracy of the material parameters we used, verify the safety of our design again.

Technical Data

Advantage

• Strong compatibility
• High cost performance
• High-strength steel

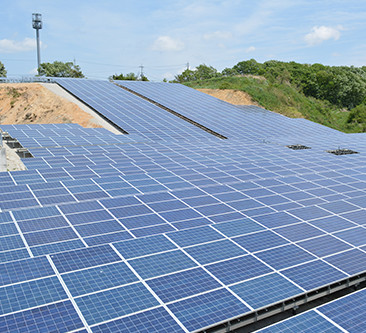

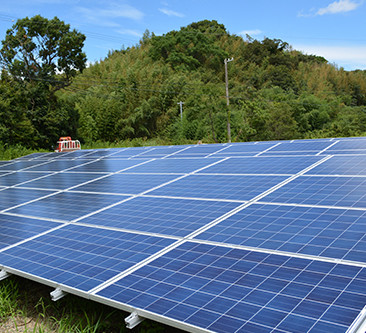

Project photo reference

About LP Solar
• Lipu Metal (Jiangyin) Co., Ltd was previously called Leapton Metal (Suzhou) Co., Ltd before;
• November 30th, 2018, Lipu Metal (Jiangyin) established, the factory was relocated from Suzhou to Jiangyin;
• The new factory covers an area of about 21,300 square meters;
• The annual capacity of 500MW for mounting system and 500MW for aluminum frames;
• Lipu Metal has obtained 17 product patents so far.

About Factory

Raw material area	Material area	Cutting area	Producting area	Sampling area
Pre-install area	Wahouse 1	Packing area	Finish W.H. 2	Loading area
