Multi Bag High Pressure Filter Housing 1-10m2 Filtration Area For Chemical Industry
Multi Bag High Pressure Filter Housing 1-10m2 Filtration Area For Chemical Industry
Specifications
Brand Name :
SFFILTECH
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000pcs per month
Delivery Time :
20-30 days
Packaging Details :
wooden case
Name :
Waste bag multi high pressure water filter housing
Flow rate :
80~800m3/h
Filtration Area :
1-10m2
Material :
SS304,316L,carbon steel, etc
Pressure :
0.6~1.6MPa
Bag :
2-20
Description

Waste bag multi high pressure water filter housing

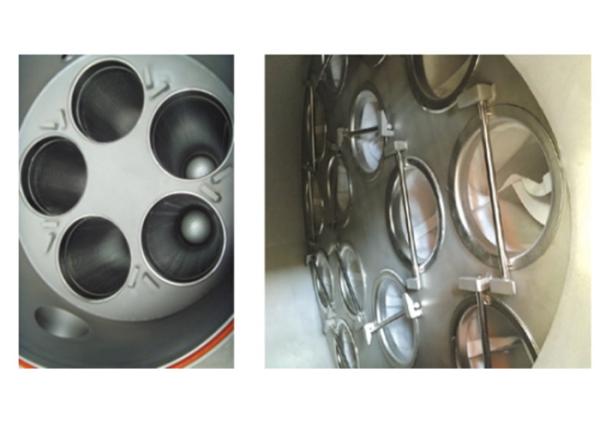

Multi Bag Filter Housing
Filter body is mainly composed of three parts:the filter container,supporting basket and the filter bag,filter process.
Replace or clean the filter bag,just loosen the ring bolt,rotating the hand-wheel lifting cover,can be removed.
Multi bag filter has the characteristics of large capacity,large amount of contamination,obvious filtration effect,simple poeration,low cost operation.

High pressure water filter housing Applications
Widely used in chemical industry,industrial wastewater,microelectronics,power plants,textile dyes,papermaking,water prefabricated,paint and ink,food and beverage,cosmetics,chemicals,petroleum products,electroplating,hot solvent,emulsion,ultrasonic cleaning machine,high pressure cleaning machine,industrial water,paint,ink,wax and other industry pre filter or filter.

High pressure water filter housing Features
Can be customized for import and export:

side in side out,side in bottom out,bottom in and out, etc.
Filtration precision:1um-1000um optional.
The design flow can meet the requirements of 50~1000m3/h.
The material of SS304,316L,carbon steel, etc.

High pressure water filter housing selection data sheet

Model Bag

Filtration Area

m2

 D A B C H N1/N2 Maximum flow
(m3/H)		 Pressure
(Mpa)
QH02P2S 2 1 Ø400 1100 420 650 1600 DN80 80 0.6~1.6
QH03P2S 3 1.5 Ø450 1100 420 700 1600 DN100 120 0.6~1.6
QH04P2S 4 2 Ø500 1100 420 750 1650 DN125 160 0.6~1.6
QH05P2S 5 2.5 Ø550 1150 450 800 1700 DN150 250 0.6~1.6
QH06P2S 6 3 Ø600 1150 450 2000 1700 DN150 240 0.6~1.6
QH07P2S 7 3.5 Ø650 1250 500 2200 1750 DN200 280 0.6~1.6
QH08P2S 8 4 Ø700 1250 500 2230 1750 DN200 320 0.6~1.6
QH10P2S 10 5 Ø800 1250 600 2470 1800 DN250 360 0.6~1.6
QH12P2S 12 6 Ø850 1810 600 2500 1800 DN250 480 0.6~1.6
QH14P2S 14 7 Ø900 1320 650 1200 1850 DN300 560 0.6~1.6
QH16P2S 16 8 Ø1000 1320 650 1300 1850 DN300 640 0.6~1.6
QH20P2S 20 10 Ø1100 1350 650 1400 1900 DN350 800 0.6~1.6

Table number number of the container bag to put up the bag limit, single machine can be 50 above the bag.
The theoretical flow refers to the maximum flow bag initial surface area.
