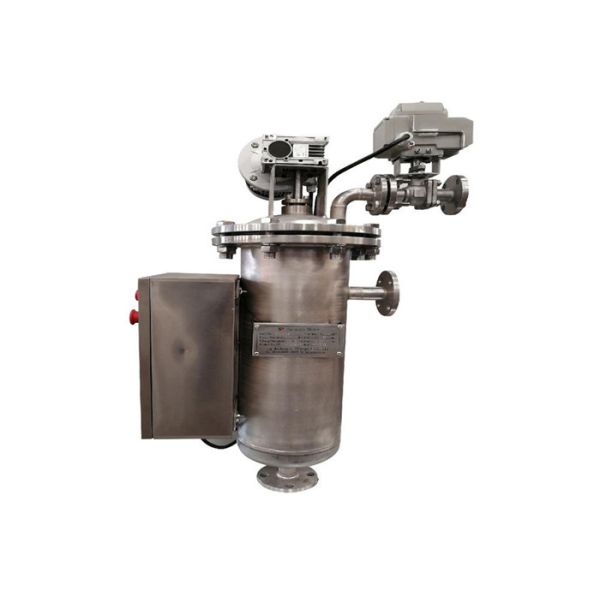

Automatic Scraper Industrial Filter Housing Self Cleaning For Solid Liquid Separation
Automatic Scraper Industrial Filter Housing Self Cleaning For Solid Liquid Separation
Specifications
Brand Name :
SFFILTECH
Certification :
ISO9001:2008
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000pcs per month
Delivery Time :
20-30 days
Packaging Details :
wooden case
Name :
Automatic Scraper Filter Housing Self cleaning Filter For Water Treatment
use :
water treatment
Function :
Solid-liquid Separation
Material :
SUS304
Type :
Straight
Description

Automatic Scraper Filter Housing Self cleaning Filter For Water Treatment

Product Introduction:

TPW series self-cleaning filter (TPW Filter for short), is the high efficiency scraping self-cleaning filter removing the impurities particles on the filter element outside by mechanical scraping, it continuously filters on-line. TPW filter is designed for fine and accurate filtration ranging from20-500 micron. It can avoids extruding and breaking the impurities and is capable of the filtration for water and liquids viscosity up to 800000cps.

Features:

l Automatic 24-hour on-line filtration, no frequent changing out and cleaning

l No disposable filter media consumption, save filter media cost and environment cost

l Adopt outside scraping, Stainless steel scraping blade, good impurity removing performance

l Top quality V-SLOT filter element, accurate slots, extremely smooth, easy to scrap

l Very low pressure drop, stable flowrate, save energy consumption

l Close filtration, no dangerout liquid leakage, good for safe production

l Discharge waste liquid with high impurity concentration, avoid valuable liquid loss

Application:

Products are widely used in water treatment, papermaking ,petroleum ,bio-pharmaceuticals, printing ink, grease, food and beverage, etc.

Technical parameter:

Model TPW11 TPW22 TPW34 TPW75 TPW100 TPW136
Filter area(cm2) 0.11 0.22 0.34 0.75 1.00 1.36
Volume (L) 16 30 50 145 195 320
Inlet/Outlet (mm) DN40-DN50 DN50-DN80 DN50-DN100 DN65-DN100 DN80-DN125 DN100-DN150
Drain outlet (mm) DN40 DN50
Applicable liquid Viscidity (<800000cps),Impurity<1000ppm
Filtration Precision 20-500μm
Cleaning pressure diff. 0.05MPa
Diff pressure switch Differential pressure transmitter(DPT) or Differential pressure switch(DPS)
Gear motor 180W,380V, IP55
Filter element type V-SLOT, 316L/304
Housing material 316L/304/CS
Scraping blade material 304/316L
Seal material NBR/VITON(FKM)
Discharging valve Pneumatic ballvalve/ Electric ball valve

Automatic Scraper Industrial Filter Housing Self Cleaning For Solid Liquid SeparationAutomatic Scraper Industrial Filter Housing Self Cleaning For Solid Liquid Separation
