Universal Design Cartridge Filter Housing SS316 For Coconut Oil Processing Machine
Universal Design Cartridge Filter Housing SS316 For Coconut Oil Processing Machine
Specifications
Brand Name :
SFFILTECH
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000pcs per month
Delivery Time :
20-30 days
Packaging Details :
wooden case
Name :
stainless steel filter cartridge housing for coconut oil processing machine
Material :
SUS304,SUS316
suitable filter cartridge :
PP filter cartridge,pleated filter cartridge
maximum working pressure :
100psi
Usage :
filter
connection way :
threaded connection
Description

stainless steel filter cartridge housing for coconut oil processing machine

Product Parameter

Product name

Cartridge Filter Housing

Product model

1YB1

Material

SUS304,SUS316

suitable filter cartridge Size

ID 28-30mm,OD 60-63mm,length 10inch-40inch

maximum working pressure

100psi

suitable filter cartridge

PP filter cartridge,pleated filter cartridge

connection way

threaded connection

Usage

pretreatment

Product Fuctions

1. Filter housing is made with SS304/SS316.

2. Filter housing is used for removing solid particle bacteria,colloid and other impurities from liquid,

3. Filter housing has features of high-pressure resistance, ease replacement of elements,small space,good filter effect.

4. Fine filter is widely used in water pretreatment and post treatment systems in many fileds.

5. Max working pressure is 150psi.

6. Polished finish surface or matt finish surface

Universal Design Cartridge Filter Housing SS316 For Coconut Oil Processing Machine

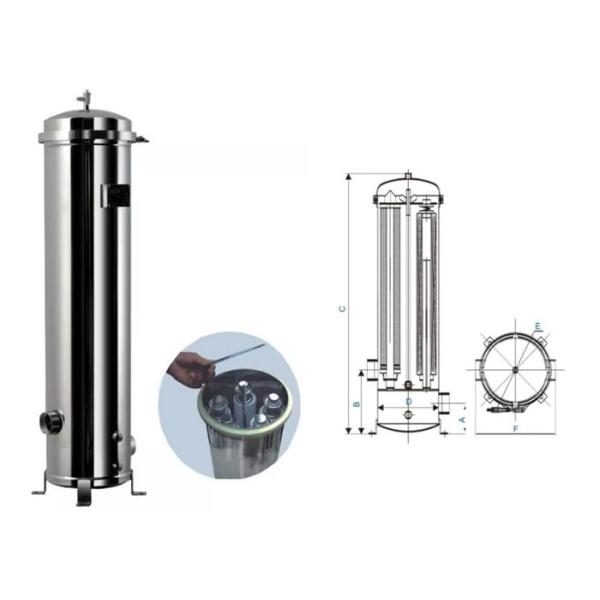

Product Technical Parameters

Model

A(mm)

B(mm)

C(mm)

D(mm)

E(mm)

F(mm)

In/Out

Drain

YB1-W3L1

120

220

600

Φ170

Φ220

230

1" -1 1/2"

1/4" -1/2"

YB1-W3L2

120

220

850

Φ170

Φ220

230

1" -1 1/2"

1/4" -1/2"

YB1-W3L3

120

220

1100

Φ170

Φ220

230

1" -2"

1/4" -1/2"

YB1-W3L4

120

220

1350

Φ170

Φ220

230

1" -2"

1/4" -1/2"

YB1-W5L1

120

220

610

Φ200

Φ250

260

1" -1 1/2"

1/4" -1/2"

YB1-W5L2

120

220

860

Φ200

Φ250

260

1" -1 1/2"

1/4" -1/2"

YB1-W5L3

120

220

1110

Φ200

Φ250

260

1" -2"

1/4" -1/2"

YB1-W5L4

120

220

1360

Φ200

Φ250

260

1" -2"

1/4" -1/2"

YB1-W7L1

120

220

620

Φ250

Φ300

310

1 1/2" -2"

1/2"

YB1-W7L2

120

220

870

Φ250

Φ300

310

1 1/2" -2"

1/2"

YB1-W7L3

120

220

1120

Φ250

Φ300

310

1 1/2" -2 1/2"

1/2"

YB1-W7L4

120

220

1370

Φ250

Φ300

310

1 1/2" -2 1/2"

1/2"
