IN / OUT High Pressure Filter Housing , Multi Bag Filter Housing With 304 SS 2 Flange
IN / OUT High Pressure Filter Housing , Multi Bag Filter Housing With 304 SS 2 Flange
Specifications
Brand Name :
SFFILTECH
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000pcs per month
Delivery Time :
20-30 days
Packaging Details :
wooden case
Name :
Multi-Bag Filter Housings With 304 SS 2" Flange IN/ OUT High Pressure
Dimension(L*W*H) :
By specific machine
Filter length :
10 20 30 40 inch
operating temperature :
90°C
Filter OD :
69mm
Filtering accuracy :
0.1um 0.22um 0.45um
Description

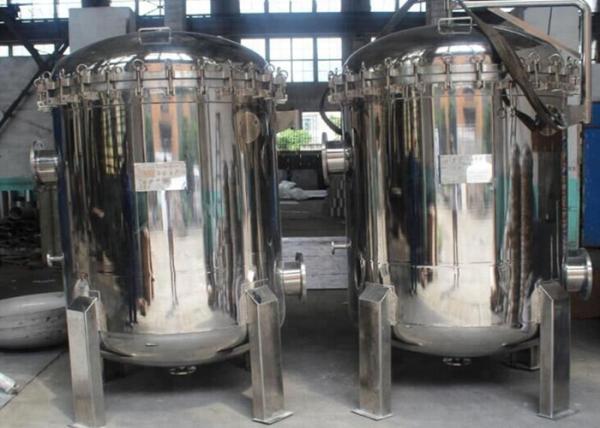

Multi Bag Filter Housings With 304 SS 2" Flange IN/ OUT High Pressure

Brief introduction

Bag filter is a kind of multipurpose filtration equipment that is of novel- structure, small volume, convenient operation, energy saving, high efficiency and strong adaptability and it works in a closed environment.

Clamp bag filter specifications parameter:

specifications Bag type Bag specifications

filter area

 Pipe Diameter

maximum flow rate
Φ167x410 4# Φ102x410 0.13 25 10
Φ167x810 3# Φ102x810 0.26 25 20
Φ219x410 1# Φ180x410 0.23 40 15
Φ219x810 2# Φ180x810 0.46 40 30

Flange bag filter specifications parameter:

specifications Number of Bags Bag Specifications filter area

maximum flow rate
Φ400x1300 2 Φ180x810 1.02 60
Φ500x1300 3 Φ180x810 1.38 90
Φ600x1500 4 Φ180x810 1.84 120
Φ650x1500 5 Φ180x810 2.3 150
Φ750x1500 7 Φ180x810 2.76 200
Φ1000x1800 10 Φ180x810 3.76

300
