Industrial Clamp Connection Stainless Steel Bag Filter Housing For Liquid Filtration
Industrial Clamp Connection Stainless Steel Bag Filter Housing For Liquid Filtration
Industrial Clamp Connection Stainless Steel Bag Filter Housing For Liquid Filtration
Industrial Clamp Connection Stainless Steel Bag Filter Housing For Liquid Filtration
Industrial Clamp Connection Stainless Steel Bag Filter Housing For Liquid Filtration
Industrial Clamp Connection Stainless Steel Bag Filter Housing For Liquid Filtration
Specifications
Brand Name :
SFFILTECH
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000pcs per month
Delivery Time :
20-30 days
Packaging Details :
wooden case
Name :
Industrial Clamp Connection Stainless Steel Bag Filter Housing
Function :
Purification Filter
Structure :
Cartridge
Connection :
Clamp/Flange
Material :
Stainless Steel
Application :
Liquid Filtration
Description

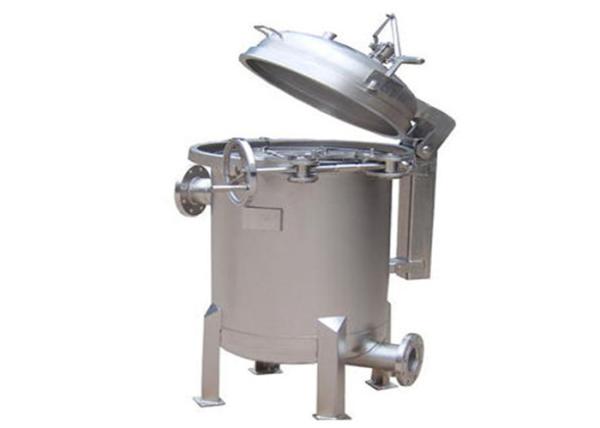

Industrial Clamp Connection Stainless Steel Bag Filter Housing

Industrial Clamp Connection Stainless Steel Bag Filter Housing Specifications:

Model Diameter Height Bag Size Bag Quality Flow Rate(m³/h)
XL1 400 1550 #1 Two 80
XL2 500 1550 #2 Three 120
XL3 550 1550 #3 Four 160
XL4 600 1550 #4 Five 200

Product Application

Stainless Steel Cartridge filter housing also called precision filter.The barrel shell is generally made of stainless steel, and the inner part is made of PP Melt Spinning Cartridge, wire winding, folding, titanium filter element, activated carbon filter element and other tubular filter elements are adopted as filter elements; Different filter elements are selected according to different filter media and design process to meet the requirement of effluent water quality.

Widely used in liquid purification of water, oil, paint, and solid-liquid separation in machinery, metallurgy, chemical industry, textile, printing and dyeing, electroplating, medicine, food and other industries.

SPECIFICATIONS FOR SS Flter Housing
Product Name
Stainless Steel filter housing
Type
Filter housing
Dimension
Customized design
Working Temperature
5 ℃-40 ℃ ( Special temperature can be customized )
Work Pressure
0.6MPa
Body Material
Stainless steel (SUS304,SUS316L)
Filtration accuracy
0.1-100μm
Interface Type
Quick opening, Flanged , Eye-bolt Thread
Outside treating
Dumb smooth blasting,Mirror polishing, Electrolytic polishing
Lead Time
Around 3-5 days after order confirmed
Package
PP bag inside, Inner carton, Export carton outside, or Wooden box as your requiremen

Main Features

(1) High filtration accuracy, filter element aperture is uniform;

(2) Low filtration resistance, big flux, Strong decontamination capability,Long service life;

(3) Filter is clean and no second pollution to the filter media;

(4) It also can filter acid, alkali and other chemical agents;

(5) High-intensity,heat-resistant,deformation resistance;

(6) Low price, low running costs, easy to clean, filter element can be replaced;

Industrial Clamp Connection Stainless Steel Bag Filter Housing For Liquid FiltrationIndustrial Clamp Connection Stainless Steel Bag Filter Housing For Liquid Filtration
