SS 304/316L Stainless Steel Water Filter Housing For Water Treatment
SS 304/316L Stainless Steel Water Filter Housing For Water Treatment
Specifications
Brand Name :
SFFILTECH
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000pcs per month
Delivery Time :
20-30 days
Packaging Details :
wooden case
Name :
industrial water filter housing
Weight :
30
Type :
single bag
Size :
529-923MM
Function :
Water Purification Plant
Application :
Water Purification
Description

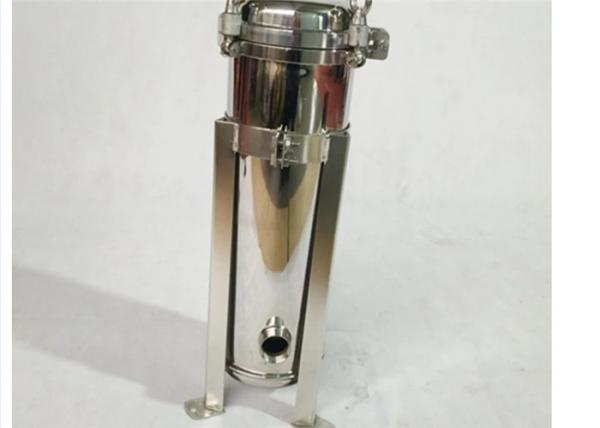

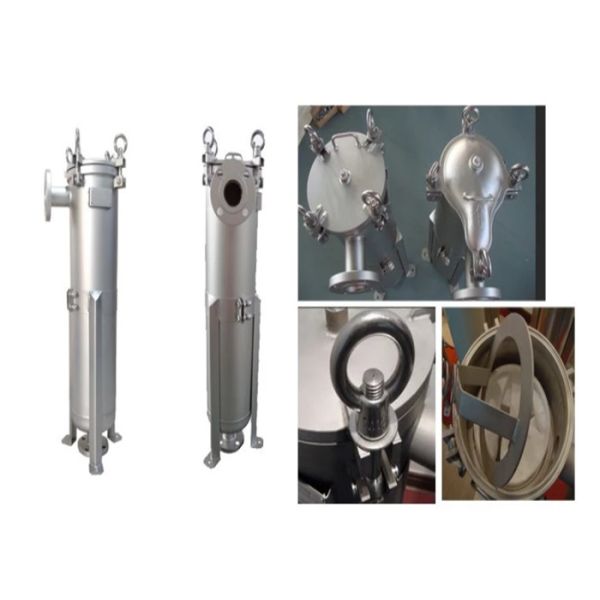

Stainless Steel Industrial water filter housing SS 304/316L for Water Treatment

SIngle bag filter housing with Side IN&OUT which is easy to open for changing bags and cleaning. It has two sizes, which Can install international standard size of filter bag.

● For filter bags sizes 01 and 02;
● 01 Size - 20,000 lt per hour flow for Nominal rated bags;
● 02 Size - 40,000 lt per hour flow for Nominal rated bags;
● Side entry inlet connection;
● Available in 304 or 316 stainless steel;
● 2" ANSI Inlet and Outlet;
● Buna NTM seals standard (Viton also available)
● Maximum operating pressure of 10 bar (standard model)

SS 304/316L Stainless Steel Water Filter Housing For Water Treatment

Model (standard)
MAX FLOW
MAX PRESSURE
MAX TEMP
PIPE SIZE
MATERIAL
SAM-1P
100 GPM
200 PSI
250 F
2"
304/316
SAM-2P
220 GPM
200 PSI
250 F
2"
304/316

Model
SAM-1P
SAM-2P
Max Flow (m3/h)
20
40
Filtration Area (m2)
0.25
0.5
Volume (L)
15.5
27
Operating Data
Max 6car/120C respectively 12bar/30C
Install Height(MM)
Approx 850
Approx 1120
Net Weight (KG)
Approx 27
Approx 29
Connection (IN&OUT)
2" Flange/Pipe
2" Flange/Pipe
