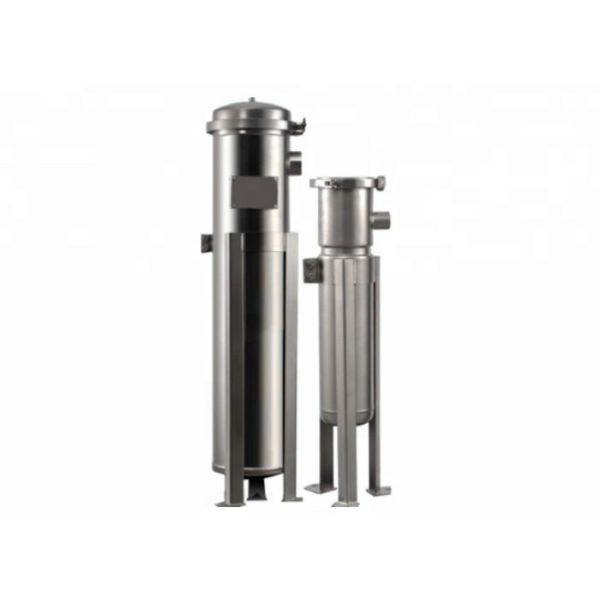

Multifunction Stainless Steel Cartridge Filter Housing For Water Treatment
Multifunction Stainless Steel Cartridge Filter Housing For Water Treatment
Specifications
Brand Name :
SFFILTECH
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000pcs per month
Delivery Time :
20-30 days
Packaging Details :
wooden case
Name :
Stainless steel cartridge filter housing
Warranty: :
1 Year
maximum wirking pressure: :
100Psi
material: :
SUS304,SUS316L
After-sales Service Provided: :
Video technical support, Field installation, commissioning
Keywords :
Stainless steel cartridge filter housing
Description

Stainless steel cartridge filter housing, fine filter for water treatment

Technical parameters:

(1) Housing material: SUS304, SUS316L;

(2) End cap material: ABS, SUS304, and SUS316L;

(3) Max working pressure: 250PSI;

(4) Surface polishing treatment or mechanical polishing;

(5) Suitable membrane size: 4040, quantity: 1-4PCS;

(6) Connection way: end port, thread connection.

Model A(mm) B(mm) C(mm) D(mm) E(mm) F(mm) In/Out Drain
YB1-W3L1 120 220 600 Φ170 Φ220 230 1" -1 1/2" 1/4" -1/2"
YB1-W3L2 120 220 850 Φ170 Φ220 230 1" -1 1/2" 1/4" -1/2"
YB1-W3L3 120 220 1100 Φ170 Φ220 230 1" -2" 1/4" -1/2"
YB1-W3L4 120 220 1350 Φ170 Φ220 230 1" -2" 1/4" -1/2"
YB1-W5L1 120 220 610 Φ200 Φ250 260 1" -1 1/2" 1/4" -1/2"
YB1-W5L2 120 220 860 Φ200 Φ250 260 1" -1 1/2" 1/4" -1/2"
YB1-W5L3 120 220 1110 Φ200 Φ250 260 1" -2" 1/4" -1/2"
YB1-W5L4 120 220 1360 Φ200 Φ250 260 1" -2" 1/4" -1/2"
YB1-W7L1 120 220 620 Φ250 Φ300 310 1 1/2" -2" 1/2"
YB1-W7L2 120 220 870 Φ250 Φ300 310 1 1/2" -2" 1/2"
YB1-W7L3 120 220 1120 Φ250 Φ300 310 1 1/2" -2 1/2" 1/2"
YB1-W7L4 120 220 1370 Φ250 Φ300 310 1 1/2" -2 1/2" 1/2"
