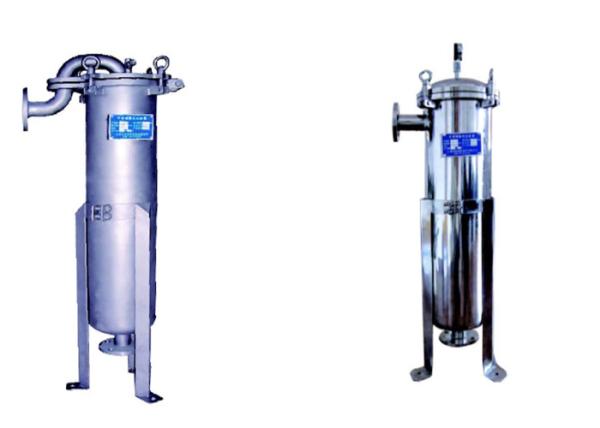

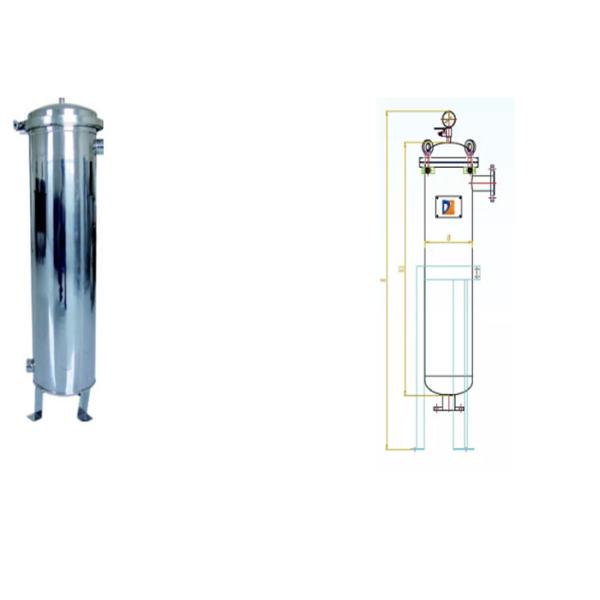

Industrial Single Bag Filter Housing , Water Filter Housing Stainless Steel
Industrial Single Bag Filter Housing , Water Filter Housing Stainless Steel
Specifications
Brand Name :
SFFILTECH
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000pcs per month
Delivery Time :
20-30 days
Packaging Details :
wooden case
Name :
stainless steel single bag water filter housing liquid filtration
Working pressure: :
0.5 Mpa
Total height: :
220 mm
Filtering area: :
0.5 m2
Max flow: :
40 t/h
Housing diameter: :
220 mm
Description

stainless steel single bag water filter housing liquid filtration

The single bag filter is supported by the stainless steel mesh inside . the liquid flows into the chamber via inlet , and go through the filter bag . the impurities will be blocked into the filter bag . the filter bag can be reused repeatedly after washing or cleaning and it's easy to change the bag . the filter is features of no material consumption and low operation cost .

Application

Chemical industry , pharmacy , automobile industry , light industry , food industry , electroplating industry , etc

Advantages

High capacity , small size

Easy to replace the filter bag , no need clean and labor saving

After cleaning the filter bag can be used repeatedly to save cost

Filter precision reached 0.5um

Lower leakage risk ensures high quality

High working pressure , low pressure loss , low operation cost and energy saving

Wide application , flexible use , various installation model for choice

Remark

Max capacity is the reference value base on water test , the actual can be different because of liquid viscosity , solid content and pressure difference

The material can be carbon steel , SUS304 and SUS316L and Plastic

According to the nature and temperature of the material filtered , the O-Ring"s material can be customized to meet your needs

The lock method of the filter can be clamp type , hasp type and eyebolts type .
