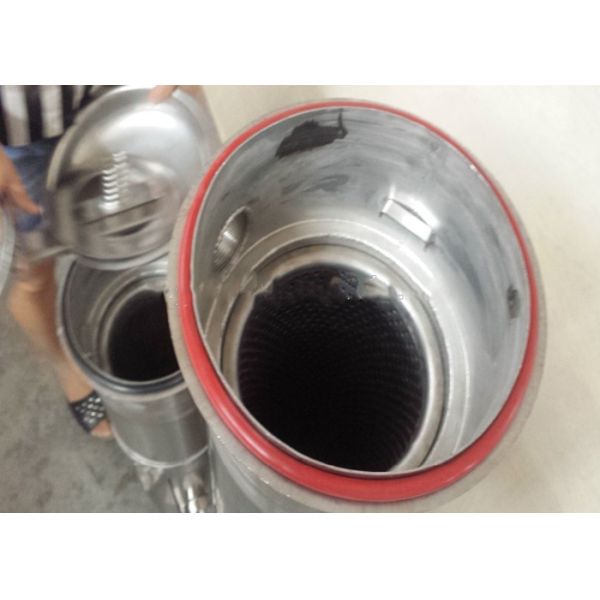

410mm - 810mm Stainless Steel Water Filter Housing Single Bag For Liquid Filtration
410mm - 810mm Stainless Steel Water Filter Housing Single Bag For Liquid Filtration
Specifications
Brand Name :
SFFILTECH
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000pcs per month
Delivery Time :
20-30 days
Packaging Details :
wooden case
Name :
410mm - 810mm single bag Stainless steel water bag filter housing
Size: :
410&810mm
Cover :
clamp open type
Material: :
Stainless Steel 304
Application :
filter
Description

410mm - 810mm single bag Stainless steel water bag filter housing

Working Principle

Bag filter is a widely used for liquid filtration,it can remove the particles of different size from liquid,in order to achieve liquid filtration,purification,separation,recovery purposes.It consists of three parts:bag housing,supporting basket and filter bags.According to flow rate,you may use multiple bags in a bag housing.First,the liquid enter into the housing from the inlet,which may placed in the side or on the top,and then flow into the filter bag which is braced by basket.Due to the impact pressure of fluid,the bag will extend and the liquid get evenly filtered through the bag and flow out of the outlet pipe.Impurities are trapped in the bag,the filtration process is complete.When you replace or clean the bag,just simply loosen the bolt,rotary hand wheel lifting the lid,and get the bag.

Technical Data

Operation¢ pressure:100PSI-300PSI
Operation temperature:5°C-80°C(or customized¢ with certain temperature)
Filtration¢ precision:1μm-200μm
Number of filter bag:1-12 pcs
Length of filter¢ bag:410mm & 810mm
Capacity of each filter : 0.1 m3/h -500 m3/h

Features:

Selectivity:from 1 bag-12 bags
- Individual Bag Locking to ensure
- Prefect sealing
-Custom Made order
- Individual Bag Locking to ensure
- Prefect sealing
- Custom Made order
- SS304/SS316/SS316L Material
Available
- Thread / flange connection optional

410mm - 810mm Stainless Steel Water Filter Housing Single Bag For Liquid Filtration
