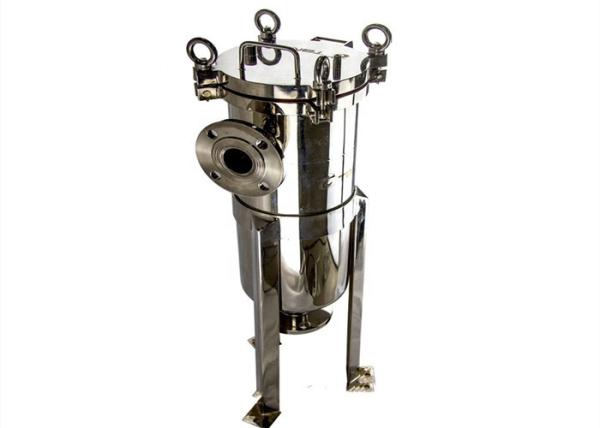

Single / Multi Bag Filter Housing SUS 304 Or 316L Material For Pre Filtration
Single / Multi Bag Filter Housing SUS 304 Or 316L Material For Pre Filtration
Specifications
Brand Name :
SFFILTECH
Certification :
CE
Place of Origin :
China
MOQ :
Multi Filter Bag Housing
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000pcs per month
Delivery Time :
20-30 days
Packaging Details :
wooden case
Name :
Stainless Steel 304/316 Single/ Multi Filter Bag Housing for Pre-filtration
Interior: :
mirror polish or electro polish
Housing material: :
SUS 304 or 316L
design pressure: :
0.4-1.6MPa
After-sales Service Provided: :
Engineers available to service machinery overseas
Keywords :
Multi Filter Bag Housing
Description

Stainless Steel 304/316 Single/ Multi Filter Bag Housing for Pre-filtration

Stainless Steel 304/316 Single/ Multi Filter Bag Housing for Pre-filtration is a pressure-type filter device, the bag is expanded and pasted on screen by impaction of the liquid, and then liquid through the filter bag and screen out, the filtration process is completed. The particles are blocked by the filter bag inside the filter bag and can be removed when cleaning and changing the filter bag. It is very convenient to replace the filter bag and basically no material loss. Tanvi single bag and multi-bag stainless steel bag filter, made of SS304 or SS316, head and cylinder connection for the fast-mounted flange, and filter bag is fixed by the flange compression.

The pore size of Stainless Steel 304/316 Single/ Multi Filter Bag Housing for Pre-filtration can be divided into 0.5μm, 1μm, 3μm, 5μm, 10μm, 20μm,30μm, 60μm, 100μm and so on, choosing a accuracy pore size depends on the application occasions The number of filter bags in bag filter can be from one to dozens , which is mainly determined by the throughput.

Specification

Flow

( Ton/Hr)

 Barrel Size Inlet/Outlet Bag size

Number

of Bag

12-30Ton/Hr

 φ220×950×2 DN50 DN50Flange φ180*810mm 1PCS

30-60Ton/Hr

 φ400×760×2.5 DN65Flange φ180*810mm 2PCS

50-100Ton/Hr

 φ450-500×760×2.5 DN80Flange φ180*810mm 3PCS

100-120Ton/Hr

 φ600×760×3 DN100Flange φ180*810mm 4PCS

120-150Ton/Hr

 φ650×760×3 DN125Flange φ180*810mm 5-6PCS

150-210Ton/Hr

 φ700×760×3 DN125Flange φ180*810mm 7PCS

200-250Ton/Hr

 φ800×760×3 DN150Flange φ180*810mm 8PCS

Stainless Steel 304/316 Single/ Multi Filter Bag Housing for Pre-filtration

Features&Benefits
  • Filter bag leakage probability is small, effectively guarantee the quality of the filter.
  • Bag filter can carry a greater working pressure, pressure loss is small, low operating costs, energy saving
  • Filter bag filtration accuracy continues to increase, has reached 0.5μm.
  • Bag filter treatment capacity, small size, high dirty holding large capacity.
  • Convenient and quick to change the filter bag, and the filter is no-clean, saving labor and time.
  • Filter bags can be used repeatedly after cleaning, cost savings.

Single / Multi Bag Filter Housing SUS 304 Or 316L Material For Pre Filtration
