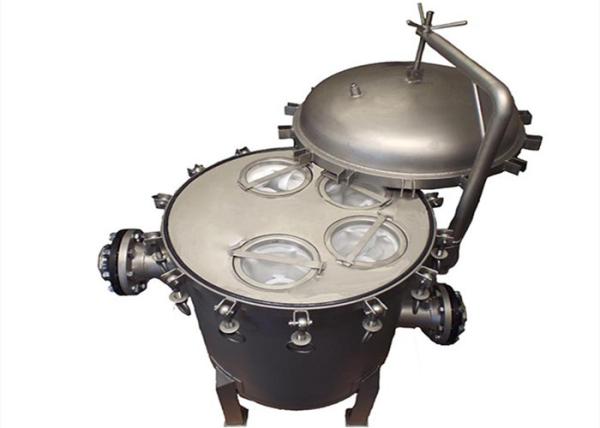

Stainless Steel Multi Bag Filter Housing 2P2S Wastewater Filtration Equipment
Stainless Steel Multi Bag Filter Housing 2P2S Wastewater Filtration Equipment
Specifications
Brand Name :
SFFILTECH
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000pcs per month
Delivery Time :
20-30 days
Packaging Details :
wooden case
Name :
good quality multi bag filter housing 2P2S for industrial
Weight: :
standard weight
Warranty: :
1 Year
Inlet&outlet connection: :
flange
Working pressure: :
0.1-1.0 Mpa
Bags Size: :
#1, #2, #3, #4, #5
Description

good quality multi bag filter housing 2P2S for industrial

Stainless Steel Bag Style Filter Housing Engineering Specifications:

Filter Housing Model Name
JL-3P2S
JL-4P2S
JL-5P2S
JL-6P2S
Filter Bag Type(mm)
180*810 mm (7''*32'')
Filter Area(㎡)
1.5
2.0
2.5
3.0
Max Flow Rate(m³/h)
120
160
200
240
Designed Pressure(Mpa)
1.0
1.0
1.0
1.0
Material
glass bead blast
Connection Vessel
flange
Inlet/Out Dimension
DN25 DN38 DN50 DN80 DN100
Surface Finish
glass bead blast
Sealing Ring
Silicone, Fluororubber, PTFE, Bunan rubber, Teflon
Operate Temperature
80℃

Stainless Steel Multi Bag Filter Housing 2P2S Wastewater Filtration Equipment

Applications of filter housing :

1. Paints & lacquer industry
2. Wastewater treatment
3. Pharmaceutical industry
4. Food industry
5. Chemical industry
6. Beer, wine & spirit industry
7. Adhesive.

More information of filter housing

Port of shipment of filter housing : Guangzhou
The payment of filter housing : We prefer T/T and L/C
The sample of filter housing : We can provide the sample of filter housing for free, but customer have to pay for the freight.
We provide the high quality filter housin at the competitive price. The filter housing could be customized made. For more information about filter housing, please contact us.
