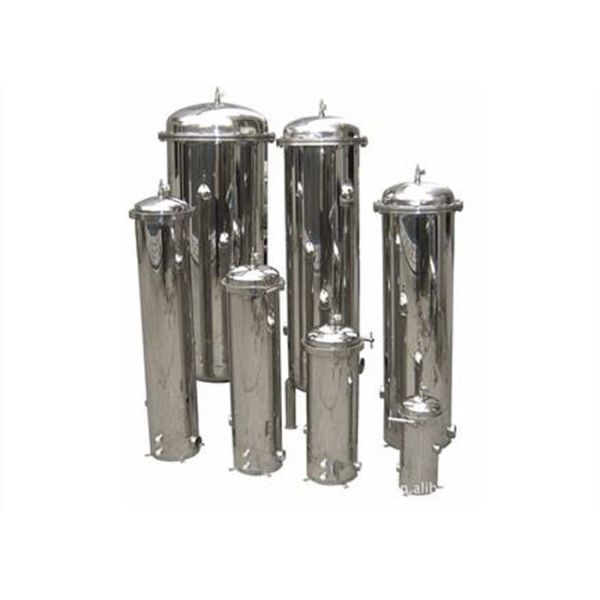

Size Customized Stainless Steel Cartridge Filter Housing CE Approved
Size Customized Stainless Steel Cartridge Filter Housing CE Approved
Specifications
Brand Name :
SFFILTECH
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000pcs per month
Delivery Time :
20-30 days
Packaging Details :
wooden case
Name :
stainless steel multi cartridge filter housing
Size :
customized
Weight :
10
Power :
as customer request
technology :
Polishing,Sandblast
Keywords :
multi cartridge filter housing
Description

Hot Sale stainless steel multi cartridge filter housing

Hot Sale upvc filter cartridge housing

Housing body material:SS304,SS316 , nice and quality

SS 316 multi cartridge filter housing ​

  • Cartridge filter, also known as security filters, generally set before the pressure vessel to remove the tiny particles whose turbidity above 1 degree, to meet the requirements of the follow-up process of water; sometimes, it is also set at the end of the entire water system to prevent small particles (such as broken resin) into the finished water.

We also customized filter housings according to requirement

Working Principle
Multi cartridge filter housing Working Principle

Cartridge filter, also known as security filter. The shell is made of high quality stainless steel, filter using molded filter, The liquid went through filter under pressure, residue left on the filter, and the filtrate outflow through the filter can effectively remove impurities in the water, sediment and suspended solids, bacteria. Molded filters are: cloth, screen, filter, sintered filter tube, wound filter, melt-blown filter, micro-porous filter and multi-function filter. Due to different filter, the filter pore size is not the same. Precision filter is between the sand filter (coarse) and a filter between ultra-filtration, filter pore size generally between 0.01-120um.For the same form of filter,it is divided into different models by their dimensions.

Technical Parameter

Parameter of Multi cartridge filter housing

Working pressure: 0.6 / 1.0 / 1.6Mpa
Body Material: Stainless steel (SUS304, SUS304L, SUS316, SUS316L).
Operating temperature: 5 ~ 40 ℃ (exceed 60 ℃ to be informed)
Design temperature: 5 ℃ -100 ℃
Replace the pressure: 0.05Mpa-0.07MPA
Filter interface: flat compression, plug-in
Cylinder and base connection mode: quick opening, flanged
Filtration accuracy: 1μm ~ 100μm
Cartridge Quantity: 1 core to 180 cores
Filter Length: 10 "~ 40"
Seal type: O-ring or flat washer
Seal Material: PTFE, rubber.
Outside treating :
 matte jet beads, mirror electrolytic polishing.
Sealing material: nitrile rubber, silicone, Viton, standard configuration for the silicone seal.
Interface Type: GB, HG, DIN, ANSI, JIS standard flanges, dental mouth, clamps and so on.
Flange Standard: GB, HG, SH, HGJ, JB, ANSL, JIS and other standards. (User-specified, please indicate the pressure level)
Manufacturing, testing standard: GB150 standard, or user-specified criteria.
