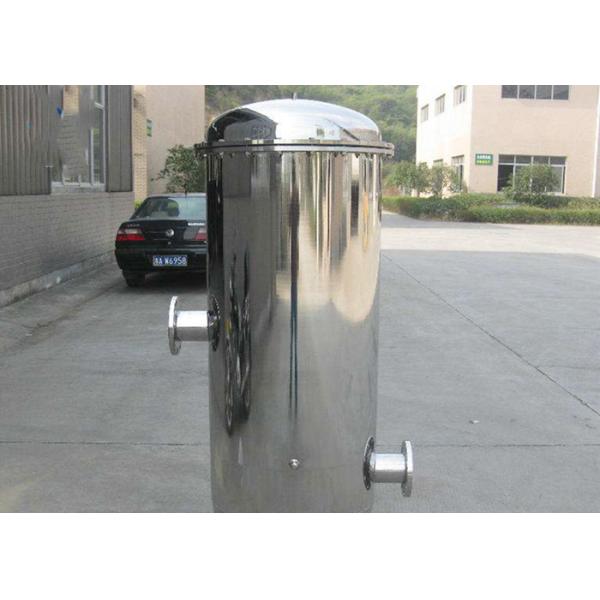

SFFILTECH Multi Bag Filter Housing Stainless Steel Material CE Certified
SFFILTECH Multi Bag Filter Housing Stainless Steel Material CE Certified
Specifications
Brand Name :
SFFILTECH
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000pcs per month
Delivery Time :
20-30 days
Packaging Details :
wooden case
Name :
Manufactory stainless steel multi cartridge bag filter housing
Type: :
Stainless Steel Filter Housing
Material: :
stainless steel 316L or 304
compatible with: :
3M bag filters
Application: :
Industrial Water Process filtration
Bag Micron: :
1 Micron polyester bags
Description

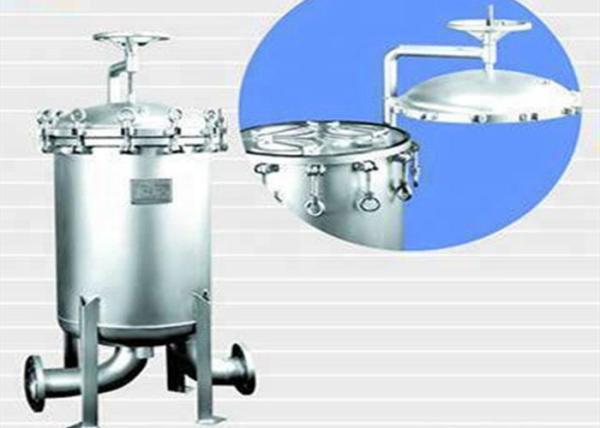

Manufactory stainless steel multi cartridge bag filter housing

Bag filters are particularly useful for filtering large volumes or high viscosity liquids, which are constructed of filter housing, filter bags, internal cage to support bags, positive sealing arrangement.

TS filter high efficiency bag filter housing are widely used in industrial wastewater filtration systems

Main advantages

01. Small probability for side-bag leakage , which effectively guarantee the filtering quality.

02. Bag type filter can bear greater working pressure, it is of small pressure loss,low operation cost and obvious energy saving .

03. Accuracy of filtration bag increased continuously, it could reach 0.5 μm at most.

04. Bag type filter large handling capacity, small volume, containing a large quantity of pollutants.

05. Based on the working principle and structure of Bag type filtering system,which is convenient to replace the filter bag and without cleaning,and time saving and labor saving.

06. Filtration bag could be use repeated after cleaning to save cost.

07. bag filter application scope is broad, with flexible operation and multiple installation .

Specifications

Technical parameters

 Design pressure: 0.96MPa 30min
Maximum working pressure:0.60MPa
Surface smoothness:Ra≤0.2
Design flow rate:Ra≤0.2
Inlet&outlet type thread or flange
Type:single bag & multi bag filter housing

Designed for bag filtration system

 Different kinds of bag support baskets to fit for
wide range of filter bags
Complete stainless steel structure Made of 100% SUS304, SUS316L, PP

Easy to clean

Surface is mechanical polished or sand blasting

passivation.
dished end to aid clean down

Specifications for single bag filter housing

No. Size Diameter Length inlet&outlet Filter bag Flow rate
Code (mm) (mm) size (m/h)
1 BJD1 220 550 2" thread, clamp, flange 1 20
2 BJD2 220 950 2" thread, clamp, flange 2 40
3 BJD4 130 650 1" thread, clamp, flange 4 10

Specifications for multi bag filter housing

No. Size Diameter Length inlet&outlet Filter bag Flow rate
Code (mm) (mm) size (m/h)
1 BJD2-2 400 1600 3" thread, clamp, flange 2*2 80
2 BJD2-3 500 1600 3" thread, clamp, flange 2*3 120
3 BJD2-4 550 1600 4" clamp, flange 2*4 160
4 BJD2-5 600 1600 4" clamp, flange 2*% 200

Ordering Guide

PRODUCT Bag Size Bag Q'ty Inlet/Outlet Connection Surface Materials
BJD 1 -#1 bag 01 - Single A- side in and side out K-coupling S- sand blasting 304
2 - #2 bag 02 - Two B- side in and bottom out F-bolt T- polished 316L
3 - #3 bag 03 - Three C- bottom in and bottom out S- thread PP
4 - #4 bag 04 - Four D- top in and bottom out How to order ?-example
5 - #5 bag 06 - Six Bag size: #1; Bag Q'ty: Single
6 - #6 bag 08 - Eight Inlet/outlet: side in and side out
7 - #7 bag 12 - Twelve Connection: coupling
X - other size Surface: sand blasting
Material: SUS304
Selection code is: BJD101AKS304

Operating Conditions(Bag Filter):

Max.Operating Pressure: 6 bar(87psi) , 10.34bar(150psi)

Max.Operating Temperature: 120°C

Applications(bag filter housing eaton replacement):

Processing Chemicals Paints,Inks,Coolants
Oils,Edible Oils, Vegetable Oils Pharmaceuticals
Sugar Syrup Cleaning Fluids

SFFILTECH Multi Bag Filter Housing Stainless Steel Material CE Certified
