Prefiltarion System

Prefiltration protects treatment processes from contaminants entering from outside the system. It also prevents particles released by treatment equipment from harming downstream processes, including other filters. You can get more detail about system prefilters by contacting with us, or go to the product detail explanation at the follow of this page to explore specific filter options. In general, particle filtration and prefiltration remove particles larger than 1 micron.

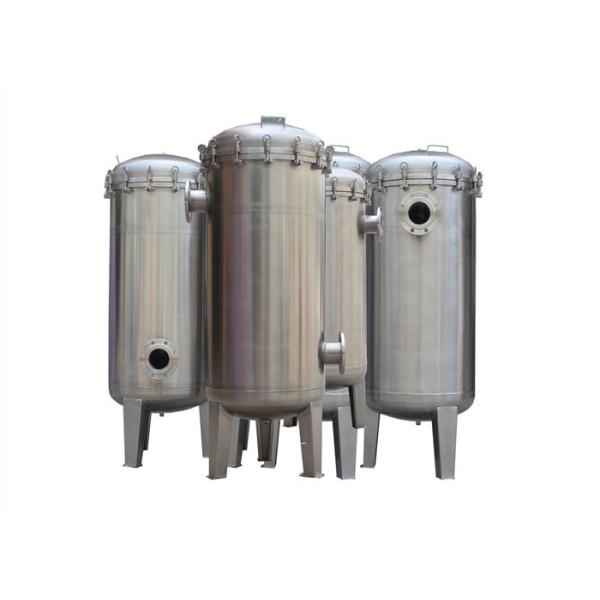

What is Bag Filter Housing

Bag filter system is designed for optimum filtration performance. Its range provides filtration solution for a broad variety of fluid applications in the process industry. They are particularly useful for filtering large volumes of high viscosity liquids. Bag filter is constructed of filter housing, filter bags, internal cage to support bags, positive sealing arrangement, & choice of end connections. The internal support ensures bags will not burst as high differential pressures build up during operation. Bag filter is used as prefiltration for most of application.

How Does Bag Filter Housing Work ?

Bag filters are often the best choice for many industrial applications. These types of filters use a wide range of filtration media based on the application, such as activated carbon, needle felt, and nylon monofilament mesh. These bag filters operate by trapping waste solids inside the bag and are considered to be a relatively low-cost form of industrial filtration. when water pass in bag filter housing passing from spcial bags and this bag does not allow the particles.

How do I know Which Size Housing to Buy ?

Some questions may arise when choosing between a single bag filter or a multi-bag filter. A multi-bag filtration system will most commonly be used in higher flow rate applications, and can contribute to increasing the time between bag changes. The CK-2 multi-bag filter housing is available for flow rates up to 1200 gpm, and CK-3 housings can process flow rates as high as 2300 gpm. A low profile provides easy access, and spring balanced lids can be opened with just one hand. A single-bag filter option is typically used for lower flow rates.
Of course, every application is unique and we want to make sure you find the exact solution that you are looking for, so reach out to CHUNKE professional and ask all the questions you have to find your industrial water filtration solution.

Material for Bag Filter Housing ?

We have different material for different application. Before choosing bag filter houding and bag please contact with Professional CHUNKe technical service.

For Bag Filter Housing:
1. U-PVC
2. SS 304
3. SS316
4. SS316L

For Filter Bag:
1. PE/PP/PTFE: 0.5, 1, 3, 5, 10, 25, 50, 100, 200um
2. Nylon: 25,50,80,100,125,150,200,250,300,400,600,800um(20-600 Mesh)
3. Efficient Multi-Layer

Application

Solvents, Paints
Edible Oils
Petrochemicals
Water
Waste Water
Chemicals
Metal
Automotive
Electronics
Food and Beverage

Advantage

High flow rates, Low pressure drop
High dirt holding capacity
Positive sealing arrangement to avoid bypassing
Suitable for PP Collar, Rigid Ring & Snap Band Bags
Quick opening Tri Clovers & Fly nut design
Easy to operate & low maintenance
Low down time
Flow rate up to 2000 m3/hr & More
Customized design available
Large-area, heavy-duty baskets
Housings are permanently piped
Covers are O'-Ring sealed
