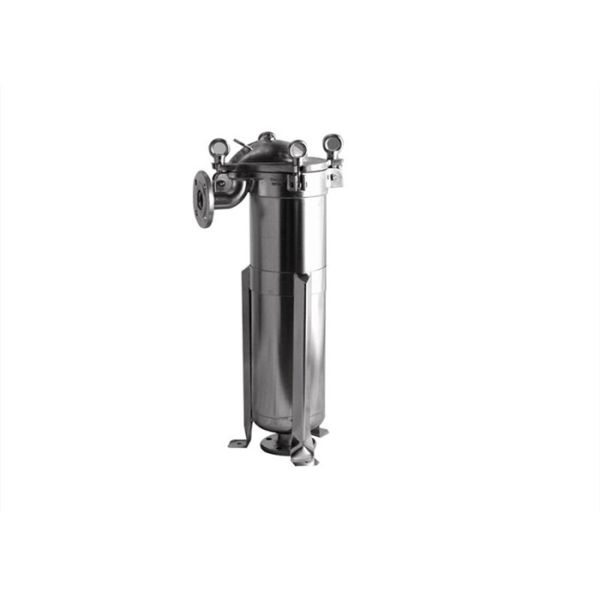

Easy Operate Sanitary Bag Filter Housing , Liquid Filter Housings With PTFE Bag Material
Easy Operate Sanitary Bag Filter Housing , Liquid Filter Housings With PTFE Bag Material
Specifications
Brand Name :
SFFILTECH
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000pcs per month
Delivery Time :
20-30 days
Packaging Details :
wooden case
Name :
Sanitary liquid stainless steel bag filter housing
Material Of Bag: :
PTFE
Working medium: :
Liquid
Working pressure: :
<0.5MPa
Filter housing material: :
SS304,SS316L
Filter rating: :
0.6-1000μm
Description

Sanitary liquid stainless steel bag filter housing

Model Filter bag# Filter bag Qty Firltration area(m²) Connection Max. Flow (m³/h)
NA-1D 1# 1 0.25 DN50 15
NA-2D 2# 1 0.5 DN50 35
NA-2P2S 2# 2 1 DN50-DN100 70
NA-3P2S 2# 3 1.5 DN80-DN100 100
NA-4P2S 2# 4 2 DN80-DN150 140
NA-5P2S 2# 5 2.5 DN80-DN150 175
NA-6P2S 2# 6 3 DN80-DN150 210
NA-7P2S 2# 7 3.5 DN80-DN150 245
NA-8P2S 2# 8 4 DN100-DN200 280
NA-10P2S 2# 10 5 DN150-DN200 350
NA-12P2S 2# 12 6 DN150-DN250 420
NA-14P2S 2# 14 7 DN200-DN250 490
NA-16P3S 2# 16 8 DN200-DN300 560
NA-18P4S 2# 18 9 DN250-DN350 630
NA-20P5S 2# 20 10 DN250-DN400 700
NA-22P6S 2# 22 11 DN300-DN450 770
NA-24P7S 2# 24 12 DN350-DN450 840

Technical parameter

Model Maximum flow(T/H) Fillration area(m²) Design pressure(Mpa)
ST-2D 10 0.5 0.6-1.6
ST-1D 20 0.25 0.6-1.6

NPS/in 0.3 0.5 0.8 1.0 1.2 1.5 2.0 2.5 3.0 4.0 6.0
DN/mm 6 15 20 25 32 40 50 65 80 100 150
NPS/in 8.0 10.0 12.0 14.0 16.0 18.0 20.0 24.0 36.0 42.0 48.0
DN/mm 200 250 300 350 400 450 500 600 900 1000 1200
