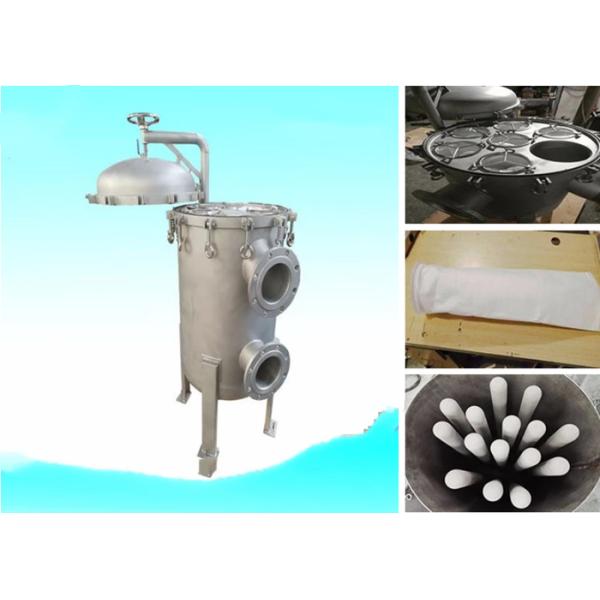

304 Stainless Steel Liquid Bag Filter Housings , Multi Bag Filter Housing
304 Stainless Steel Liquid Bag Filter Housings , Multi Bag Filter Housing
Specifications
Brand Name :
SFFILTECH
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000pcs per month
Delivery Time :
20-30 days
Packaging Details :
wooden case
Name :
304 Stainless Steel Liquid Multi Bag Filter Housing
Theoretical Flow: :
0--800m3
Filtration Pressure: :
0.5--1.5MPa
Ring of Filter Bag: :
PP/PE/Steel
Filtration Precision: :
0.5--200um
Surface Treatment: :
Mirror Polishing/Sandblasting
Description

304 Stainless Steel Liquid Multi Bag Filter Housing

Multi Bag Filter

1. Bag filter types: single bag filter, multi bag filter. There insulation jacket with filters, duplex filters,filter carts move for selected customers.

2. Single bag filter model: the 1st filter, the 2nd filter, the 3rd filter , the 4th filters, the 5th filter.

3. Single bag filter forms: side-in, top-in, little traffic.

4. Multi-bag filter Model: 2,3,4,5,6 bags.

5. Multi-bag filter forms: boom-style, low boom, horizontal, double-intrusive

6. Material: Stainless steel SUS304, SUS316

Product Parameters
Name
Type of filter bag
#1 / #2 / # 3/ #4 /#5
Number of filter bag
From 2 pieces of bags to 24 pieces of bags for your choice
Material of filter bag
PP,PE,PTFE,nylon,weaving
Filtering pressure
0.5---1.6MPA
Filtering temperature
200 degrees
Filtering rating
0.5μm-------200μm
Filtering area
0.2----20M2
Theoretical flow
0---100M3/H
Inlet/outlet pipe
2---10 inches
Material of filter housing
304/316/316L
Surface treatment of housing
Polishing/Sand blasting/Painting (Carbon steel)

304 Stainless Steel Liquid Bag Filter Housings , Multi Bag Filter Housing
