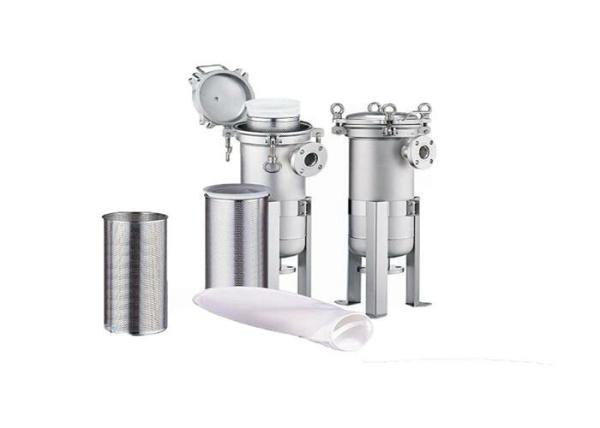

304/316 Stainless Steel Bag Filter Housing , Liquid Bag Filter Housings For Liquid
304/316 Stainless Steel Bag Filter Housing , Liquid Bag Filter Housings For Liquid
304/316 Stainless Steel Bag Filter Housing , Liquid Bag Filter Housings For Liquid
304/316 Stainless Steel Bag Filter Housing , Liquid Bag Filter Housings For Liquid
Specifications
Brand Name :
SFFILTECH
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
100000pcs per month
Delivery Time :
20-30 days
Packaging Details :
wooden case
Name :
ss304/316 Stainless steel bag liquid bag filter housing for liquid
Application :
water treatment
Material :
SS304, 316, 316L
QTY of Cartridge :
1,2,3,4, 5,6,8,9,10,12,16,18
Design Pressure :
220 psi
Surface Finish :
ACID-washing, Electrolyze, Polishing
Description

ss304/316 Stainless steel bag filter housing ,high quality stainless steel liquid bag filter housing for liquid

♦ Part one: Frotec Filter Housing Description

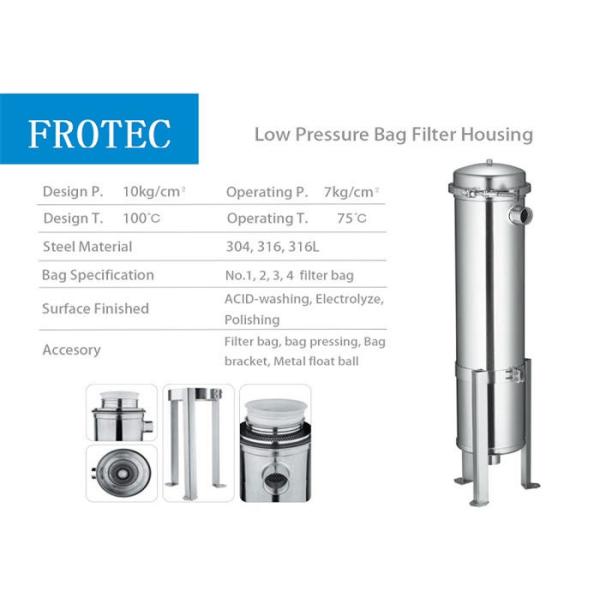

1.Brief introduction and Technical Specification

This item mainly composed of filter bag , shell, support rack and fixture and measuring device. The fluid flows from the filter entrance into filter cartridge with miscellaneous quality piece retained on the surface or deep in ,while purified fluid runs off from the outlet. Filter adopt clamps, ordinary flange, fast shackle bolt to lock ears. with female or sanitary clamp connect with the top cap, which usually install the gauge or platoon air valve, the inlet /outlet are connected with flange, silk thread and sanitary clamp.

2. Product Show

304/316 Stainless Steel Bag Filter Housing , Liquid Bag Filter Housings For Liquid304/316 Stainless Steel Bag Filter Housing , Liquid Bag Filter Housings For Liquid

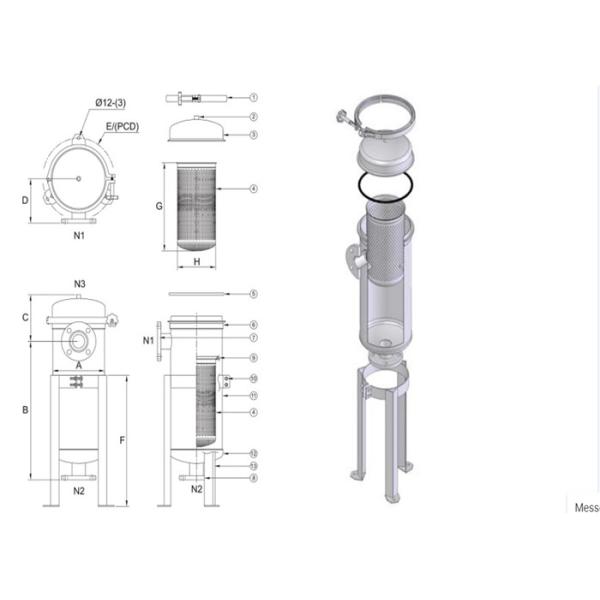

No. Name No. Name
1 Clamp 8 Port outlet
2 Vent 9 Filter bag plate
3 Top cover 10 Bolt
4 Basket 11 Shell
5 O-ring 12 Bottom cover
6 Shell flange 13 Support leg
7 Port inlet

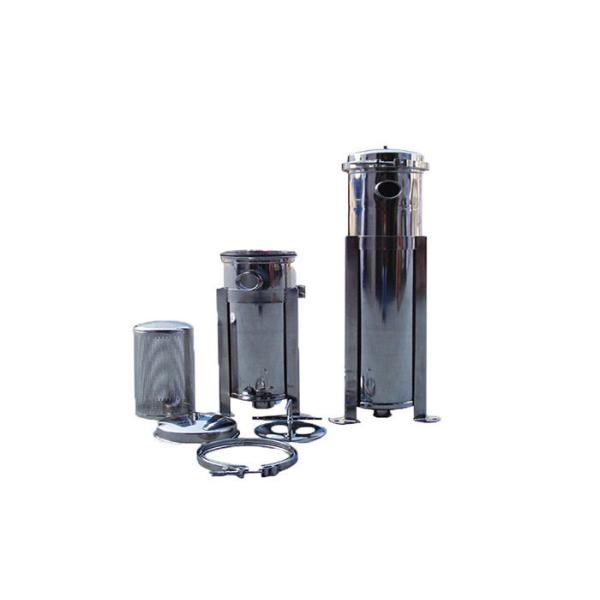

SBS-1 Series - Single Bag Style (Union Closure)

Material: SUS304L, SUS316L

Max working pressure:100PSI

Making method: Polished or sandblast

Model

B

mm

G

mm

B+C

mm

A

mm

Inlet/outlet
SBS-A 500 380 700 200 1"-3"
SBS-B 700 720 1050 200 1"-3"
SBS-C 350 190 400 114 3/4"-2"
SBS-D 500 340 540 114 3/4"-2"

3. Application

• Prefiltration of RO,Pretreatment of sea water desalination

• Bottled water, high Fructose,edible oil,soft drinks

• API, solvents,and water filtration in BioPharm market

• Paints and coatings,Petrochemical,Refineries

• Microelectronics

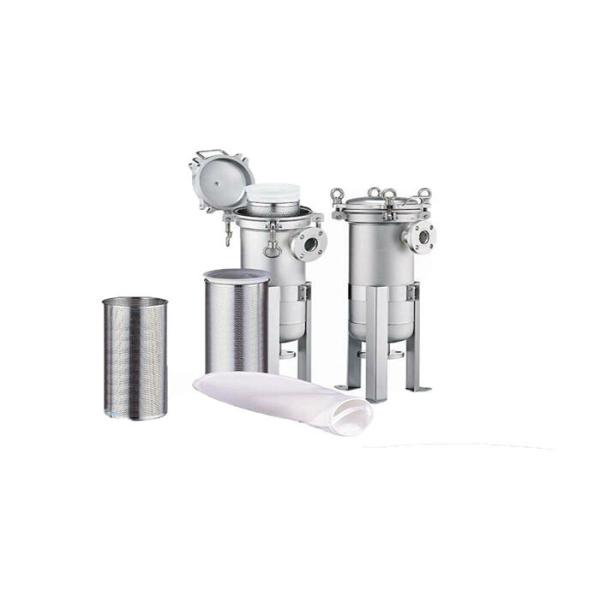

304/316 Stainless Steel Bag Filter Housing , Liquid Bag Filter Housings For Liquid304/316 Stainless Steel Bag Filter Housing , Liquid Bag Filter Housings For Liquid
